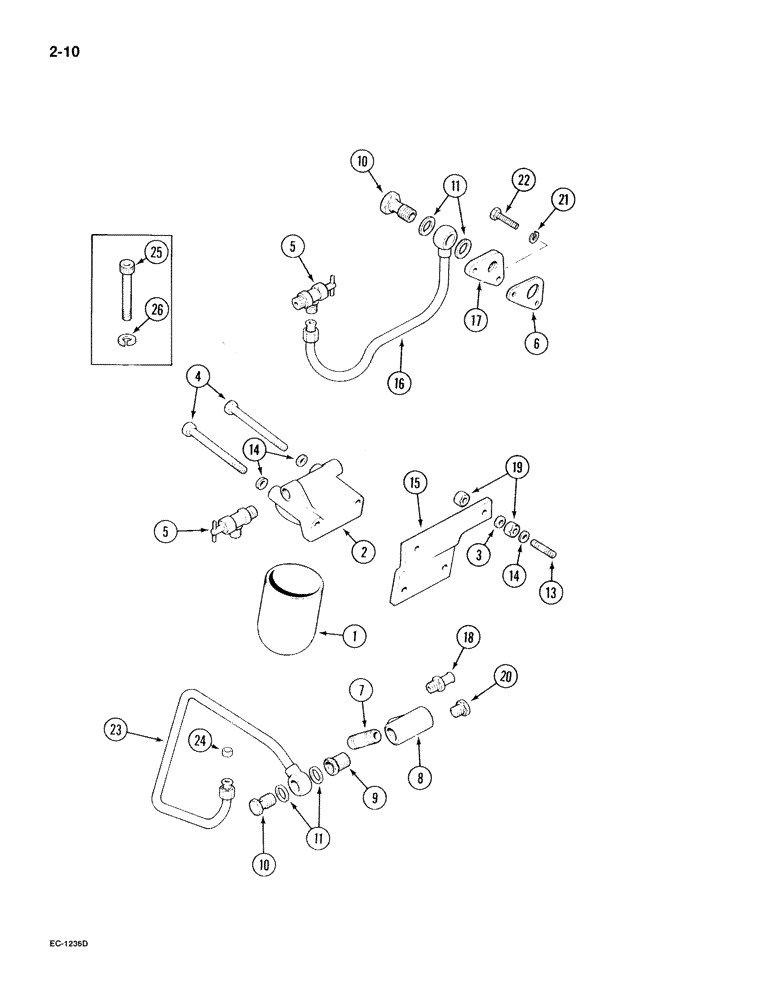

Запчасти Case IH 395 (2-010) - COOLANT FILTER (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1
A151931
FILTER
AND GASKET KIT - coolant
1шт.
2
1800029C1
HEAD
- coolant filter (Shown), Serial Range: -JJE0027660
1шт.
2
A152821
HEAD
- coolant filter, Start Serial: JJE0027660
1шт.
3
25534R1
WASHER
- hardened, 0.406 x 0.812 x 0.065 inch
2шт.
4
13-664
BOLT,Hex, 3/8" - 16 x 4", Gr 5
2шт.
5
121894C1
FAUCET,3/8" - 18 NPTF x 5/8" - 24
VALVE - shut off
2шт.
6
3055306R2
GASKET
- manifold, water collecting
1шт.
Part of cylinder head gasket service kit
1шт.
7
191032
PIPE,Nipple, 1/2" NPT x 1 1/2", Brass
ADAPTER - pipe, long, 1/2 NPT x 1-1/2 inch
1шт.
8
144085
TEE,1/2" NPT, Fem
- 1/2 inch pipe
1шт.
9
444034
REDUCER,1/2"-14 NPTF x 3/8"-18 Fem NPTF
BUSHING - reducer, 1/2 to 3/8 inch dryseal taper
1шт.
10
930241R1
BANJO BOLT,M16 x 1.5 x 36mm
SCREW - hollow, 16 mm
2шт.
11
933155R1
SEALING RING,M16 x 20 x 1.5
4шт.
13
3228188R1
STUD
- exhaust manifold
2шт.
14
95-81080
WASHER,13/32" x 3/4" x .120"
- flat, 0.406 x 0.75 x 0.105 inch
4шт.
15
1329062C1
SUPPORT
BRACKET - coolant filter (Shown), Serial Range: -JJE0027660
1шт.
15
3228211R1
SUPPORT
BRACKET - coolant filter, Start Serial: JJE0027660
1шт.
16
1329064C91
PIPE
- coolant filter outlet, Serial Range: -JJE0027660
1шт.
16
3228212R1
PIPE - coolant filter outlet, Start Serial: JJE0027660
1шт.
17
3218396R2
FLANGE
PLATE - cover
1шт.
19
425-116
NUT,3/8" - 24, Gr 5
- hex, 3/8 inch NF
4шт.
20
444630
PLUG,Hex Hd, 1/2"-14
- pipe, hex head
1шт.
22
413-514
BOLT,Hex, 5/16" - 18 x 7/8", Gr 5
2шт.
23
1329009C91
PIPE
- coolant filter inlet
1шт.
24
3228191R1
SEALING WASHER
SLEEVE - coupling
1шт.
25
61-33820
HEX SOC SCREW,3/8"-16 x 1 1/4"
BOLT - hex socket head, 3/8 NC x 1-1/4 inch, Start Serial: JJE0027660
4шт.
26
3050221R1
LOCK WASHER
- lock, 3/8 inch, Start Serial: JJE0027660
4шт.
REF
INSTRUCTION
KIT - service, cylinder head gaskets, Includes: Ref. 6 (See Figure 2-054)
1шт.
Выбрано товаров: 29
