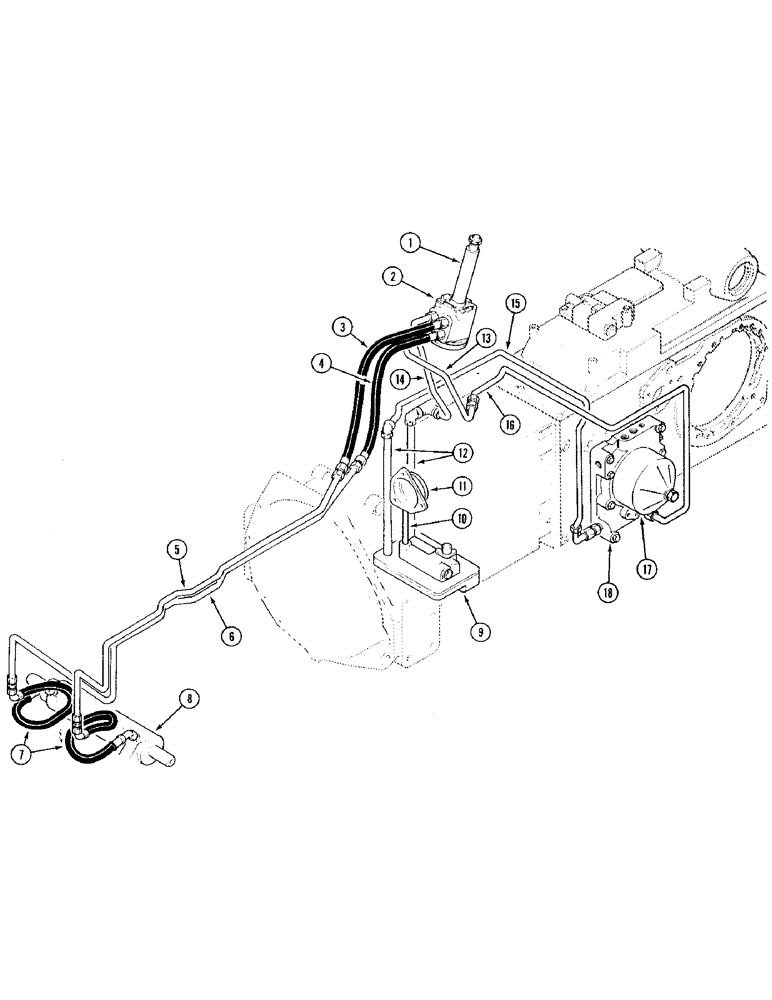

Запчасти Case IH 395 (1-018) - PICTORIAL INDEX, POWER STEERING SYSTEM, FORWARD AND REVERSE TRANSMISSION (00) - PICTORIAL INDEX

1

Steering Shaft Assembly, Page 5-3

1шт.

2

Integral Power Steering Valve, Pages 5-3, 17

1шт.

3

Left Turn Steering Hose, Page 5-5

1шт.

4

Right Turn Steering Hose, Page 5-5

1шт.

5

Left Turn Steering Tube, Page 5-5

1шт.

6

Right Turn Steering Tube, Page 5-5

1шт.

7

Power Steering Cylinder Hoses, Page 5-5

1шт.

8

Power Steering Cylinders, Pages 5-5, 19

1шт.

9

Pressure Regulator Valve and Plate, Pages 8-13, 21

1шт.

10

Oil Inlet Tube, Page 8-13

1шт.

11

IPTO and Clutch Retaining Cage, Page 6-23

1шт.

12

Oil Return Tubes, Page 8-13

1шт.

13

Forward Power Steering Pressure Tube, Page 5-13

1шт.

14

Forward Power Steering Return Tube, Page 5-13

1шт.

15

Rear Power Steering Return Tube, Page 5-13

1шт.

16

Rear Power Steering Pressure Tube, Page 5-13

1шт.

17

Hydraulic Oil Filter, Page 8-13

1шт.

18

Multiple Control Valve, Pages 8-7, 9

1шт.
