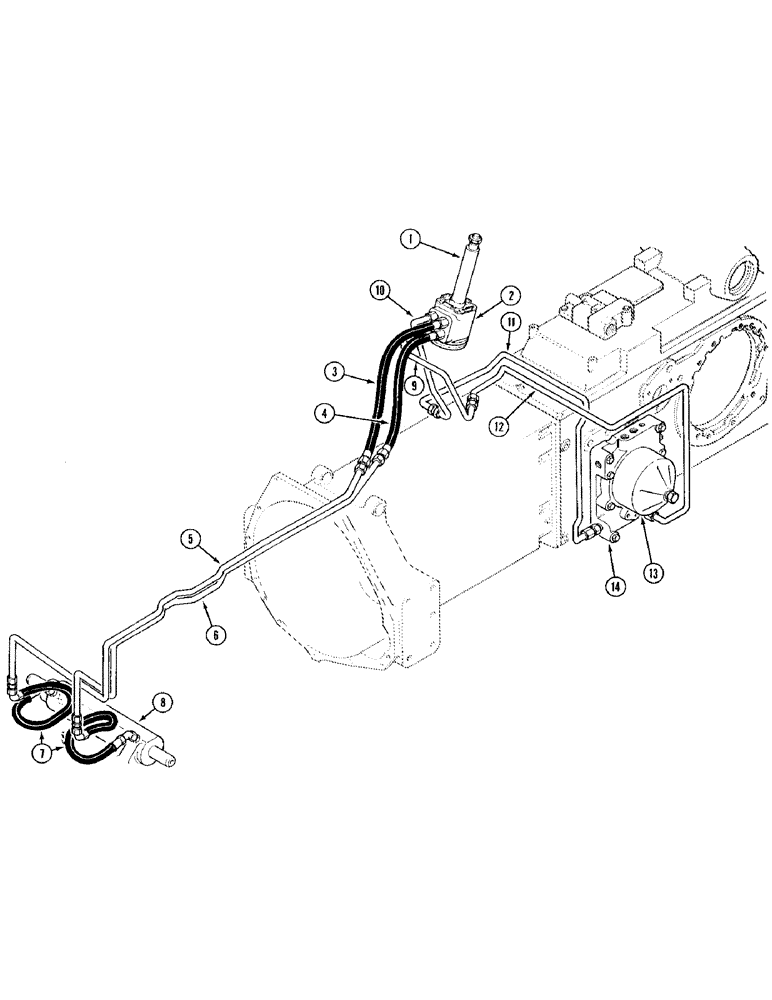

Запчасти Case IH 395 (1-012) - PICTORIAL INDEX, POWER STEERING SYSTEM, WITHOUT 2 SPEED POWER SHIFT (00) - PICTORIAL INDEX

1

Steering Shaft Assembly, Page 5-3, 2WD

1шт.

2

Integral Power Steering Valve, Pages 5-3, 17, 2WD

1шт.

3

Left Turn Steering Hose, Page 5-5, 2WD

1шт.

4

Right Turn Steering Hose, Page 5-5, 2WD

1шт.

5

Left Turn Steering Tube, Page 5-5, 2WD

1шт.

6

Right Turn Steering Tube, Page 5-5, 2WD

1шт.

7

Power Steering cylinder Hoses, Page 5-5, 2WD

1шт.

8

Power Steering cylinders, Pages, 5-5, 19, 2WD

1шт.

9

Forward Power Steering Pressure Tube, Page 5-9, 2WD

1шт.

10

Forward Power Steering Return Tube, Page 5-9, 2WD

1шт.

11

Rear Power Steering Return Tube, Page 5-9, 2WD

1шт.

12

Rear Power Steering Pressure Tube, Page 5-9, 2WD

1шт.

13

Hydraulic Oil Filter, Page 8-3, 2WD

1шт.

14

Multiple Control Valve, Pages 8-7, 9, 2WD

1шт.

1

Steering Shaft Assembly, Page 5-3, dog clutch MFD tractor

1шт.

2

Integral Power Steering Valve, Pages 5-3, 17, dog clutch MFD tractor

1шт.

3

Left Turn Steering Hose, Page 5-7, dog clutch MFD tractor

1шт.

4

Right Turn Steering Hose, Page 5-7, dog clutch MFD tractor

1шт.

5

Left Turn Steering Tube, Page 5-7, dog clutch MFD tractor

1шт.

6

Right Turn Steering Tube, Page 5-7, dog clutch MFD tractor

1шт.

7

Power Steering Cylinder Hoses, Page 5-7, dog clutch MFD tractor

1шт.

8

Power Steering Cylinder, Pages 5-45, 49, dog clutch MFD tractor

1шт.

9

Forward Power Steering Pressure Tube, Page 5-9, dog clutch MFD tractor

1шт.

10

Forward Power Steering Return Tube, Page 5-9, dog clutch MFD tractor

1шт.

11

Rear Power Steering Return Tube, Page 5-9, dog clutch MFD tractor

1шт.

12

Rear Power Steering Pressure Tube, Page 5-9, dog clutch MFD tractor

1шт.

13

Hydraulic Oil Filter, Page 8-3, dog clutch MFD tractor

1шт.

14

Multiple Control Valve, Pages 8-7, 9, dog clutch MFD tractor

1шт.
