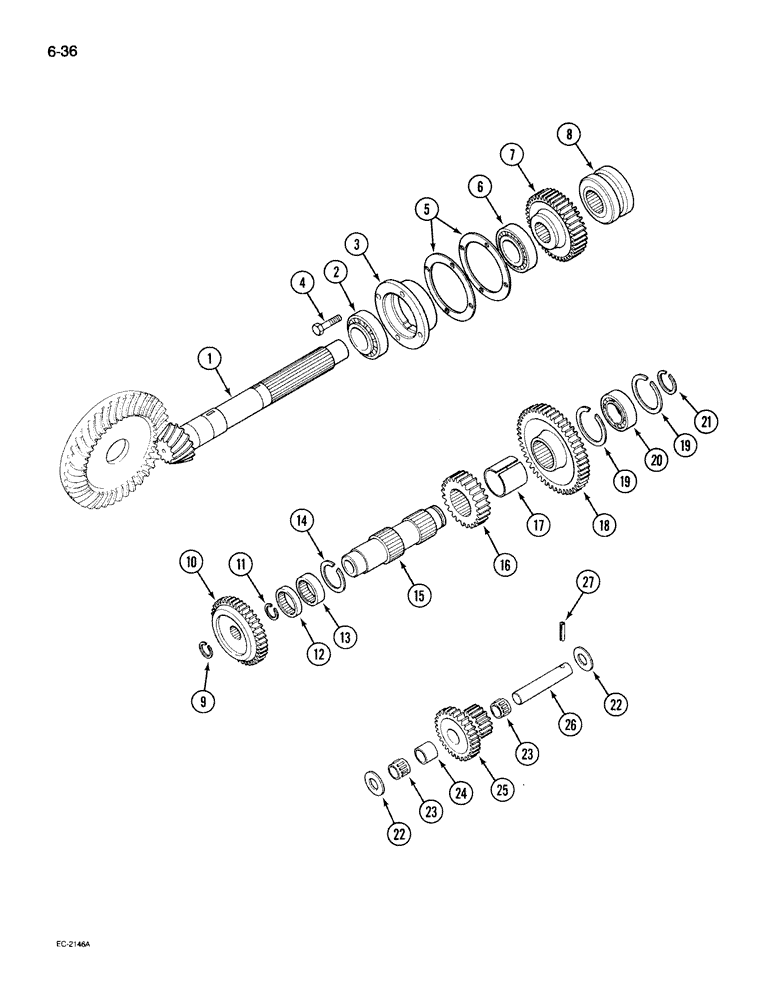

Запчасти Case IH 395 (6-036) - RANGE TRANSMISSION, 2 WHEEL DRIVE TRACTOR (06) - POWER TRAIN

1

99449C1

GEAR, BEVEL

GEAR - bevel, with matched shaft, 12/53 teeth

1шт.

2

399823R91

BEARING ASSY,2.187" ID x 3.8437" OD x 0.9745, 0.7656"

ASSEMBLY - main shaft rear

1шт.

2

399824R91

ROLLER BEARING

BEARING ASSEMBLY -, Serial Range: (Optional-399823R91)

1шт.

2

1502181C91

BALL BEARING

ASSEMBLY -, Serial Range: (Optional-399823R91)

1шт.

3

399825R2

BALL RACE

CAGE - bearing, main shaft

1шт.

4

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

4шт.

65423C1

SHIM KIT

KIT - service, shims, main shaft bearing cage, Includes: Ref. 5

1шт.

5

NSS

NOT SOLD SEPARAT

SHIM - 0.004 inch

2шт.

5

NSS

NOT SOLD SEPARAT

SHIM - 0.007 inch

5шт.

6

399821R91

BEARING ASSY,2.125" ID x 3.8125" OD x 0.8328"

ASSEMBLY - main shaft front

1шт.

6

399822R91

ROLLER BEARING

BEARING ASSEMBLY -, Serial Range: (Optional-399821R91)

1шт.

7

1286470C1

GEAR

- sliding, forward/reverse, 42 teeth

1шт.

8

1277137C1

COLLAR ASSY.

COLLAR - high speed shift

1шт.

9

533266R1

RING, SNAP

RING - retaining, external, 0.98 inch

1шт.

10

94404C1

PINION

GEAR - pump drive, 55 teeth

1шт.

11

399837R1

SNAP RING,#118, 1.121", Ext

RING - retaining, external, 1.121 inch

1шт.

12

527747R91

BEARING, NEEDLE

BEARING - needle, pump drive gear

1шт.

12

362251R91

BEARING, NEEDLE,Needle, 47.62mm ID x 57.15mm OD x 12.57mm W

BEARING - needle, Serial Range: (Optional-527747R91)

1шт.

13

158187C91

NEEDLE BEARING,47.62mm ID x 57.15mm OD x 25.27mm W

BEARING - needle, countershaft

1шт.

14

398264R1

SNAP RING,#215, 2.026", Ext

RING - retaining, external, 2.026 inch

1шт.

15

94403C1

SHAFT

- counter, range transmission

1шт.

16

103150C1

PINION

GEAR - driving, lo range, 24 teeth

1шт.

17

399835R1

BUSHING

- countershaft gears

1шт.

18

404097R1

GEAR

- constant mesh, 46 teeth

1шт.

19

399832R1

RING, SNAP

RING - retaining, countershaft bearing

2шт.

20

G10418

BEARING, BALL

BEARING - ball, transmission countershaft

1шт.

20

69843C91

BALL BEARING,49.994 mm ID x 79.994 mm OD x 15.94 mm

BEARING - ball (Optional to G10418)

1шт.

20

71069C91

BALL BEARING,50 mm ID x 80 mm OD x 16 mm

BEARING - ball (Optional to G10418)

1шт.

20

360635R91

BEARING, BALL

BEARING - ball, Serial Range: (Optional-G10418)

1шт.

20

528101R91

BEARING, BALL

BEARING - ball, Serial Range: (Optional-G10418)

1шт.

20

528102R91

BEARING, BALL

BEARING - ball, Serial Range: (Optional-G10418)

1шт.

20

3047867R91

BEARING, BALL

BEARING - ball, Serial Range: (Optional-G10418)

1шт.

20

3069304R91

BALL BEARING

BEARING - ball, Serial Range: (Optional-G10418)

1шт.

21

A27089

SNAP RING,2.36mm Thk, Ext

RING - retaining

1шт.

22

3112846R1

THRUST WASHER

WASHER - thrust

2шт.

23

3069773R91

NEEDLE BEARING

BEARING - needle, reverse idler gear

2шт.

23

A58077

ROLLER BEARING,25.395 mm ID x 33.3578 mm OD x 25.21 mm

BEARING - needle (Optional to 3069773R91)

2шт.

24

3112845R1

SPACER

- idler bearing

1шт.

25

1975490C1

GEAR

- reverse idler, 20/24 teeth

1шт.

26

399838R3

SHAFT

- reverse idler

1шт.

27

366281R1

PIN,3/8" x 2", Coiled

1шт.
