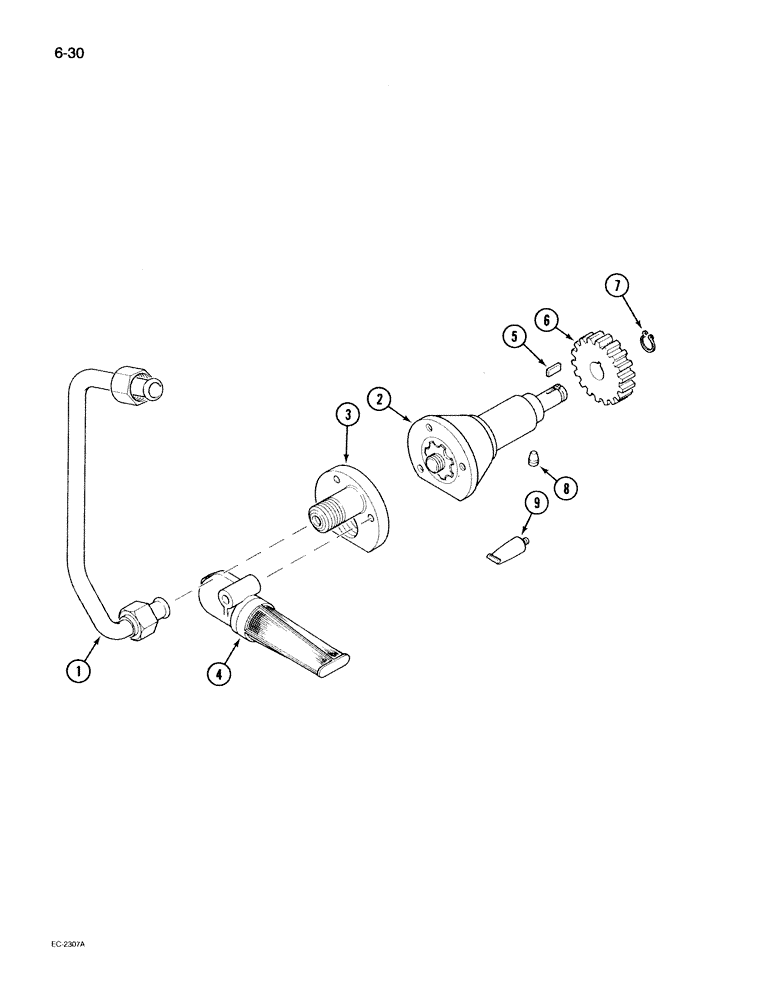

Запчасти Case IH 395 (6-030) - REAR FRAME, TRANSFER OIL PUMP (06) - POWER TRAIN

1

527423R1

PRESSURE PIPE

PIPE - transfer pump outlet

1шт.

2

3123726R92

PUMP, HYDRAULIC

PUMP ASSEMBLY - oil transfer, Includes: Ref. 3 and 4

1шт.

3

3123727R1

PLATE

- end

1шт.

4

1282191C2

STRAINER ELEMENT

STRAINER - pump

1шт.

5

529100R1

BUCKET TOOTH KEY

KEY - transfer pump driven gear

1шт.

6

528095R1

PINION

GEAR - transfer pump driven, 21 teeth

1шт.

7

3042123R1

RING, SNAP

RING - retaining, driven gear

1шт.

8

527424R1

SCREW

- pump retaining

2шт.

9

69351C1

GLUE

FLUID - adhesive, 1 oz tube

1шт.
