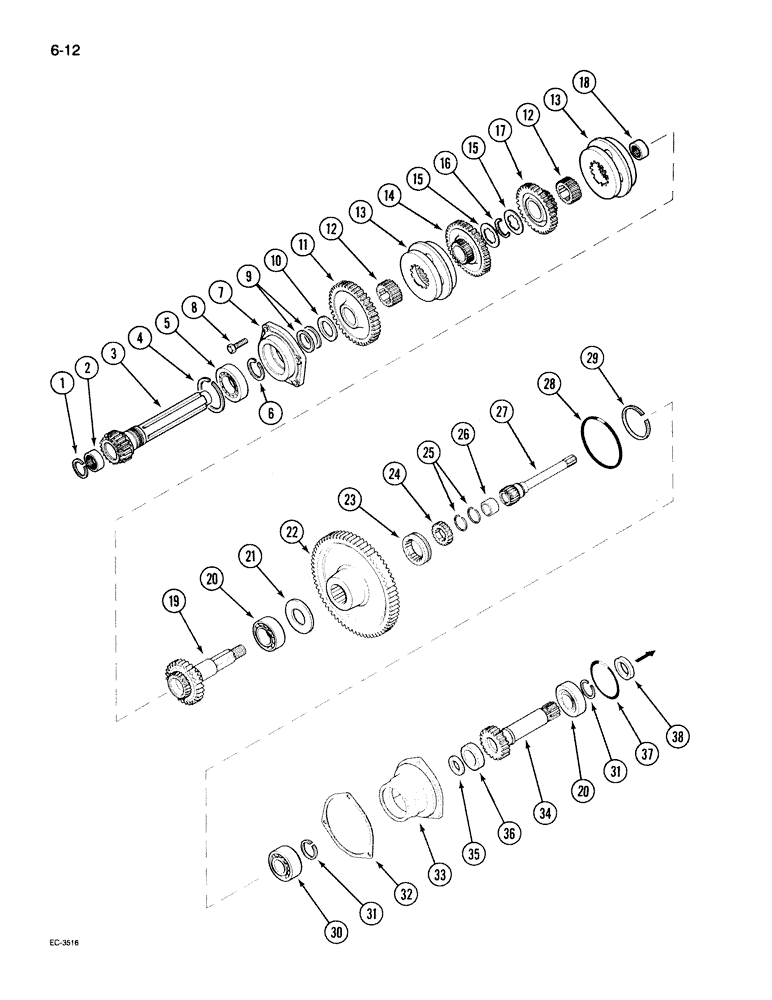

Запчасти Case IH 395 (6-012) - SPEED TRANSMISSION, WITH CREEPER (06) - POWER TRAIN

1

66014C1

SNAP RING

RING - snap

1шт.

2

613639C91

NEEDLE BEARING,38.09mm ID x 47.65mm OD x 25.4mm W

- needle

1шт.

3

65258C1

SHAFT

- main, speed transmission

1шт.

4

A32422

SNAP RING,2.36mm Thk, Int

RING - snap

1шт.

5

20161D

BEARING, BALL,50 mm ID x 90 mm OD x 20 mm

BEARING - ball (For optional bearings see Figure 6-008)

1шт.

6

A27089

SNAP RING,2.36mm Thk, Ext

RING - snap

1шт.

7

534411R1

BEARING ASSY

CAGE ASSEMBLY - main shaft bearing

1шт.

8

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

9

404281R1

RING,Locking, 46.08mm ID x 50.8mm OD x 2.37mm Thk

- sealing, mainshaft lubrication line

2шт.

10

398332R1

WASHER

- mainshaft bearing cage

1шт.

11

398331R2

PINION

GEAR - 1st speed driven, 41 teeth

1шт.

12

398325R1

HUB

- speed shift, 1st and 2nd

2шт.

13

65793C2

SYNCHRONIZER

- with cups

2шт.

14

398330R3

PINION

GEAR - 2nd speed driven, 33 teeth

1шт.

15

398328R2

THRUST WASHER

WASHER - thrust, main shaft

2шт.

16

398329R1

CIRCLIP

RING - snap, synchronizer locating

1шт.

17

398327R3

PINION

GEAR - 4th speed driven, 24 teeth

1шт.

18

531168R91

BEARING, NEEDLE,Needle, 34.91mm ID x 44.44mm OD x 15.88mm W

BEARING - needle

1шт.

19

1343158C1

SHAFT

- creep speed, 28 teeth

1шт.

20

67653C91

BEARING

- ball

2шт.

20

65354C91

BALL BEARING

BEARING - ball, Serial Range: (Optional-67653C91)

2шт.

20

1502094C91

BALL BEARING,44.9945 mm ID x 84.9945 mm OD x 18.94 mm

- ball (Optional to 67653C91)(Order ST342)

2шт.

21

1343162C1

THRUST WASHER

- thrust

1шт.

22

1343155C3

GEAR

- driven, 67 teeth

1шт.

23

1343159C3

COLLAR

- shift

1шт.

24

1343160C3

HUB

- shift sleeve

1шт.

25

1343169C1

SNAP RING

RING - retaining

2шт.

26

1343168C1

BEARING, NEEDLE

BEARING - needle

1шт.

26

1349002C1

BEARING, NEEDLE

BEARING - needle, Serial Range: (Optional-1343168C1)

1шт.

27

1343153C4

SHAFT

- clutch

1шт.

28

238-6252

O-RING,0.139" Thk x 5.234" ID, -252, Cl 6, 90 Duro

1шт.

29

163648C1

SNAP RING,#334, 3.590", Int

RING - retaining, internal, 3.59 inch

1шт.

30

1343374C1

BEARING, BALL

BEARING - ball

1шт.

30

67653C91

BEARING

- ball, Serial Range: (Optional-1343374C1)

1шт.

30

65354C91

BALL BEARING

BEARING - ball, Serial Range: (Optional-1343374C1)

1шт.

30

1502094C91

BALL BEARING,44.9945 mm ID x 84.9945 mm OD x 18.94 mm

- ball (Optional to 1343374C1)(Order ST342)

1шт.

31

379511R1

SNAP RING,#177, 1.657", Ext

RING - retaining, external, 1.657 inch

2шт.

32

1343292C1

SHIM

- cage

1шт.

33

1343151C1

HOUSING

CAGE - clutch shaft

1шт.

34

1342556C2

SHAFT

- IPTO drive, 21 teeth

1шт.

35

NSS

NOT SOLD SEPARAT

SEAL - oil, clutch shaft

1шт.

1277488C2

SEAL KIT

KIT - service, seals, Includes: Ref. 35 - 38, This package no longer includes 1277443C1 Metal Sleeve, removed when package was advanced to C2, must be ordered separately.

1шт.

36

NSS

NOT SOLD SEPARAT

SEAL - oil, IPTO drive shaft

1шт.

37

238-5240

O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro

1шт.

38

3129030R2

SEAL,42.8mm ID x 63.65mm OD x 7.92mm Thk

SEAL - oil, release sleeve (Order 108982C1)

1шт.
