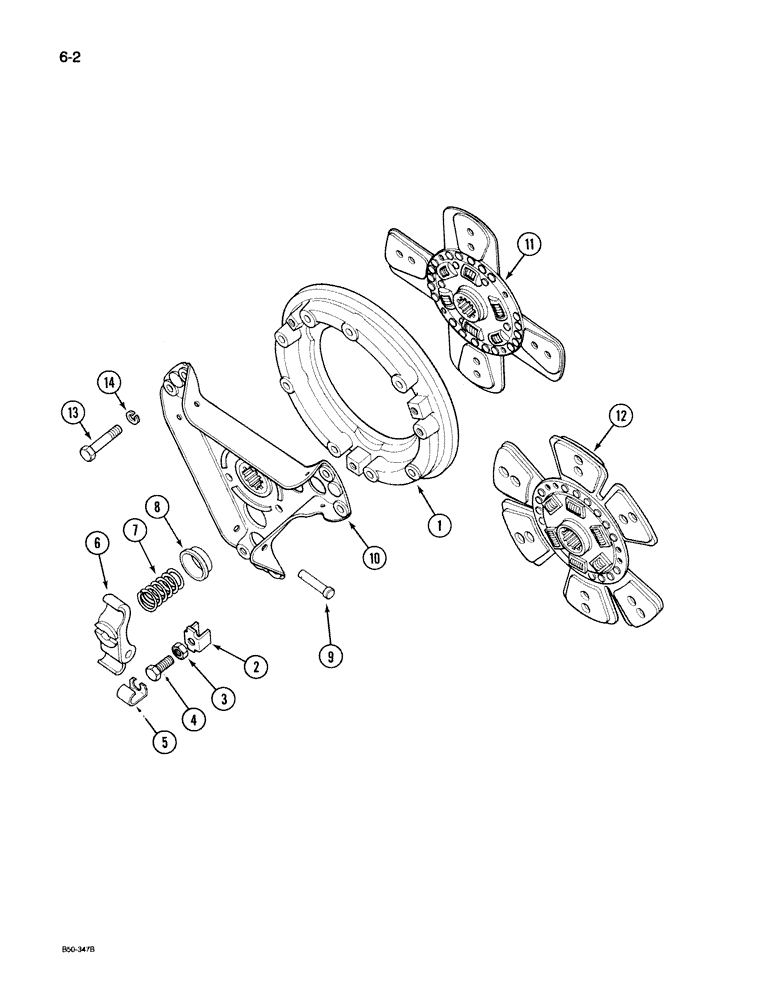

Запчасти Case IH 395 (6-002[A]) - CLUTCH, 6 PAD (06) - POWER TRAIN

1944250C2

REMAN-CLUTCH PLATE

Plate Assembly - clutch pressure, remanufactured

1шт.

1944251C1

CORE-CLUTCH PLATE

Return Number - clutch pressure plate (Use this part number to return clutch pressure plate core for credit)

1шт.

1500655C93

CLUTCH ASSEMBLY

PLATE ASSEMBLY - clutch pressure, Includes: pressure plate assembly kit and Ref. 1 - 10

1шт.

92602C92R

REMAN-CLUTCH PLATE,Pressure Plate Only

1шт.

92602C92C

CORE-CLUTCH PLATE

Return Number

1шт.

92605C1

DISC

KIT - pressure plate assembly, Includes: Ref. 1 - 10

1шт.

1

102813A1

CLUTCH, PRESSURE PLA

PLATE - pressure, 102811A1 kit (Replaced: NSS, Order kit 92605C1)

1шт.

92607C1

PACKAGE

KIT - adjusting screw and clip, Includes: Ref. 2 - 5

1шт.

2

NSS

NOT SOLD SEPARAT

CLIP - lug (Order kit 92607C1)

3шт.

3

NSS

NOT SOLD SEPARAT

LOCKNUT - adjusting screw (Order kit 92607C1)

3шт.

4

NSS

NOT SOLD SEPARAT

SCREW - adjusting (Order kit 92607C1)

3шт.

5

NSS

NOT SOLD SEPARAT

CLIP - return (Order kit 92607C1)

3шт.

6

NSS

NOT SOLD SEPARAT

LEVER - release, 102812A1, not included in Kit P/N 92605C1

3шт.

7

NSS

NOT SOLD SEPARAT

SPRING - pressure, not included in Kit P/N 92605C1

3шт.

8

NSS

NOT SOLD SEPARAT

CUP - spring, not included in Kit P/N 92605C1

3шт.

9

NSS

NOT SOLD SEPARAT

PIN - pivot, not included in Kit P/N 92605C1

3шт.

10

NSS

NOT SOLD SEPARAT

BRACKET ASSEMBLY - clutch, not included in Kit P/N 92605C1

1шт.

12

3121507R95

CLUTCH DISC

CLUTCH DISK PLATE ASSEMBLY - clutch driven disc

1шт.

12

293248A1R

REMAN-CLUTCH DISC

395, Reman For New P/N 3121507R95

1шт.

12

293248A1C

CORE-CLUTCH DISC

Return Number

1шт.

12

1944253C1

REMAN-CLUTCH PLATE

Plate Assembly - clutch driven disc, remanufactured

1шт.

12

1944254C1

DRIVEN PLATE

Return Number - clutch driven disc plate (Use this part number to return driven disc plate core for credit)

1шт.

12

293248A1R

REMAN-CLUTCH DISC

Remanufactured Clutch Disc - 11 in., 10Tooth hub, full round disc, 6 button or 3 paddle 6 button

1шт.

12

293248A1C

CORE-CLUTCH DISC

Return Number, 11 in. Disc

1шт.

13

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

BOLT, Hex, 5/16"-18 x 7/8", G5, Full Thd

6шт.

14

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.
