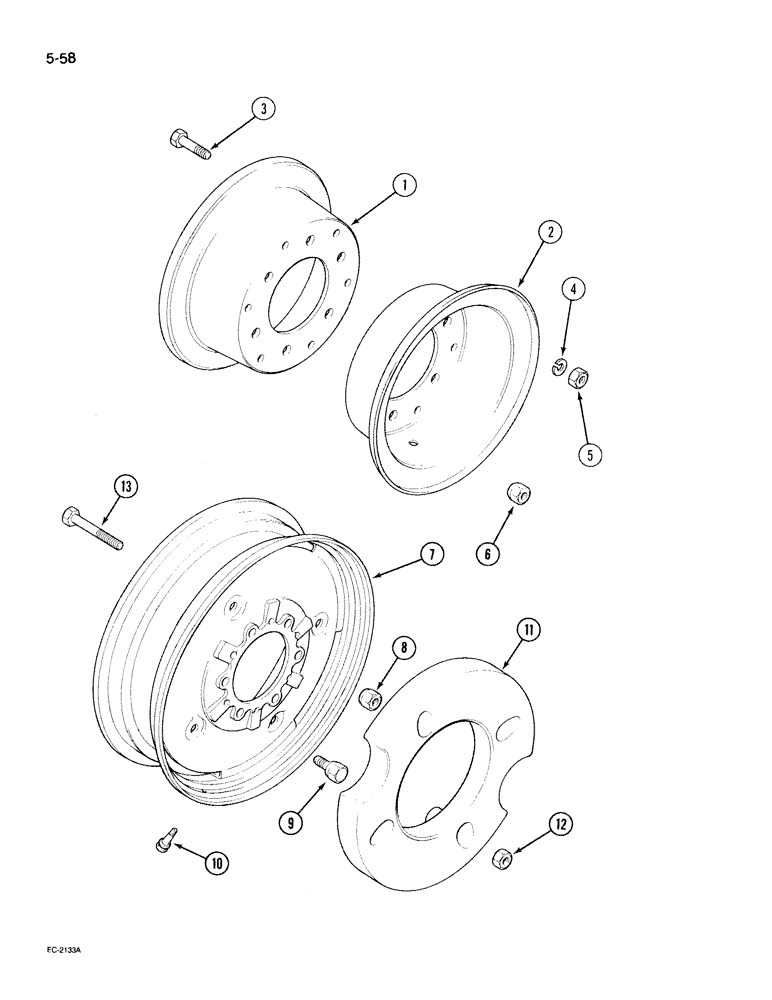

Запчасти Case IH 395 (5-058) - FRONT WHEELS, TWO WHEEL DRIVE TRACTOR (05) - STEERING

1

A143944

WHEEL

- half, 5.50-10, without valve (For 9.00 x 10 tire), 10" split wheel (10 bolt type)

2шт.

2

A143943

WHEEL

- half, 5.50-10, with valve, (For 9.00 x 10 tire)(Order A36740), 10" split wheel (10 bolt type)

2шт.

3

414-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

- hex, 1/2 NF x 1 inch, 10" split wheel (10 bolt type)

20шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , 10" split wheel (10 bolt type) 1/2"

20шт.

5

425-118

NUT,1/2"-20, G5

- hex, 1/2 inch NF, 10" split wheel (10 bolt type)

20шт.

6

483879R2

SPECIAL NUT

- wheel retaining, 10" split wheel (10 bolt type)

12шт.

7

1287905C2

WHEEL ASSY.

WHEEL ASSEMBLY - front, W8L-15 (For 26/12.00 x 12 tire), 12" disc wheel

2шт.

8

483879R2

SPECIAL NUT

- wheel retaining, 12" disc wheel

12шт.

7

614424R91

WHEEL ASSY.

WHEEL - front, 6LB-15, (For 7.50L x 15 or 7.50 x 16 tires)(Order G57007), 15" disc wheel

2шт.

7

528687R1

WHEEL

- front, W8L-15 (For 9.5L x 15, 11L x 15 or 27/9.5 x 15 Terra Rib tires), 15" disc wheel

2шт.

8

483879R2

SPECIAL NUT

- wheel retaining, 15" disc wheel

12шт.

10

387897R91

VALVE STEM

VALVE - wheel, type TR415, 15" disc wheel

2шт.

7

361714R91

WHEEL ASSY.

WHEEL - front, 4.25-16 (For 6.00 x 16 or 6.50 x 16 tires), 16" disc wheel

2шт.

7

1265032C1

WHEEL

- front, 5.50-16, (For 6.50 x 16 or 7.50 x 16 tires)(Order G57046), 16" disc wheel

2шт.

7

364343R92

WHEEL

- front, W5.50-16 (For 6.50 x 16, 7.50 x 16, 215/85R16 'C' Light Truck or 8.00 x 16 Laborer tires), 16" disc wheel

2шт.

8

483879R2

SPECIAL NUT

- wheel retaining, 16" disc wheel

12шт.

9

403538R2

WHEEL BOLT,Hex, 9/16" - 18 x 1.21"

BOLT - wheel retaining (Cast front axle), 16" disc wheel

12шт.

10

387897R91

VALVE STEM

VALVE - wheel, type TR415, 16" disc wheel

2шт.

11

370685R1

WEIGHT

- front wheel, approximately 50 lbs.

1шт.

12

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, Front wheel weights 1/2"-13, G5

1шт.

13

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

(1st position), front wheel weights Hex, 1/2"-13 x 2", G5

4шт.

13

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

- hex, 1/2 NC x 4 inch (2nd position), front wheel weights

4шт.
