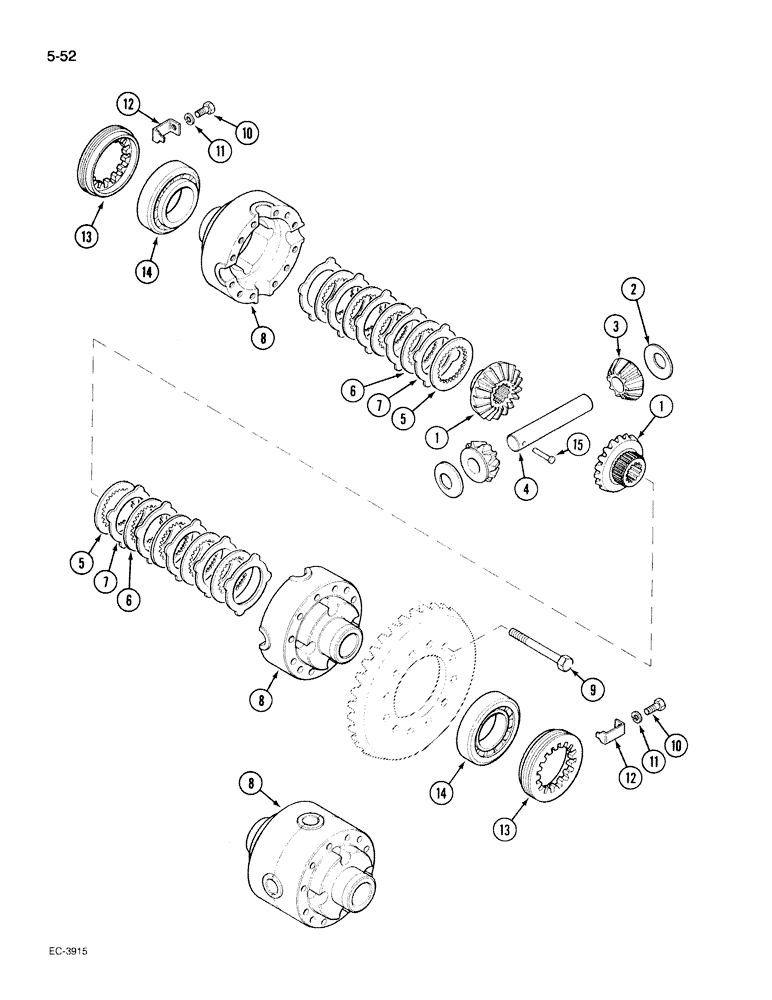

Запчасти Case IH 395 (5-052) - MECHANICAL FRONT DRIVE "CARRARO", DIFFERENTIAL (05) - STEERING

1

1537629C1

PINION

GEAR - (Order 1984942C1)

2шт.

2

K261867

WASHER

- thrust

2шт.

3

K261866

GEAR

- (Order 1966152C1)

2шт.

4

1966157C1

SHAFT

2шт.

5

K261860

PLATE

- backing (Order 1966154C1)

2шт.

6

K261863

PLATE

- driven, friction (Order 1966156C1)

8шт.

7

K261862

PLATE

- drive, friction (Order 1966155C1)

10шт.

8

100542A1

HOUSING

1шт.

9

628-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

- hex, 10 - 1.5 x 75 mm, class 10.9

12шт.

10

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

2шт.

11

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

12

1966153C1

LOCKING PLATE

PLATE - locking

2шт.

13

K261868

RING

- locking, threaded

2шт.

14

1963855C1

TAPERED BEARING,45 mm ID x 85 mm OD x 20.75 mm

BEARING

2шт.

15

932234R1

LOCK PIN,M6 x 40, Slotted

1шт.
