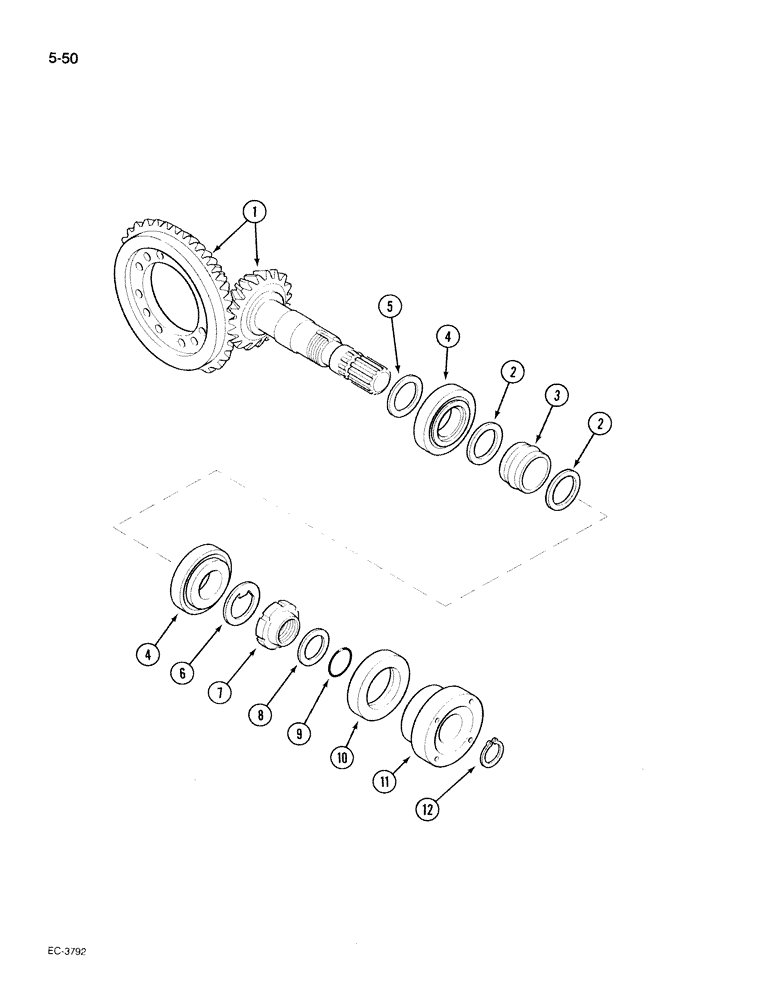

Запчасти Case IH 395 (5-050) - MECHANICAL FRONT DRIVE "CARRARO", BEVEL GEAR AND PINION SET (05) - STEERING

1

1537626C1

GEAR, BEVEL

SHAFT - with drive bevel gear 9/32 teeth

1шт.

2

1984946C1

WASHER

2шт.

3

1537627C1

SPACER

2шт.

4

3232726R91

TAPERED BEARING

2шт.

5

1966172C1

SHIM

- 2.5 mm thick

1шт.

5

1966173C1

SHIM

- 2.6 mm thick

1шт.

5

1966174C1

SHIM

- 2.7 mm thick

1шт.

5

1966175C1

SHIM

- 2.8 mm thick

1шт.

5

1966176C1

SHIM

- 2.9 mm thick

1шт.

5

1966177C1

SHIM

- 3.0 mm thick

1шт.

5

1966178C1

SHIM

- 3.1 mm thick

1шт.

5

1966179C1

SHIM

- 3.2 mm thick

1шт.

5

1966180C1

SHIM

- 3.3 mm thick

1шт.

5

1966181C1

SHIM

- 3.4 mm thick

1шт.

6

1966574C1

WASHER

1шт.

7

1966573C1

RING NUT

- ring, 35 mm - 1.5 mm

1шт.

8

1966264C1

THRUST WASHER

RETAINER

1шт.

9

N7618

O-RING,0.103" Thk x 1.174" ID, -123, Cl 5, 75 Duro

-123, 70 Duro, 1.174" ID x .103" Thk (Order 100537A1)

1шт.

10

1966194C1

OIL SEAL

SEAL - oil

1шт.

11

1966270C1

FLANGE

1шт.

12

933086R1

SNAP RING,M30, Ext

- retaining, external, 28 mm

1шт.
