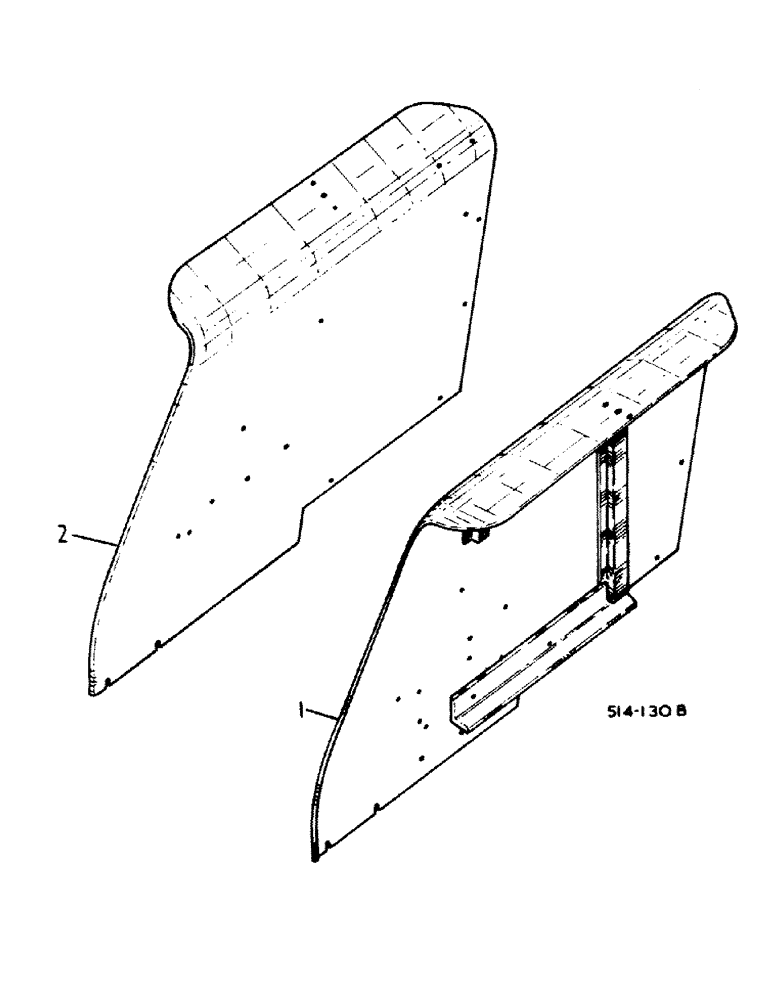

Запчасти Case IH 385 (13-04) - SUPERSTRUCTURE, REAR FENDERS (05) - SUPERSTRUCTURE

1

538639R3

FENDER ASSY.

FENDER W/PRODUCT GRAPHIC, LH

1шт.

2

530002R5

FENDER ASSY.

FENDER ASSY, RH

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , To rear top cover 5/16"

6шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120376

NUT,5/16"-18, G5

To transmission shift control housing or draft control housing 5/16"-18, G5

2шт.

181163

SCREW,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 hex hd cap

4шт.

116121

LOCK WASHER,1/2"

WASHER, LOCK, , To axle carrier 1/2"

4шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

1шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

3/8 x 5/8 type 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , To parking brake bracket 3/8"

3шт.

3113657R1

PLUG

side and tail light blanking

4шт.

3113430R1

PLUG

side and tail light blanking

2шт.

531625R1

GROMMET

2шт.

3112888R1

PLUG

blanking fender RH, 1/2 hole

1шт.

3113202R1

PLUG

blanking fender, 7/16 hole

1шт.

3125820R1

SLEEVE

PVC, for use w/LH & RH fender assys

1шт.
