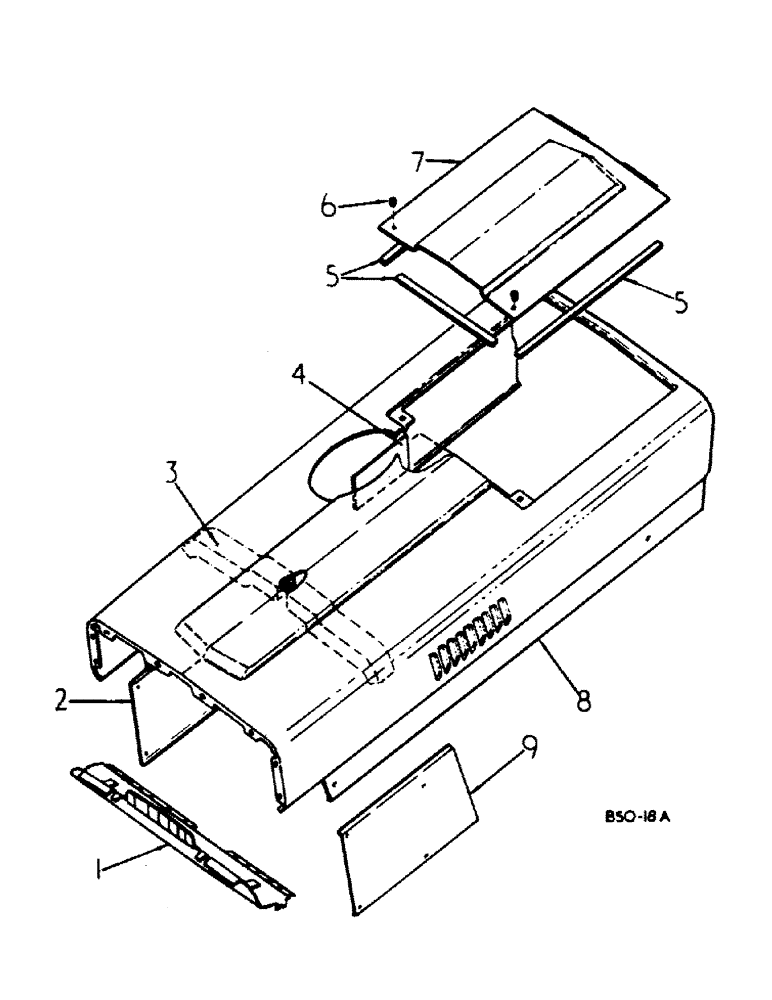

Запчасти Case IH 385 (13-01) - SUPERSTRUCTURE, HOOD AND PANEL (05) - SUPERSTRUCTURE

1

3121397R2

BAFFLE

upper

1шт.

95-11028

WASHER,1/4"

.281 x .625 x .051 pln

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

109084

NUT,1/4"-20, G5

4шт.

2

1287555C1

PANEL

side RH

1шт.

3118624R1

SCREW

5/16"-18 C-Z hex washer hd

4шт.

3

3125487R1

GASKET

foam, bulk length 4 ft

2шт.

4

NSS

NOT SOLD SEPARAT

SHIELD, heat, part of hood assy

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL, rear hood cover front, furnish 10.9 in. from bulk roll marked 73211C1

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL, rear hood cover side, furnish 17.0 in. from bulk roll marked 73211C1

2шт.

6

389872R1

THUMB SCREW,Knurled Head, 5/16"-18 x 3/4"

SCREW, or

2шт.

6

389872R1

THUMB SCREW,Knurled Head, 5/16"-18 x 3/4"

SCREW

2шт.

376787R1

WASHER

X

2шт.

7

3121393R91

COVER ASSY

rear hood

1шт.

8

3121374R92

HOOD ASSY.

HOOD ASSY, tractors w/vertical exhaust, 51-1/2" long

1шт.

See SB 3388 for improved hood and side panels

1шт.

8

3121379R91

HOOD ASSY.

HOOD ASSY, tractors w/underslung exhaust

1шт.

1502286C1

NUT

5/16-18 cage

2шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

3121721R1

SCREW

5/16-18 hex washer hd

4шт.

9

1287554C1

PANEL

side LH

1шт.

3118624R1

SCREW

5/16"-18 C-Z hex washer hd

4шт.
