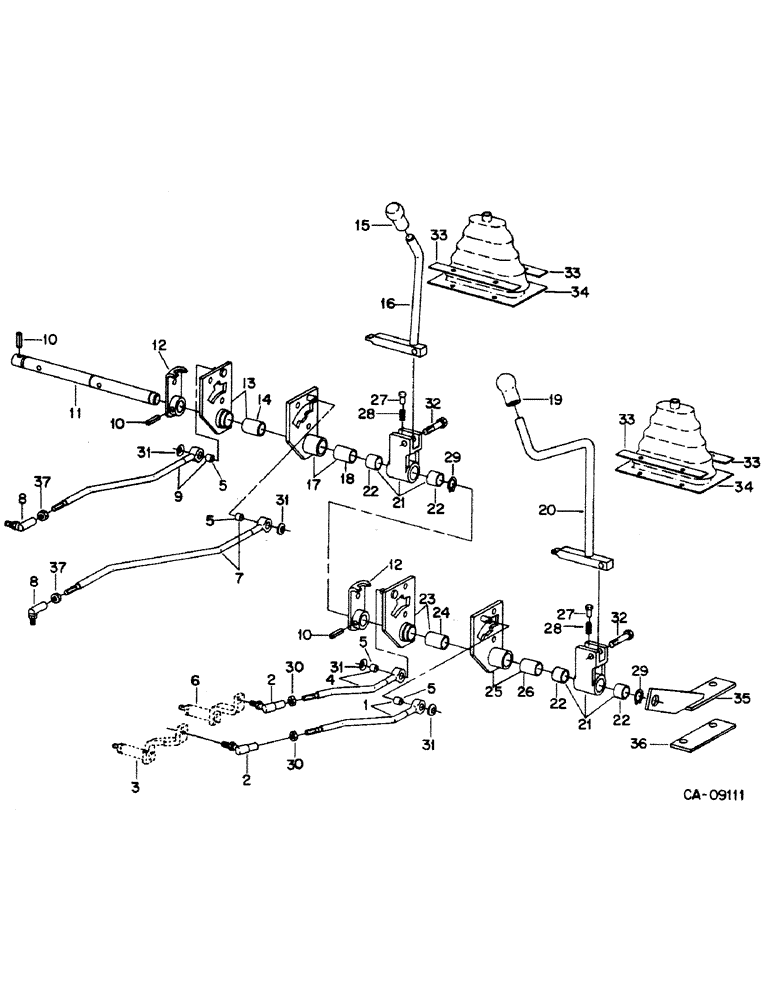

Запчасти Case IH 385 (07-26) - DRIVE TRAIN, TRANSMISSION CONTROL, EXTERNAL, TRACTORS WITHOUT FORWARD AND REVERSE (04) - Drive Train

1

3129228R91

ROD ASSY.

ROD ASSY, range shift front, includes ref. no. 5

1шт.

When subbed to 1536648C1 you must also sub over the balljoint (P/N 1500497C1) and the jamnut (P/N 1500536C1), both measure 7/16".

1шт.

2

653867C1

BALL JOINT

JOINT, 3/8 C-Z type G-4 ball

2шт.

124925

JAM NUT,Jam, 3/8"-24, G5

2шт.

3

ARM ASSY, range shift outer front see, gear shift mechanism, range

1шт.

4

3129232R91

ROD ASSY.

ROD ASSY, range shift rear, includes ref. no. 5

1шт.

5

3129156R1

BUSHING,9.58mm ID x 12.79mm OD x 12.7mm L

rod end eye

4шт.

6

ARM ASSY, range shift outer rear see, gear shift mechanism range

1шт.

7

3129226R91

ROD ASSY.

ROD ASSY, speed shift, 3rd/4th, includes ref. no. 5

1шт.

8

1500497C1

BALL JOINT

JOINT, ball

2шт.

231-4617

LOCK NUT,7/16"-20, GB

NUT, 7.16-NF cad P/T lock type 5

2шт.

9

3129222R91

ROD ASSY.

ROD ASSY, speed shift 1st/2nd, includes ref. no. 5

1шт.

10

617940R1

PIN,5/16" x 1 3/4", Coiled

3шт.

11

3129155R2

SHAFT

range trans. shift lever idle

1шт.

12

3129218R2

PLATE

GATE ASSY, shift

2шт.

13

3129211R91

LEVER ASSY.

LEVER ASSY, speed shift 1st/2nd, includes ref. no. 14

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

14

3129207R1

BUSHING,22.25mm ID x 25.48mm OD x 30mm L

lever

1шт.

15

1265215C1

BALL KNOB

KNOB, speed shift lever replaces 3129267R

1шт.

16

3129265R2

LEVER

speed shift

1шт.

17

3129217R91

LEVER ASSY.

LEVER ASSY, speed shift, 3rd/4th, includes ref. no. 18

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

18

3129207R1

BUSHING,22.25mm ID x 25.48mm OD x 30mm L

lever

1шт.

19

1265216C1

BALL KNOB

KNOB, range shift lever replaces 3129267R1

1шт.

20

3129268R2

LEVER ASSY.

LEVER ASSY, range shift

1шт.

21

3129214R92

HOUSING ASSY.

HOUSING ASSY, selector arm, includes ref. no. 22

2шт.

22

530815R1

BUSHING,22.27mm ID x 25.46mm OD x 22.23mm L

4шт.

23

3129210R91

LEVER ASSY.

LEVER ASSY, range rear, includes ref. no. 24

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

24

3129207R1

BUSHING,22.25mm ID x 25.48mm OD x 30mm L

. lever

1шт.

25

3129209R91

LEVER ASSY.

LEVER ASSY, range front, includes ref. no. 26

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

26

3129207R1

BUSHING,22.25mm ID x 25.48mm OD x 30mm L

lever

1шт.

27

22938R1

HEADED PIN,5/16" x 1/2"

PIN, HEADED, 5/16" x 1/2"

2шт.

28

71486C1

SPRING

2шт.

29

454331R1

SNAP RING,#87, Ext

2шт.

615192R1

WASHER

.906 x 1.250 x .027 pln

2шт.

30

3048059R91

LOCK NUT

NUT, 3/8 UNF nylon insert lock

2шт.

31

83723R1

WAVE WASHER

wave

4шт.

Q3641

WASHER

.406 x .750 x .021 pln

4шт.

32

23225R1

HEADED PIN,3/8" x 2"

PIN, HEADED, , Selector arm pivot 3/8" x 2", Serial Range: -634

2шт.

95-11041

WASHER,3/8"

(.406 x .812 x .051 pln) 3/8"

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

32

1282929C1

BOLT,Hex, 3/8" - 16 x 6"

- Selector arm pivot, Start Serial: 635

2шт.

9413979

LOCK NUT,3/8"-16, GC

NUT, 3/8 PHC P/T lock type 8

2шт.

95-11041

WASHER,3/8"

(.406 x .812 x .051 pln) 3/8"

2шт.

33

1502032C1

STRIP

retaining

4шт.

33

1283389C1

STRIP

retaining 1 used on RH side of RH boot on tractors w/rops

1шт.

27046R1

SELF-TAP SCREW,Cross Pan Hd, #8 x 7/8"

SCREWS, no. 8-18 x 7/8 PHC P/HDCR tap

8шт.

34

1502031C1

BOOT

control lever

2шт.

35

1287659C1

SUPPORT

BRACKET ASSY, shift lever

1шт.

271547

STUD,Hex, 5/8" - 11 x 1 1/2", Gr 5

5/8 x 1-1/2 type 5

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

36

1287660C1

PLATE

shim

1шт.

37

1500536C1

JAM NUT

7/16-28 hex jam

2шт.
