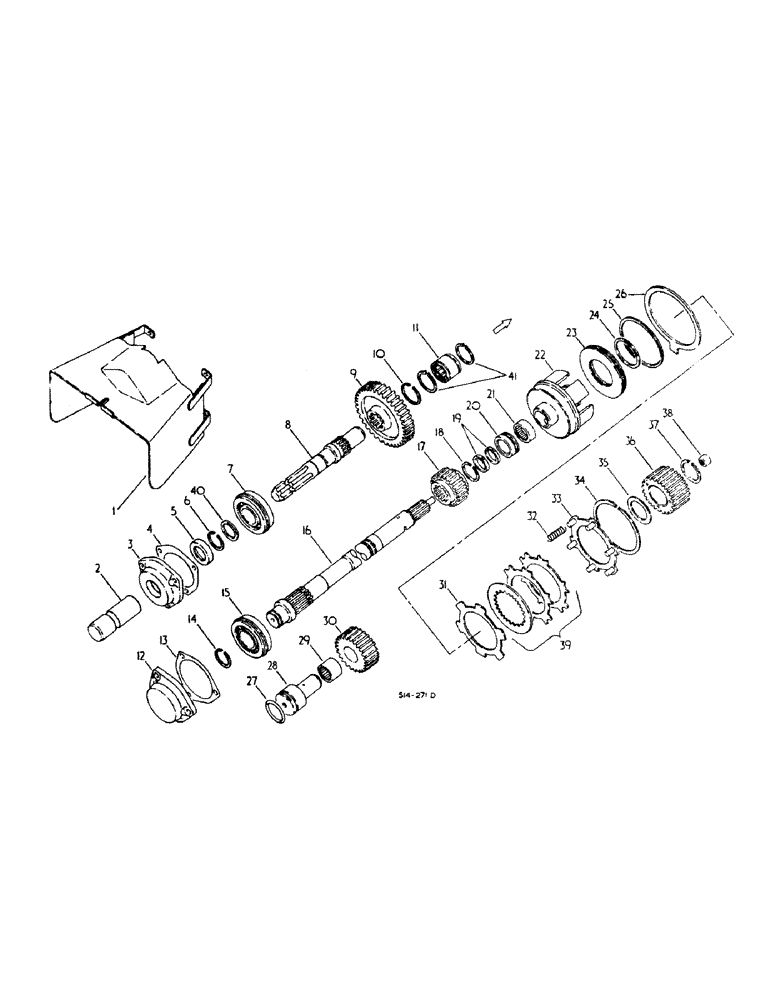

Запчасти Case IH 385 (07-18) - DRIVE TRAIN, INDEPENDENT POWER TAKE-OFF SINGLE SPEED, UPPER OUTPUT SHAFT, W/ PROVISION FOR SIDE PTO (04) - Drive Train

1

401734R1

GUARD ASSY.

SHIELD ASSY, IPTO safety

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

2

3054841R2

TUBE

ASSY, IPTO shaft protection PVC

1шт.

3

1500086C1

FLANGED BEARING

IPTO shaft brg.

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8 x 7/8 pln type 5

3шт.

4

399843R3

GASKET

shaft brg retainer

1шт.

5

385766R91

OIL SEAL,38.1mm ID x 60.45mm OD x 8.13mm Thk

SEAL, shaft oil

1шт.

6

607186R1

SNAP RING,#156, Ext

Brg #156, Ext

1шт.

7

ST236

BEARING, BALL,40mm ID x 90mm OD x 23mm W

BEARING, shaft ball

1шт.

8

1500087C1

SHAFT

upper output

1шт.

9

404237R1

PINION

GEAR, driven, 36T

1шт.

10

336000R1

SNAP RING,#175, 1.640", Ext

RING, driven gear retainer

1шт.

11

1500088C91

NEEDLE BEARING,Needle, 38.14mm ID x 52.39mm OD x 35.56mm W

614 RPM shaft, caged

1шт.

12

66191C1

FLANGED BEARING

IPTO brg end

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8 x 7/8 pln type 5

3шт.

13

399843R3

GASKET

shaft brg retainer

1шт.

14

607186R1

SNAP RING,#156, Ext

Brg #156, Ext

1шт.

15

ST236

BEARING, BALL,40mm ID x 90mm OD x 23mm W

BEARING, shaft ball

1шт.

16

66189C1

SHAFT ASSY.

SHAFT ASSY, IPTO driving

1шт.

17

404233R1

PINION

GEAR, lower shaft drive, 22T

1шт.

18

336000R1

SNAP RING,#175, 1.640", Ext

RING, driven gear retainer

1шт.

19

166972R1

RING

shaft sealing

2шт.

20

401705R2

BUSHING,39.69mm ID x 50.86mm OD x 23.11mm L

lower shaft

1шт.

21

565232R91

BEARING, NEEDLE,Needle, 38.09mm ID x 47.64mm OD x 15.88mm W

BEARING, shaft needle

1шт.

22

3125149R1

CUP

clutch

1шт.

617938R1

PIN,5/16" x 1 3/8", Coiled

1шт.

23

401722R1

PISTON

clutch

1шт.

24

401723R1

O-RING,69.32mm ID x 76.22mm OD x 1.75mm Thk

RING, piston seal, inner

1шт.

25

401724R1

SEAL,0.551" ID x 0.07" Width

RING, piston seal, outer

1шт.

26

404490R1

RING,140.25mm ID x 4.5mm Thk

IPTO brake

1шт.

27

379961R1

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

2-1/16 x 2-1/4 class 5

1шт.

28

401726R1

SHAFT

IPTO idler

1шт.

29

570450R91

NEEDLE BEARING

idler shaft needle

1шт.

30

401727R1

PINION

GEAR, idler, 24T

1шт.

31

66185C1

CLUTCH PLATE,98.55mm ID x 157.48mm OD x 3.05mm Thk

piston return

1шт.

32

66182C1

SPRING

piston return

6шт.

33

66186C92

PLATE ASSY.

PLATE ASSY, clutch backing

1шт.

19555R1

PIN,5/16" x 1", Coiled

6шт.

34

401720R1

CIRCLIP

RING, backing plate snap

1шт.

35

401713R1

THRUST WASHER,52.48mm ID x 70.1mm OD x 1.82mm Thk

1шт.

36

66183C2

HUB ASSY.,45T

HUB ASSY, clutch

1шт.

37

401756R1

SNAP RING,#206, 1.936", Ext

RING, snap

1шт.

38

533325R91

BEARING, NEEDLE

BEARING, IPTO driven shaft needle

1шт.

39

66193C91

PACKAGE

clutch plate service, consists of (5) disc (NSS), (8) plate

1шт.

401723R1

O-RING,69.32mm ID x 76.22mm OD x 1.75mm Thk

1шт.

401724R1

SEAL,0.551" ID x 0.07" Width

O-RING

1шт.

66182C1

SPRING

6шт.

40

1500085C1

WASHER

1шт.

41

202307R1

SNAP RING,#206, Ext

2шт.

1287945C1

DECAL

PRODUCT GRAPHIC, IPTO overspeed 600 RPM maximum

1шт.
