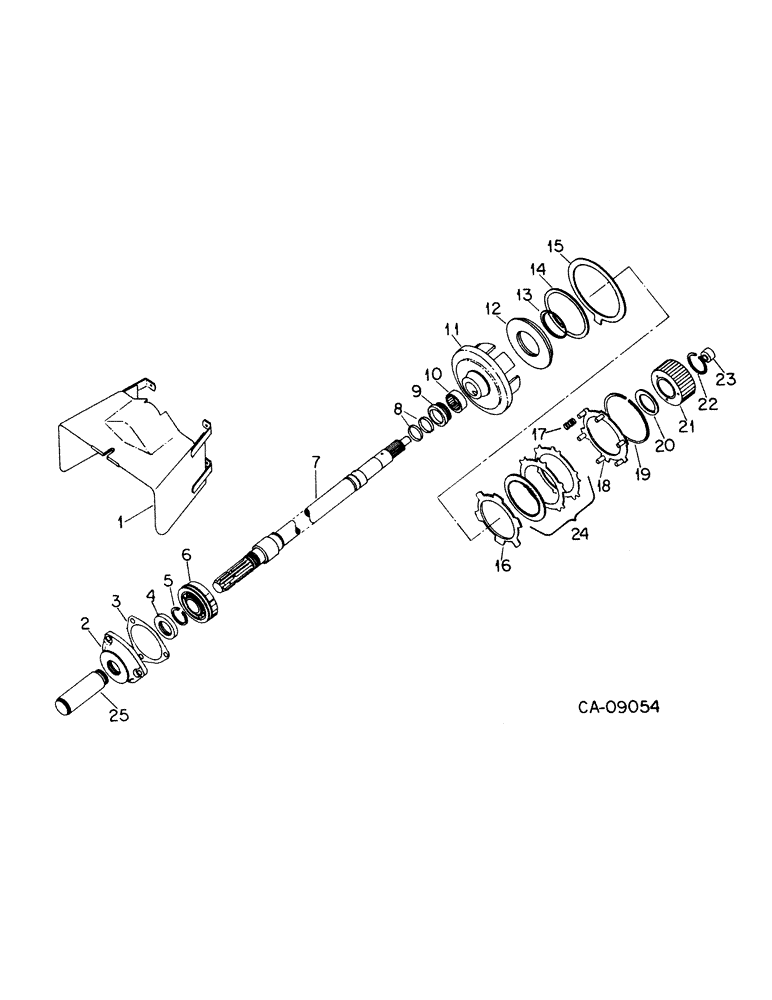

Запчасти Case IH 385 (07-17) - DRIVE TRAIN, INDEPENDENT POWER TAKE OFF-SINGLE SPEED, LOWER OUTPUT SHAFT WITH PROVISION FOR SIDE PTO (04) - Drive Train

1

401734R1

GUARD ASSY.

SHEILD ASSY, IPTO safety

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

2

1500086C1

FLANGED BEARING

IPTO shaft brg

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8 x 7/8 pln type 5

3шт.

3

399843R3

GASKET

shaft brg retainer

1шт.

4

385766R91

OIL SEAL,38.1mm ID x 60.45mm OD x 8.13mm Thk

SEAL, shaft oil

1шт.

5

607186R1

SNAP RING,#156, Ext

Brg #156, Ext

1шт.

6

ST236

BEARING, BALL,40mm ID x 90mm OD x 23mm W

BEARING, shaft ball

1шт.

7

66456C1

SHAFT

ASSY, IPTO output

1шт.

8

166972R1

RING

shaft sealing

2шт.

9

401705R2

BUSHING,39.69mm ID x 50.86mm OD x 23.11mm L

lower shaft

1шт.

10

565232R91

BEARING, NEEDLE,Needle, 38.09mm ID x 47.64mm OD x 15.88mm W

BEARING, shaft needle

1шт.

11

66068C1

GEAR

clutch cap, 44T, w/side drive P.T.O.

1шт.

11

3125149R1

CUP

front clutch, w/outside drive P.T.O.

1шт.

617938R1

PIN,5/16" x 1 3/8", Coiled

1шт.

12

401722R1

PISTON

clutch

1шт.

13

401723R1

O-RING,69.32mm ID x 76.22mm OD x 1.75mm Thk

RING, piston seal, inner

1шт.

14

401724R1

SEAL,0.551" ID x 0.07" Width

RING, piston seal, outer

1шт.

15

404490R1

RING,140.25mm ID x 4.5mm Thk

IPTO brake

1шт.

16

66185C1

CLUTCH PLATE,98.55mm ID x 157.48mm OD x 3.05mm Thk

piston return

1шт.

17

66182C1

SPRING

piston return

6шт.

18

66186C92

PLATE ASSY.

PLATE ASSY, clutch backing

1шт.

19555R1

PIN,5/16" x 1", Coiled

6шт.

19

401720R1

CIRCLIP

RING, backing plate snap

1шт.

20

401713R1

THRUST WASHER,52.48mm ID x 70.1mm OD x 1.82mm Thk

1шт.

21

66183C2

HUB ASSY.,45T

HUB ASSY, clutch

1шт.

22

401756R1

SNAP RING,#206, 1.936", Ext

RING, snap

1шт.

23

533325R91

BEARING, NEEDLE

BEARING, IPTO driven shaft needle

1шт.

24

66193C91

PACKAGE

clutch plate service, 1000 RPM, consists of (5) plate, clutch driven (NSS), (8) plate, clutch separator (NSS)

1шт.

401723R1

O-RING,69.32mm ID x 76.22mm OD x 1.75mm Thk

clutch piston inner

1шт.

401724R1

SEAL,0.551" ID x 0.07" Width

O-RING, clutch piston outer

1шт.

66182C1

SPRING

piston return

6шт.

25

3054841R2

TUBE

ASSY, IPTO shaft protection PVC

1шт.

1287945C1

DECAL

PRODUCT GRAPHIC, IPTO overspeed

1шт.
