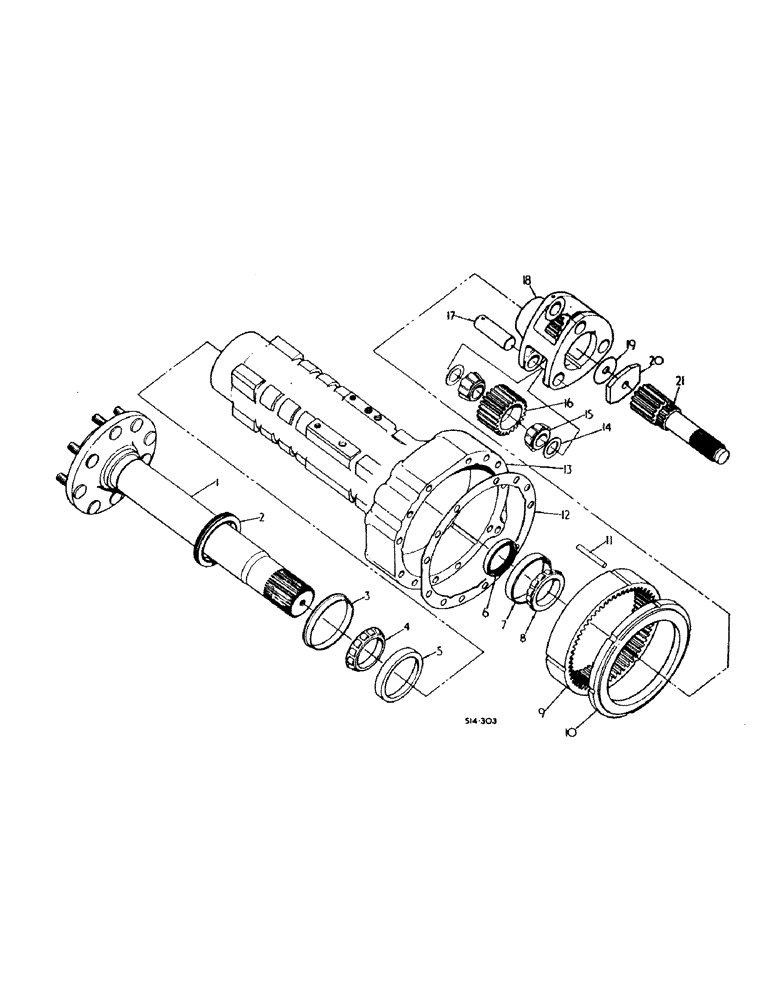

Запчасти Case IH 385 (07-12) - DRIVE TRAIN, REAR AXLE, CARRIER AND CONNECTIONS (04) - Drive Train

1

404340R21

HALF SHAFT

AXLE ASSY, rear

2шт.

404341R3

BOLT,5/8" - 18 x 1.93", Full Thd

BOLT, rear wheel

16шт.

3047575R2

NUT,Wheel, 5/8"-18

rear wheel

16шт.

2

105470C1

OIL SEAL

SEAL, rear axle outer oil

2шт.

3

399754R1

SLEEVE

wear

2шт.

4

ST2001A

BEARING ASSY,2.688" ID x 4.3317" OD x 0.88"

BEARING, rear axle outer cone

2шт.

5

13390D

ROLLER BEARING,3.06" ID x 4.3317" OD x 0.866"

rear axle outer cup

2шт.

6

380200R92

OIL SEAL

rear axle inner oil

2шт.

7

13390D

ROLLER BEARING,3.06" ID x 4.3317" OD x 0.866"

rear axle inner cup

2шт.

8

ST2194

BEARING, CONE

BEARING, rear axle inner cone

2шт.

9

535316R1

GEAR, RING

66T

2шт.

10

114620C1

RING,260mm OD

brake outer disc

2шт.

11

529685R1

DOWEL

PIN, 3/8 x 2-1/4 dowel

6шт.

12

399762R3

GASKET

rear axle carrier

2шт.

13

3123813R3

CARRIER

rear axle LH

1шт.

13

3123814R2

CARRIER

rear axle RH

1шт.

223444

BOLT,Hex, 5/8" - 11 x 4", Gr 8

5/8 x 4 pln type 8

22шт.

14

65420C1

SHIM KIT

PACKAGE, planet gear shim service, consists of (3) shim .042 (NSS), (3) shim .049 (NSS), (3) shim .056 (NSS)

1шт.

15

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

BEARING ASSY, planet gear cone

12шт.

16

399784R2

PINION

GEAR, planet

6шт.

17

399788R1

PIN

planet shaft

6шт.

19723R1

PIN,5/16" x 1 1/8", Coiled

6шт.

18

404339R3

PINION CARRIER

CARRIER, planet gear

2шт.

19

65422C1

SHIM KIT

PACKAGE, rear axle retainer shim, consists of (3) shim, rear axle retainer .007 (NSS), (3) shim, rear axle retainer .012 (NSS), (2) shim, rear axle retainer .0299 (NSS)

1шт.

20

399748R1

SPACER

planet carrier ret

2шт.

20668R1

BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 8

5/8-NF x 1-1/2 pln type 8

2шт.

21

404338R1

SHAFT

planetary drive RH

1шт.

21

404337R1

SHAFT

planetary drive LH

1шт.
