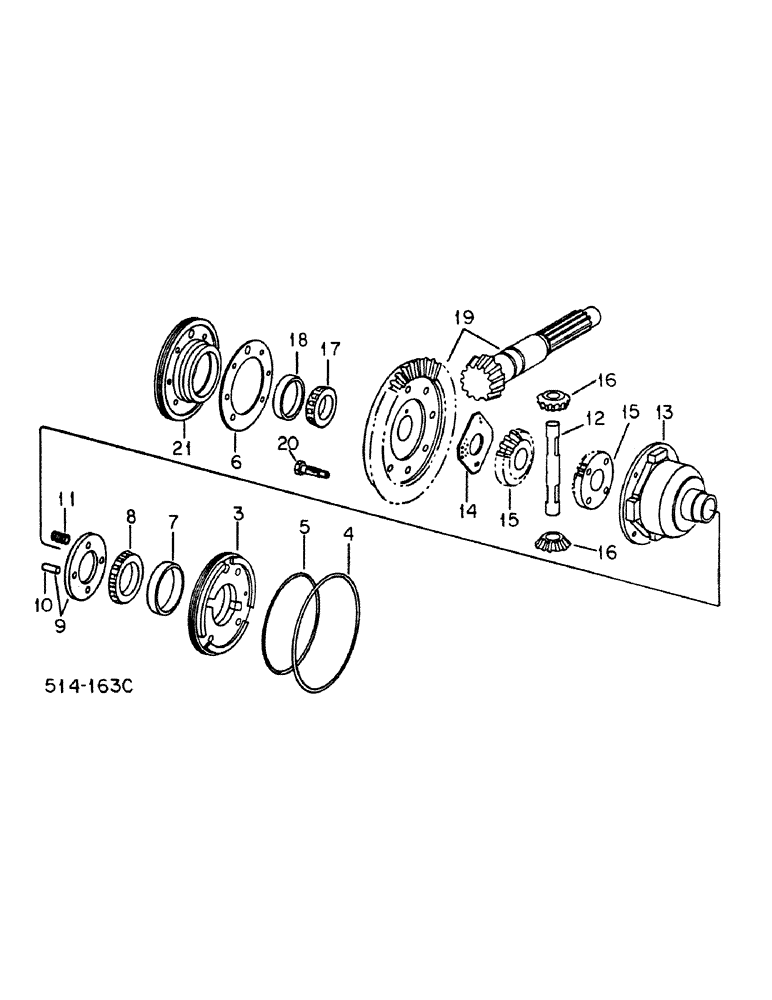

Запчасти Case IH 385 (07-10) - DRIVE TRAIN, DIFFERENTIAL AND CONNECTIONS (04) - Drive Train

1

(Not used this application)

1шт.

2

(Not used this application)

1шт.

3

399770R2

BEARING CARRIER

CARRIER, differential brg RH

1шт.

340340R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

1/2 x 1-1/2 pln type 8

4шт.

4

21472R1

O-RING,0.139" Thk x 8.234" ID, -267, Cl 6, 90 Duro

8-1/4 x 8-1/2 x 1/8, differential brg carrier

2шт.

5

289506R1

O-RING,0.21" Thk x 7.475" ID, -367, Cl 5, 75 Duro

7-1/2 x 7-7/8 x 3-1/6, differential brg carrier seal

2шт.

6

65419C1

BEARING CARRIER

PACKAGE, differential brg carrier shim, consists of (3) shim, differential brg carrier .003 (NSS), (3) shim, differential brg carrier .007 (3) shim, differential carrier .012 (NSS), (2) shim, differential brg carrier .030 (NSS)

2шт.

7

105497H

BEARING CUP,96.85mm OD x 15.77mm W

BEARING, differential cup RH

1шт.

8

52843V

BEARING ASSY,57.15mm ID x 22.05mm W

BEARING ASSY, differential cone RH

1шт.

9

399764R11

LOCKING RING

RING ASSY, differential lock

1шт.

10

399765R1

PIN

coupling

4шт.

11

400867R1

SPRING

differential lock

2шт.

12

399775R1

SHAFT

differential pinion

1шт.

13

399763R1

PINION CARRIER

CARRIER, differential

1шт.

14

399778R1

THRUST WASHER

differential bevel gear thrust

1шт.

15

404336R1

PINION

GEAR, differential bevel, 20T

2шт.

16

399776R1

PINION

GEAR, differential pinion, 10T

2шт.

17

105503H

ROLLER BEARING,57.15mm ID x 24.61mm W

BEARING ASSY, differential cone LH

1шт.

18

105496H

BEARING CUP,97.63mm OD x 19.45mm W

BEARING ASSY, differential cup LH

1шт.

19

65254C1

SHAFT

SET, bevel gears matched, 12/53T, consists of shaft, 12T (NSS), gear, 53T (NSS)

1шт.

20

399779R2

BOLT,Hex, 1/2" - 13 x 2.12", Gr 8

BOLT, 1/2-13 x 2-1/8 dowel

1шт.

340340R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

1/2 x 1-1/2 pln type 8

7шт.

21

399769R2

BEARING CARRIER

CARRIER, differential brg LH

1шт.

340340R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

1/2 x 1-1/2 pln type 8

4шт.
