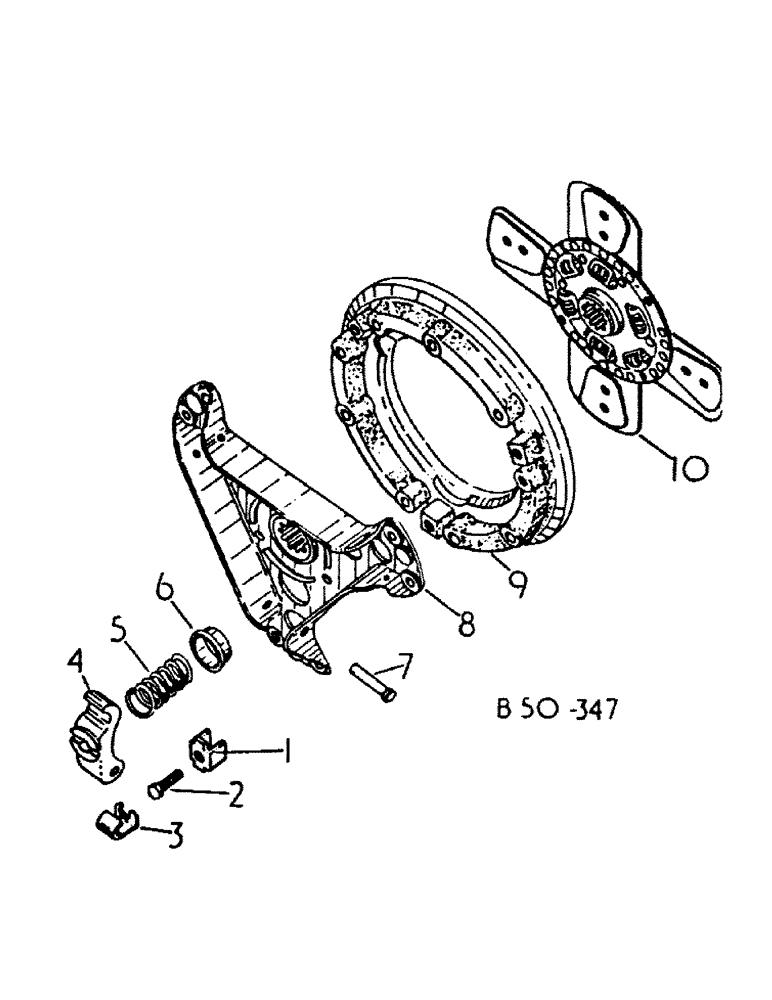

Запчасти Case IH 385 (07-07B) - DRIVE TRAIN, CLUTCH, LAYCOCK (04) - Drive Train

1500655C91

COVER ASSY

PLATE ASSY, clutch pressure, consists of ref nos 1 thru 9

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

6шт.

1

1500654C1

SUPPORT

KIT, wear clip

1шт.

2

1500653C1

KIT

cover parts w/screw, clips & nut

3шт.

NSS

NOT SOLD SEPARAT

NUT, 5/16-24 hex

1шт.

3

NSS

NOT SOLD SEPARAT

CLIP, return

3шт.

4

69912C1

KIT

lever & pivot pin

1шт.

5

69910C2

KIT

pressure spring and cup

1шт.

6

NSS

NOT SOLD SEPARAT

CUP, spring

3шт.

7

NSS

NOT SOLD SEPARAT

PIN, pivot

3шт.

8

69912C1

KIT

bracket and hub

1шт.

9

1500782C1

PLATE, THRUST

KIT, pressure plate

1шт.

10

3129463R91

PLATE ASSY.

PLATE ASSY, clutch driven disc w/o forward & reverse, or

1шт.

10

530402R3

DISC

PLATE ASSY, clutch driven disc w/o forward & reverse

1шт.

10

3121507R93

CLUTCH DISC

PLATE ASSY, clutch driven disc w/forward & reverse, or

1шт.

293248A1R

REMAN-CLUTCH DISC

385 w/Laycock Clutch, Reman For New P/N 3121507R93, N.A. Only

1шт.

293248A1C

CORE-CLUTCH DISC

Return Number, For N.A. Only

1шт.

10

70093C91

PLATE

ASSY, clutch driven disc w/forward & reverse

1шт.
