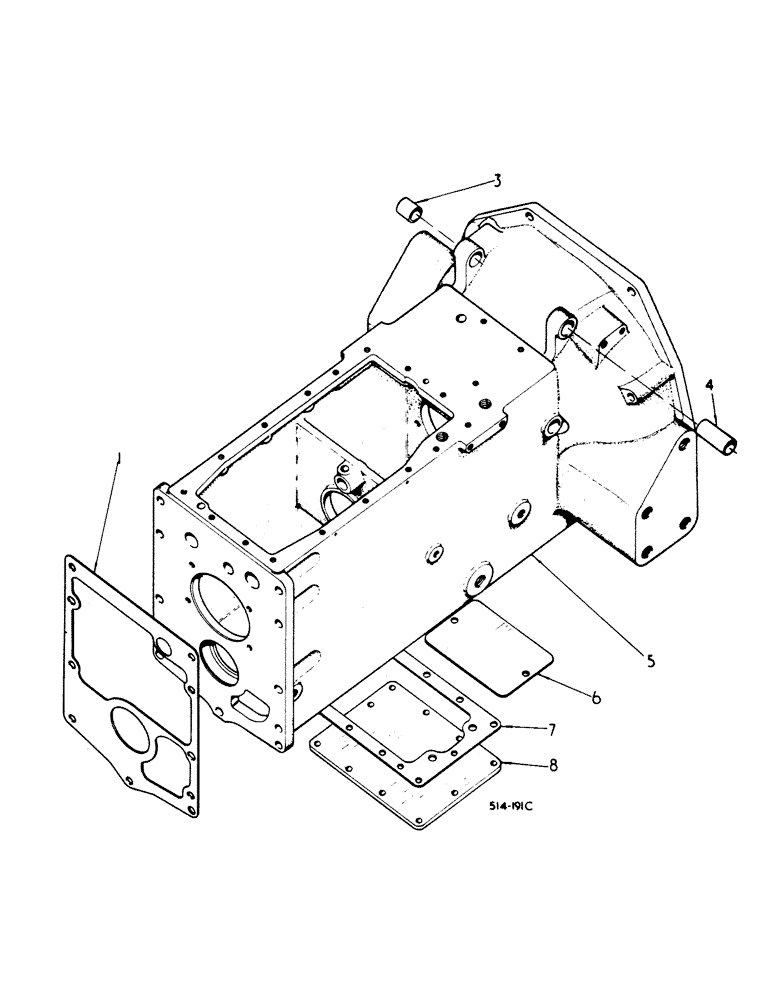

Запчасти Case IH 385 (07-05) - DRIVE TRAIN, CLUTCH HOUSING AND CONNECTIONS (04) - Drive Train

1

399814R4

GASKET

clutch housing to rear frame

1шт.

2

(Not used this application)

1шт.

3

530815R1

BUSHING,22.27mm ID x 25.46mm OD x 22.23mm L

clutch and brake shaft

3шт.

4

539834R1

BUSHING,22.35mm ID x 25.47mm OD x 68.07mm L

LH brake pedal pivot

1шт.

5

537097R97

HOUSING ASSY.

HOUSING, ASSY, clutch, composed of housing, clutch (NSS)

1шт.

19962R1

DOWEL,3/8" x 3/4"

PIN, 3/8 x .750 pln hdn dowel, clutch housing top cover

1шт.

20556R1

DOWEL,1/2" x 3/4"

PIN, 1/2 x .750 pln hdn-dowel

1шт.

19904R1

DOWEL,1/2" x 1"

PIN, 1/2 x 1.000 pln hdn-dowel, rear engine support

2шт.

327411R1

PLUG,Cup, 5/8"

5/8 cup

1шт.

444836

PLUG,Hex Hd, 3/4"-14

3/4-14 pln h/hd auto filler & drain

1шт.

530815R1

BUSHING,22.27mm ID x 25.46mm OD x 22.23mm L

clutch and brake shaft

3шт.

539834R1

BUSHING,22.35mm ID x 25.47mm OD x 68.07mm L

LH brake pedal

1шт.

9410359

PLUG

1/2 C-Z str thd o-ring boss, TA pressure port

1шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube class 6, TA pressure port plug

1шт.

340340R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

1/2 x 1-1/2 pln type 8, to rear frame

9шт.

186295

BOLT,Hex, 1/2" - 13 x 5 1/2", Gr 5

1/2 x 5-1/2 pln type 5, thru spacer to clutch hsg

1шт.

179894

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

Thru clutch hsg, spacer to crankcase Hex, 1/2"-13 x 3 1/4", G5

2шт.

179895

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5

1/2 x 3-1/2 pln type 5, thru pan/spacer to clutch hsg

2шт.

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1/2 x 1-3/4 pln type 5, thru spcer to clutch hsg

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

102637

NUT,1/2"-13, G5

2шт.

114505

JAM NUT,Jam, 1/2"-13, G5

1шт.

187238

BOLT,Hex, 1/2" - 13 x 6", Gr 5

1/2 x 6 pln type 5, thru spacer to clutch hsg

1шт.

6

399817R1

COVER

clutch compartment

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

7

402556R2

GASKET

clutch housing bottom rear cover

1шт.

8

402182R1

COVER

clutch housing bottom rear

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

11шт.
