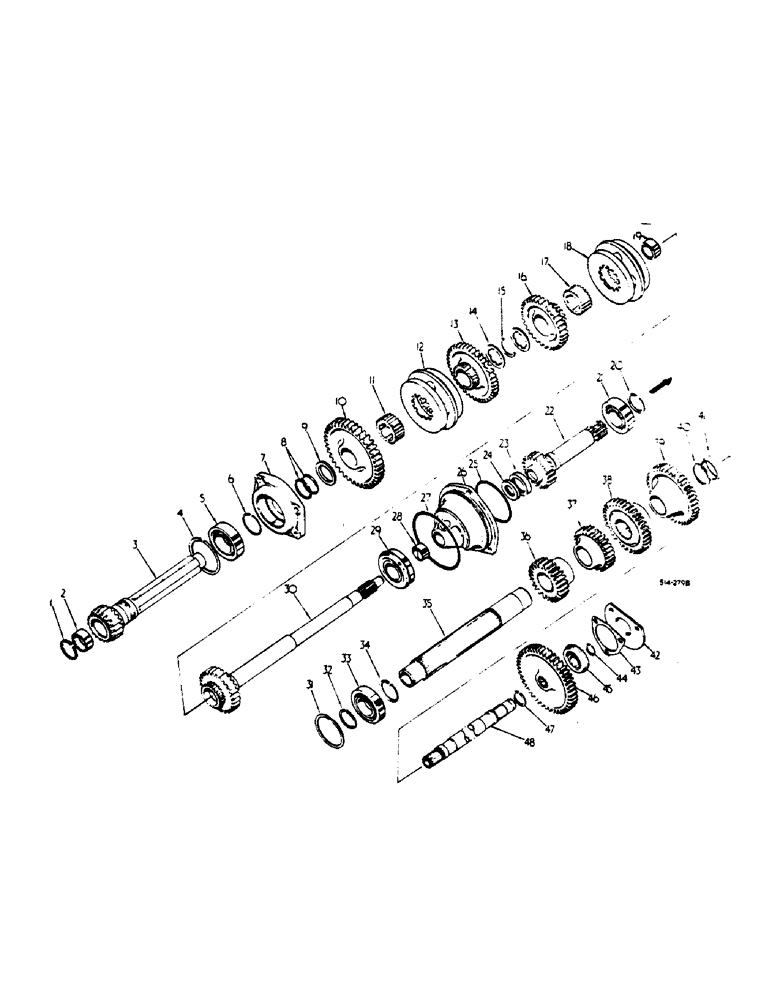

Запчасти Case IH 385 (07-02) - DRIVE TRAIN, SPEED TRANSMISSION, IN CLUTCH HOUSING (04) - Drive Train

1

66014C1

SNAP RING

RING, front needle brg int snap

1шт.

2

613639C91

NEEDLE BEARING,38.09mm ID x 47.65mm OD x 25.4mm W

main shaft needle

1шт.

3

65258C1

SHAFT

main

1шт.

4

398334R1

SNAP RING

RING, main shaft brg retainer inner snap

1шт.

5

ST264

BEARING, BALL,50 mm ID x 90 mm OD x 20 mm

BEARING, main shaft ball

1шт.

6

327068R1

RING, SNAP

RING, main shaft brg retainer outer snap

1шт.

7

534411R1

BEARING ASSY

CAGE ASSY, main shaft brg

4шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

8

404281R1

RING,Locking, 46.08mm ID x 50.8mm OD x 2.37mm Thk

mainshaft lub line seal

2шт.

9

398332R1

WASHER

ring

1шт.

10

398331R2

PINION

GEAR, 1st speed driven, 41T

1шт.

11

398325R1

HUB

3rd and 4th speed shift

1шт.

12

65793C2

SYNCHRONIZER

PACKAGE, synchronizer service

1шт.

13

398330R3

PINION

GEAR, 2nd speed driven, 33T

1шт.

14

398328R2

THRUST WASHER

WASHER, main shaft thrust

2шт.

15

398329R1

CIRCLIP

RING, synchronizer locating snap

1шт.

16

398327R3

PINION

GEAR, 4th speed driven, 24T

1шт.

17

398325R1

HUB

1st and 2nd speed shift

1шт.

18

65793C2

SYNCHRONIZER

PACKAGE, synchronzier service

1шт.

19

531168R91

BEARING, NEEDLE,Needle, 34.91mm ID x 44.44mm OD x 15.88mm W

BEARING, clutch shaft needle

1шт.

20

379511R1

SNAP RING,#177, 1.657", Ext

RING, IPTO drive shaft brg retainer snap

1шт.

21

ST342

BEARING, BALL,45mm ID x 85mm OD x 19mm W

BEARING, IPTO drive shaft ball

1шт.

22

71231C2

SHAFT

IPTO drive, 15 teeth

1шт.

23

NSS

NOT SOLD SEPARAT

SEAL, IPTO drive shaft oil order kit 1277488C1

1шт.

24

NSS

NOT SOLD SEPARAT

SEAL, clutch shaft oil order kit 1277488C1

1шт.

25

355740R1

O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro

5-1/4 x 5-5/8 x 1/8 brg cage

1шт.

26

398318R41

CAGE ASSY.

CAGE ASSY, IPTO and clutch shaft brg, complete w/bushing

1шт.

27

26969R1

O-RING,0.139" Thk x 5.234" ID, -252, Cl 6, 90 Duro

5-1/4 x 5-5/8 x 1/8 brg cage

1шт.

28

398319R1

BUSHING,30.05mm ID x 33.48mm OD x 15.88mm L

clutch shaft

1шт.

29

ST243

BEARING, BALL,45 mm ID x 85 mm OD x 19 mm

BEARING, clutch shaft ball

1шт.

30

1502168C1

SHAFT

clutch

1шт.

31

574964R1

RING, SNAP

RING, countershaft brg snap

1шт.

32

379511R1

SNAP RING,#177, 1.657", Ext

RING, countershaft brg snap

1шт.

33

ST201

BEARING, BALL,45mm ID x 85mm OD x 19mm W

BEARING, countershaft ball

1шт.

34

398268R1

BUSHING

ring spacer

1шт.

35

404089R2

SHAFT

COUNTERSHAFT, speed transmission

1шт.

36

404093R1

GEAR

1st speed drive, 26T

1шт.

37

404092R1

PINION

GEAR, 2nd speed drive, 34T

1шт.

38

404091R1

PINION

GEAR, 4th speed drive, 43T

1шт.

39

404090R1

PINION

GEAR, constant mesh driven, 39T

1шт.

40

398264R1

SNAP RING,#215, 2.026", Ext

RING, constant mesh driven gear retaining snap

1шт.

41

399820R91

BEARING, NEEDLE,Needle, 47.61mm ID x 57.16mm OD x 15.88mm W

BEARING, countershaft front needle

1шт.

42

398259R1

LARGE PLATE

RETAINER, IPTO driven shaft front brg cap

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8 x 7/8 pln type 5

3шт.

43

398260R2

GASKET

IPTO driven shaft front brg retainer

1шт.

44

555601R1

RING, SNAP

RING, IPTO driven shaft front brg retainer snap

1шт.

45

ST367

BEARING, BALL,25 mm ID x 62 mm OD x 17 mm

BEARING, IPTO driven shaft front ball

1шт.

46

404213R1

GEAR

IPTO driven, 53T

1шт.

47

399837R1

SNAP RING,#118, 1.121", Ext

RING, IPTO driven gear retainer snap

1шт.

48

536748R1

SHAFT ASSY.

SHAFT ASSY, IPTO driven

1шт.

1277488C1

GASKET KIT

KIT, clutch and IPTO sealing consists of sleeve, clutch shaft oil seal (NSS), seal, clutch shaft oil (NSS), seal, IPTO drive shaft oil (NSS)

1шт.

108982C1

OIL SEAL

SEAL, clutch release sleeve carrier

1шт.

355740R1

O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro

3-3/4 x 4 class 5 sleeve, protecting (NSS), sleeve, protecting (NSS), instructions (NSS)

1шт.
