(15-01) - WHEELS AND TRACTION, FRONT WHEELS

Запчасти Case IH 385 (15-01) - WHEELS AND TRACTION, FRONT WHEELS Wheels & Traction

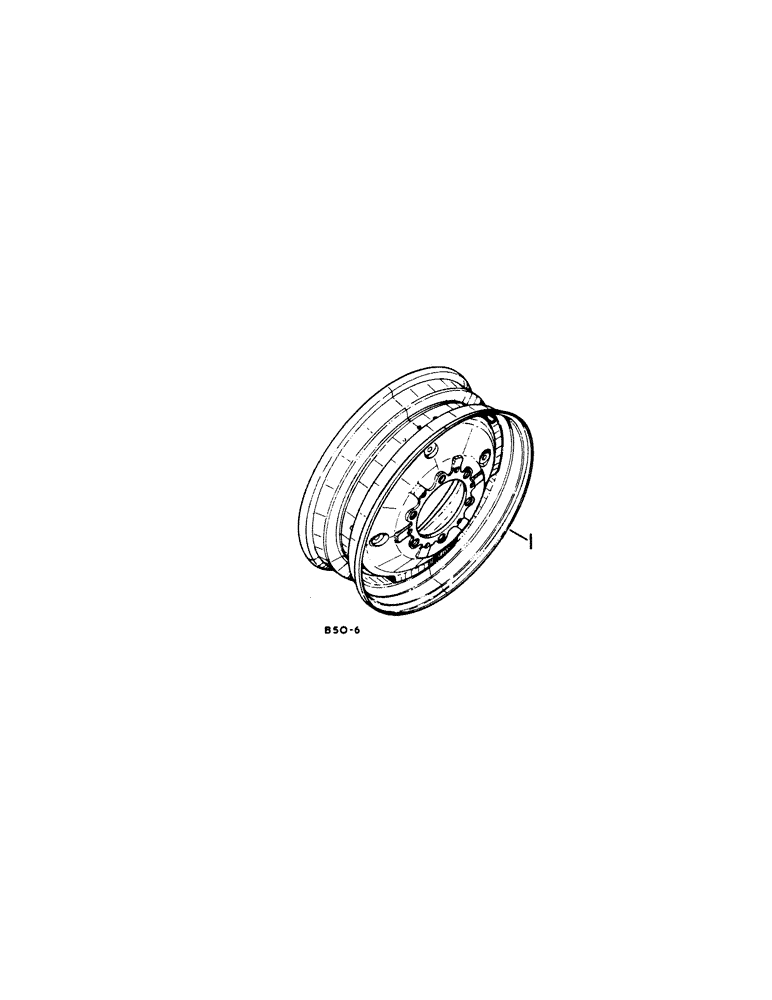

Схема запчастей Case IH 385 - (15-01) - WHEELS AND TRACTION, FRONT WHEELS Wheels & Traction
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

528687R1

WHEEL

ASSY, front disc type w/8L, 15 rim

2шт.

Rim is for 9.5L x 15, 6PRF2, and 11L-15. 6PRI1tubeless tires per CX70 catalog.

1шт.

1

361714R91

WHEEL ASSY.

WHEEL ASSY, front disc type w/4.25-16 DC rim

2шт.

1

1265032C1

WHEEL

ASSY, front disc type w/5.50-16 DC rim

2шт.

1

364343R92

WHEEL

ASSY, front disc type w/5.50-16 DC rim, heavy duty

2шт.

387897R91

VALVE STEM

VALVE, tubeless tire

2шт.

483879R1

NUT

wheel

12шт.

Выбрано товаров: 0
