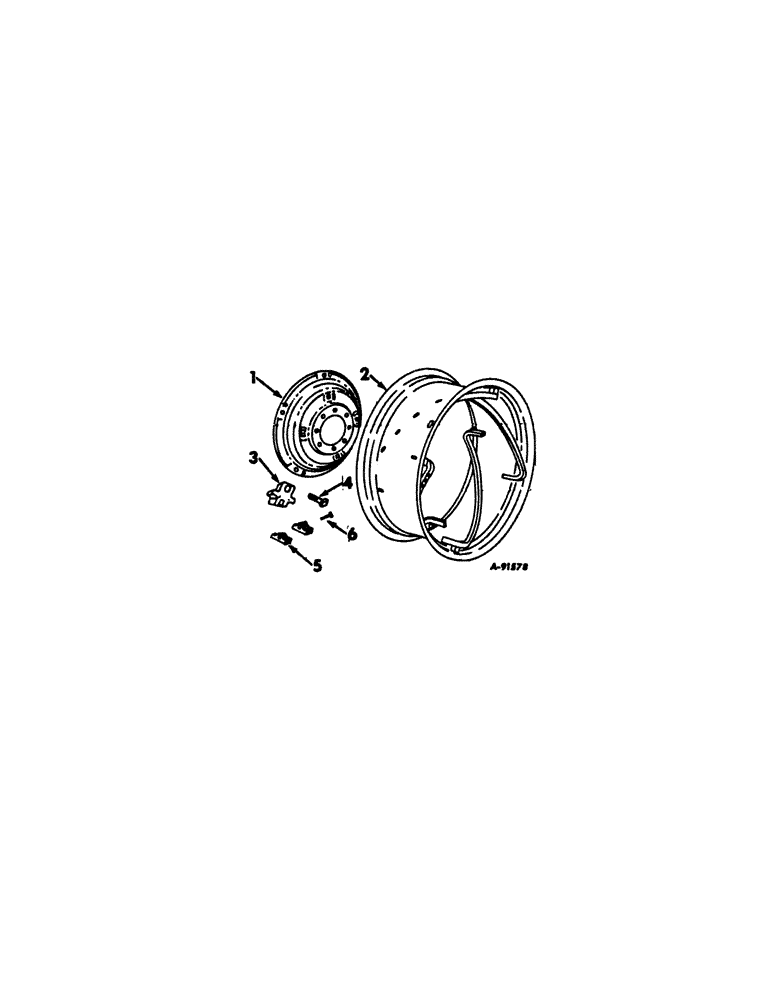

Запчасти Case IH 385 (15-01[3]) - WHEELS AND TRACTION, POWER ADJUSTED REAR WHEELS Wheels & Traction

NSS

NOT SOLD SEPARAT

WHEEL ASSY, W12-28 power adjusted rear, order components

1шт.

1

1282567C1

DISC, WHEEL

DISC, 28 in. dia

2шт.

2

1282568C1

RIM

ASSY, 28 in. for 13.6 & 14.9-28 tire

1шт.

3

399004R1

SHIN

CLAMP, rim

5шт.

4

399005R1

SQUARE BOLT,3/4" - 10 x 2.25"

BOLT, 3/4 x 2/25 sq-hd

5шт.

399006R1

WHEEL NUT

3/4 hex.

5шт.

399007R1

WASHER

3/4 pln

5шт.

5

365327R2

STOP

BODY, stop

2шт.

6

365326R1

SCREW

stop

2шт.
