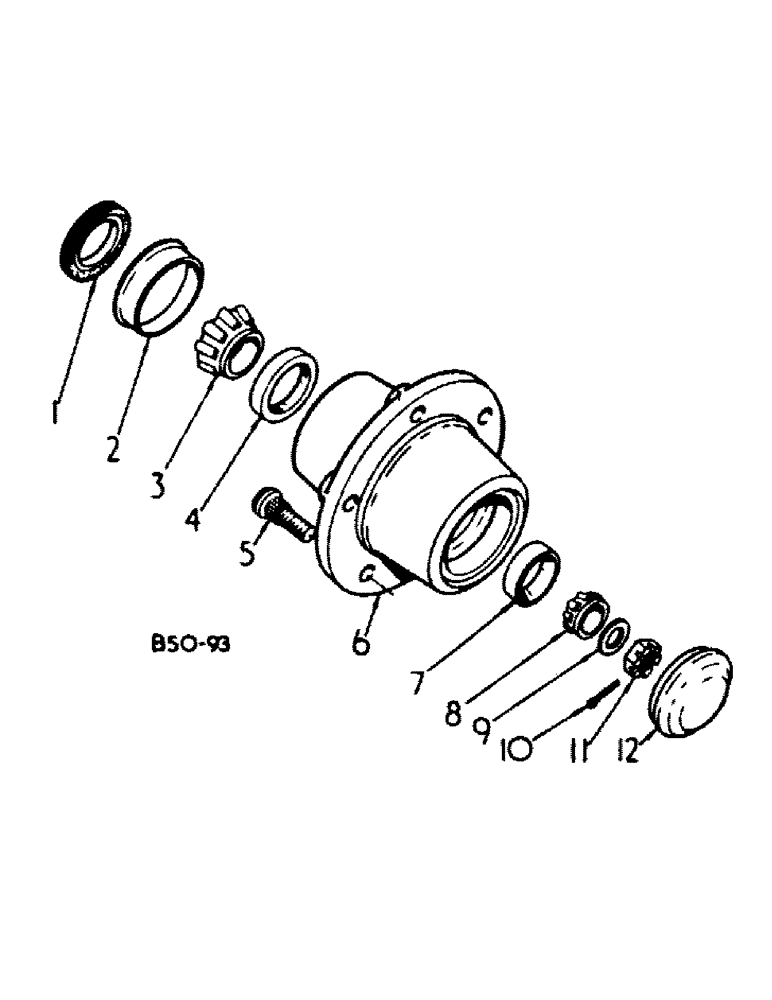

Запчасти Case IH 385 (14-05) - SUSPENSION, ADJUSTABLE FRONT AXLE, SWEPT BACK, TRACTORS WITH 1-11/16 DIAMETER STEERING KNUCKLE POST Suspension

1

530104R91

SEAL

SEAL, front wheel dust

2шт.

2

406295R2

RING

wear

2шт.

3

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

BEARING ASSY, inner cone

2шт.

4

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Inner

2шт.

5

528803R1

BOLT,1/2" - 20 x 1.75"

Mounting

12шт.

483879R1

NUT

wheel

12шт.

6

406294R21

HUB ASSY.

HUB ASSY, front wheel composed of ref nos 2, 4, 5 & 7

2шт.

7

371883R1

BEARING CUP

Outer

2шт.

8

371882R91

ROLLER BEARING,20.64mm ID x 49.23mm OD x 19.84mm W

Assy, outer

2шт.

9

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

outer bearing retainer

2шт.

10

108643

COTTER PIN,5/32" x 1 3/8"

Pin, Split (Cotter), 5/32" x 1 3/8"

2шт.

11

427639

SLOTTED NUT,3/4"-16, G5

NUT, 3/4-NF pln slt type 5

2шт.

12

612884R1

HUB CAP

CAP, front wheel hub

2шт.

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

1шт.

Available in kit B93362

1шт.

371882R91

ROLLER BEARING,20.64mm ID x 49.23mm OD x 19.84mm W

1шт.

Available in kit B93362

1шт.

371883R1

BEARING CUP

1шт.

Available in kit B93362

1шт.

406295R2

RING

1шт.

Available in kit B93362

1шт.

432-1024

COTTER PIN,5/32" x 1 1/2"

subbed from 108643 5/32" x 1 1/2"

1шт.

Available in kit B93362

1шт.

48539DA

PACKING RING

SEAL

1шт.

Available in kit B93362

1шт.

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

CONE

1шт.

Available in kit B93362

1шт.

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

1шт.

Available in kit B93362

1шт.
