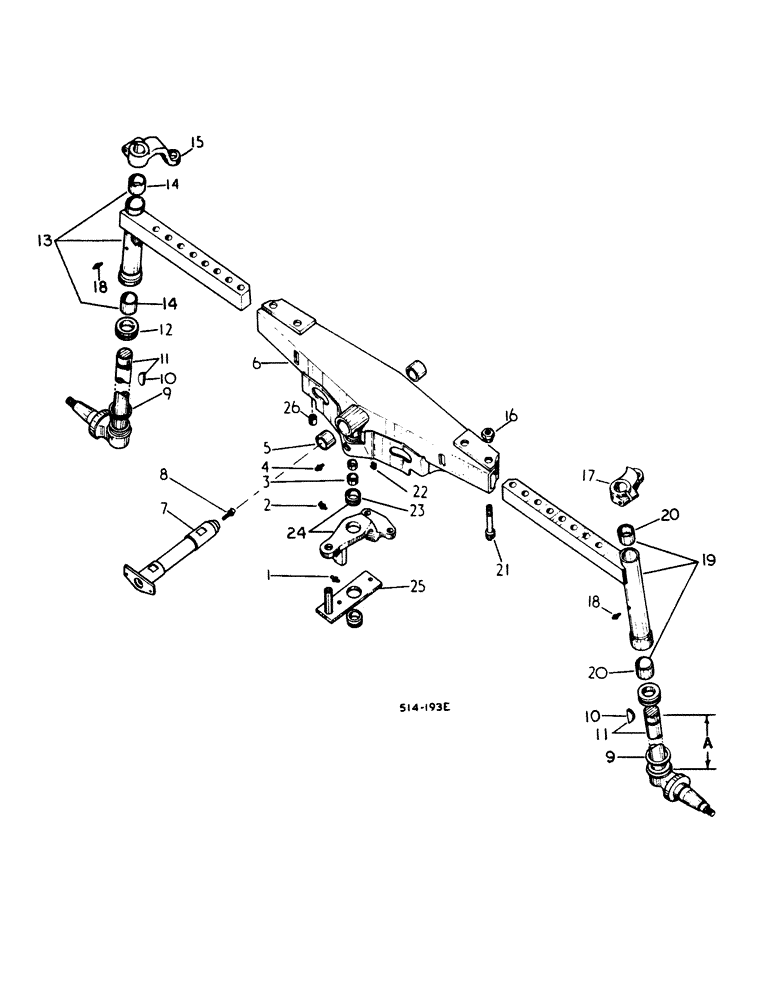

Запчасти Case IH 385 (14-02) - SUSPENSION, ADJUSTABLE FRONT AXLE, STRAIGHT, LOW SPINDLE, 52 TO 80 INCH TRACK Suspension

1

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, drive type str lub 3/16

1шт.

2

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

FITTING, 3/16 65 deg drive type str lub

1шт.

3

376160R1

BUSHING,25.4mm ID x 28.7mm OD x 19.3mm L

support

2шт.

4

20605R1

LUBE NIPPLE,45 Degree, 3/16" x .62" lg, Drive

FITTING, 1/4 45 deg angle drive type

1шт.

5

405570R1

BUSHING,50.95mm ID x 54.15mm OD x 47.63mm L

pivot

2шт.

6

69881C92

FRONT AXLE

AXLE ASSY, front, composed of ref. no. 3, 5 & 26

1шт.

405574R1

BUSHING

cyl mounting bracket

2шт.

7

539128R1

SHAFT ASSY.

SHAFT ASSY, front axle pivot

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

2шт.

1251958C1

WASHER,13mm ID x 25.40mm OD x 1.367mm, HTS

flat round hole hardened

2шт.

8

219-56

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

FITTING, 1/8-27 PTF 90 deg angle lub

1шт.

9

15943DA

SEALING WASHER,60.33mm ID x 72.23mm OD x 4.76mm Thk

Steering knuckle felt

2шт.

10

117997

WOODRUFF KEY,#25, 5/16" x 1 1/2", HT

2шт.

11

534288R92

KNUCKLE

ASSY, steering, low profile tractors, a dimension is 9.52 in.

2шт.

11

405840R12

KNUCKLE

ASSY, steering, utility tractors, a dimension is 12.17 in.

2шт.

12

185106C91

BEARING ASSY,44.2mm ID x 70.1mm OD x 19.05mm W

BEARING, steering knuckle thrust

2шт.

13

3116476R91

EXTENSION ASSY.

EXTENSION ASSY, front axle RH, low profile tractors, used w/knuckle 534288R92

1шт.

13

67533C91

EXTENSION ASSY.

EXTENSION ASSY, front axle RH, utility tractors, used w/knuckle 406840R12

1шт.

14

376099R1

BUSHING

2шт.

15

67525C1

ARM

steering knuckle RH

1шт.

102637

NUT,1/2"-13, G5

1шт.

16081R1

BOLT,Hex, 1/2" - 13 x 3 1/8", Gr 5

1шт.

16

405576R1

NUT

front axle

4шт.

17

67524C1

ARM

steering knuckle LH

1шт.

16081R1

BOLT,Hex, 1/2" - 13 x 3 1/8", Gr 5

1шт.

102637

NUT,1/2"-13, G5

1шт.

18

443567

LUBE NIPPLE,1/4" x .56 lg, Drive

FITTING, 1/4 drive type str lub

2шт.

19

3116475R91

EXTENSION ASSY.

EXTENSION ASSY, front axle LH, low profile tractors, used w/knuckle 534288R92

1шт.

19

67532C91

EXTENSION ASSY.

EXTENSION ASSY, front axle LH, utility tractors, used w/knuckle 405840R12

1шт.

20

376099R1

BUSHING

2шт.

21

405584R2

BOLT,Shldr, 3/4" - 16 x 4

Shoulder

4шт.

22

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING, 1/4 drive type str lub

1шт.

23

379748R1

BUSHING

2шт.

24

67499C91

ARM ASSY.

ARM ASSY, power steering center

1шт.

25

405580R11

BAR ASSY.

BAR ASSY, power steering cylinder

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

2шт.

67976C1

PLATE, LOCKING

STRIP, steering center arm bolt lock

1шт.

26

3125304R1

BUSHING

spring steel

1шт.
