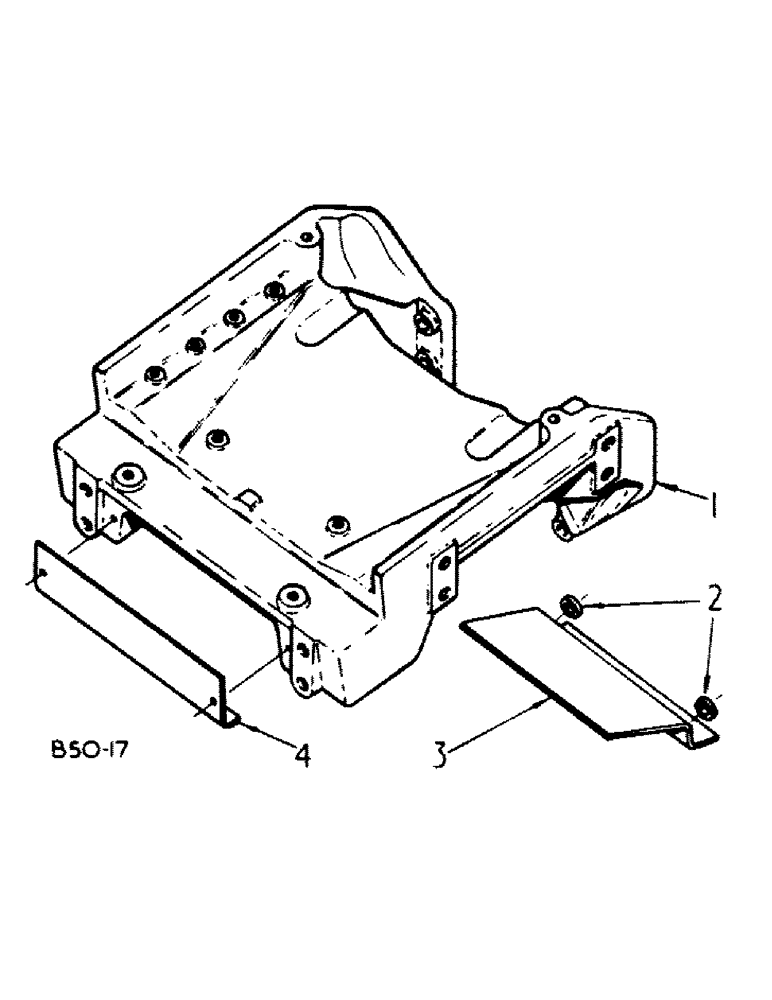

Запчасти Case IH 385 (14-01) - SUSPENSION, FRONT BOLSTER Suspension

1

3121169R4

BOLSTER

front, 4 side mounting holes

1шт.

271564

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 5

5/8 x 2-1/2 pln type 5

6шт.

2

(Not used this application)

1шт.

3

534812R1

BAFFLE

bolster

1шт.

3

534811R1

PROTECTION PLATE

BAFFLE, bolster, swept back front axle

1шт.

13-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

5/8 x 3-1/4 pln type 5

2шт.

369936R1

WASHER

bolster air baffle

2шт.

4

3121168R3

COVER

bolster front

1шт.

20716R1

SCREW,Sl Pan Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 znp P/HDS mach

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.
