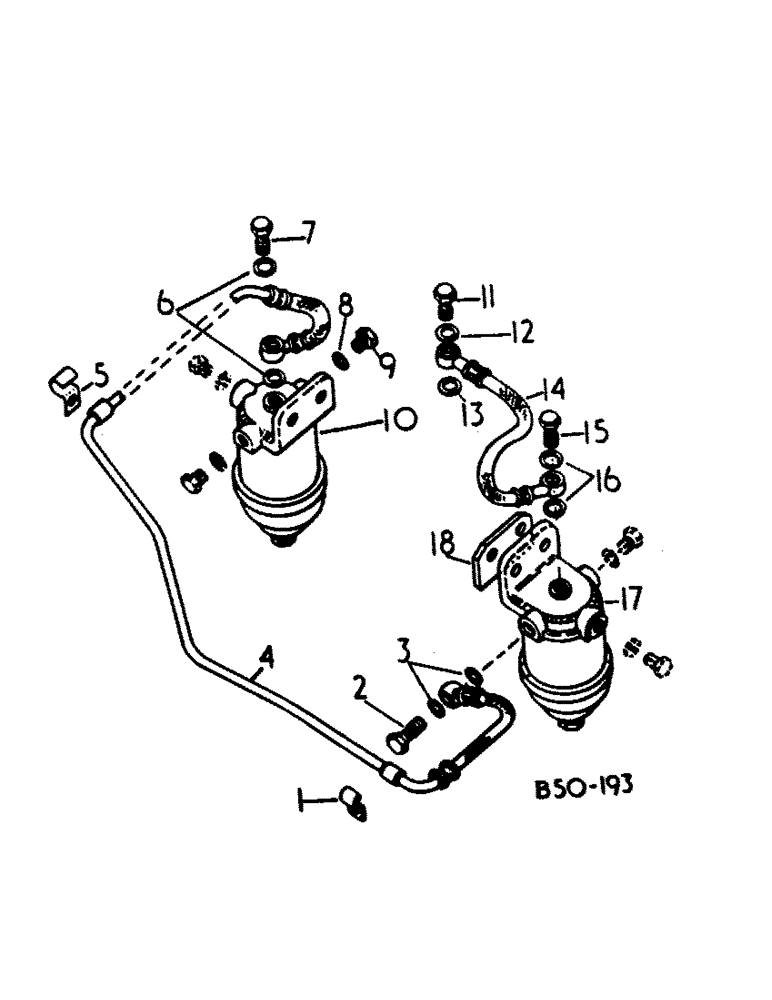

Запчасти Case IH 385 (12-32) - POWER, FUEL FILTER CONNECTIONS Power

1

3056927R1

CLAMP

CLIP, fuel line

1шт.

2

710098R2

BANJO BOLT,M14 x 1.5 x 32mm

SCREW, hollow

1шт.

3

933610R1

SEALING RING,M14 x 18 x 1.8

Packing M14 x 18 x 1.8

2шт.

4

3228065R1

FUEL HOSE

1шт.

5

711733R1

CLIP

fuel line

1шт.

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

flat round hole

1шт.

6

933610R1

SEALING RING,M14 x 18 x 1.8

Packing M14 x 18 x 1.8

2шт.

7

710098R2

BANJO BOLT,M14 x 1.5 x 32mm

SCREW, hollow

1шт.

8

933610R1

SEALING RING,M14 x 18 x 1.8

Packing M14 x 18 x 1.8

1шт.

9

3056600R1

ADAPTER

1шт.

10

3228064R91

FILTER

ASSY, fuel, for components see list of parts under details of fuel filter

1шт.

712616R1

PLUG,Hex, M14 x 1.5

2шт.

933610R1

SEALING RING,M14 x 18 x 1.8

Packing M14 x 18 x 1.8

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

933620R1

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 1.1mm Thk

Saucer M10.2 ID x 20 OD x 1.1 Thk

2шт.

11

717200R1

BANJO BOLT,M12 x 1.5 x 28mm

SCREW, hollow

1шт.

12

713845R1

SEALING WASHER,M12 x 15.5 x 1.5

Packing M12 x 15.5 x 1.5

1шт.

13

934005R1

SEALING RING,12mm ID x 18mm OD x 1.5mm Thk

Packing M12 x 18 x 1.5

1шт.

14

3132324R1

HOSE,8mm ID x 275mm L

fuel

1шт.

15

710098R2

BANJO BOLT,M14 x 1.5 x 32mm

SCREW, hollow

1шт.

16

933610R1

SEALING RING,M14 x 18 x 1.8

Packing M14 x 18 x 1.8

2шт.

17

3228064R91

FILTER

ASSY, fuel, for components see list of parts under details of fuel filter

1шт.

712616R1

PLUG,Hex, M14 x 1.5

2шт.

933610R1

SEALING RING,M14 x 18 x 1.8

Packing M14 x 18 x 1.8

2шт.

18

3059289R1

PLATE

fuel filter

1шт.

933620R1

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 1.1mm Thk

2шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

3/8 x 1-1/8 pln type 5

2шт.
