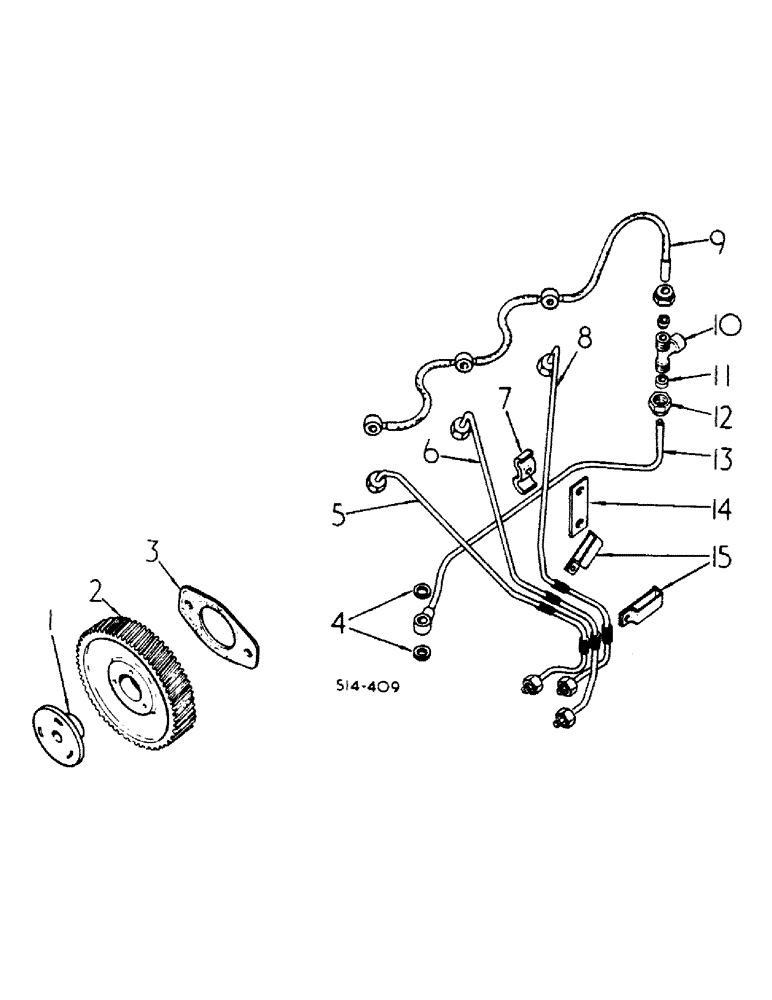

Запчасти Case IH 385 (12-31) - POWER, FUEL INJECTION PIPES AND PUMP GEAR Power

1

3055067R2

HUB

gear injection pump

1шт.

25228R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

5/16 x 3/4 PHC type 8

3шт.

30183R1

WASHER,M8 x 21.5 x 2.5, HT

8.8 x 21 x 2.5mm PHC

3шт.

933981R1

NUT,M12 x 1.75, Cl 5

1шт.

933834R1

LOCK WASHER,M12

WASHER, 12mm pln lock

1шт.

2

3056885R3

PINION

GEAR, injection pump replaces 3055066R3

1шт.

3

3055384R1

GASKET

fuel injection pump

1шт.

4

713845R1

SEALING WASHER,M12 x 15.5 x 1.5

Packing M12 x 15.5 x 1.5

2шт.

5

1808235C1

TUBE

PIPE, injection cylinder no. 1

1шт.

6

1808236C1

TUBE

PIPE, injection cylinder no. 2

1шт.

7

3055386R1

CLAMP

CLIP, fuel lines

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

8

1808237C1

TUBE

PIPE, injection cylinder no. 3

1шт.

9

3218126R1

TUBE

HOSE, leak line

1шт.

3218130R1

BANJO BOLT,Hex, M6 x 133.02mm

hollow M6

3шт.

933696R1

SEALING RING,M6 x 10 x 1

RING - packing, 6 x 10 mm

6шт.

10

3055739R1

TEE,1/2" - 20 x M14 x 1.5 ORFS x M14 x 1.5 ORFS

special tee

1шт.

11

3056136R1

SLEEVE,Cutting Ring, 8mm ID x 11mm OD x 9mm L

cutting

2шт.

12

3056137R1

PIPE UNION NUT,Coupling, M14 x 1.5

NUT, coupling

2шт.

13

3144414R1

PIPE

overflow

1шт.

14

3132174R1

LINK

fixing fuel line

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

15

3132766R1

CLAMP

pipe

2шт.

931330R1

SCREW,M6 x 1 x 12mm, Cl 8.8

M6 x 12 pan 40

2шт.

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

M6 znd class 8

2шт.
