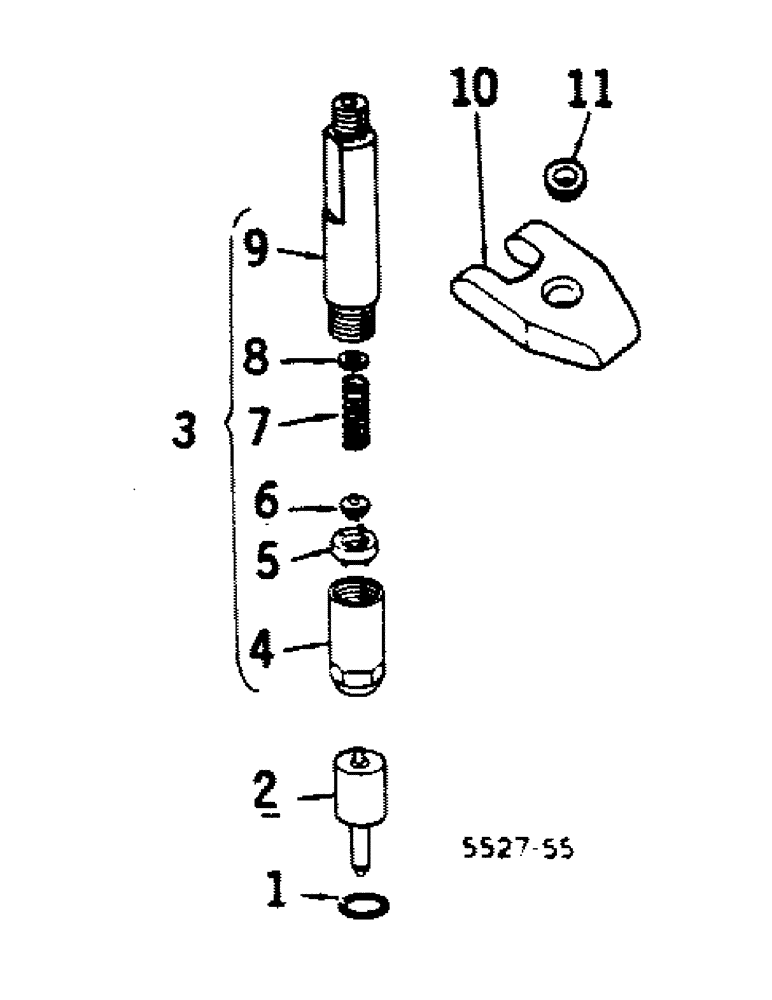

Запчасти Case IH 385 (12-27) - POWER, INJECTION NOZZLE HOLDER AND NOZZLE Power

NSS

NOT SOLD SEPARAT

HOLDER, injection nozzle, complete with nozzle, order individual components

3шт.

1

717203R1

O-RING,4mm Thk x 17mm ID, 72 Duro

3шт.

2

3218248R2

NOZZLE CAP

NOZZLE, injection

1шт.

3

3218247R92

HOLDER

nozzle, consists of items 4 thru 9 incl.

1шт.

4

3218388R1

NUT

nozzle cap

1шт.

5

3218387R1

SPACER

1шт.

6

3218386R2

SPACER

PIN, pressure

1шт.

7

3218385R2

SPRING

pressure

1шт.

8

3218657R1

SHIM

.500 mm

1шт.

8

3218658R1

SHIM

.525 mm

1шт.

8

3218659R1

SHIM

.550 mm

1шт.

8

3218660R1

SHIM

.575 mm

1шт.

8

3218661R1

SHIM

.600 mm

1шт.

8

3218662R1

SHIM

.700 mm

1шт.

8

3218663R1

SHIM

.800 mm

1шт.

8

3218664R1

SHIM

.900 mm

1шт.

9

3218389R1

BODY

nozzle holder

1шт.

10

3218128R1

RETAINER

3шт.

24477R1

BOLT,Hex, 5/16" - 18 x 1", Gr 8

3шт.

11

3218129R1

WASHER

retainer bolt

3шт.
