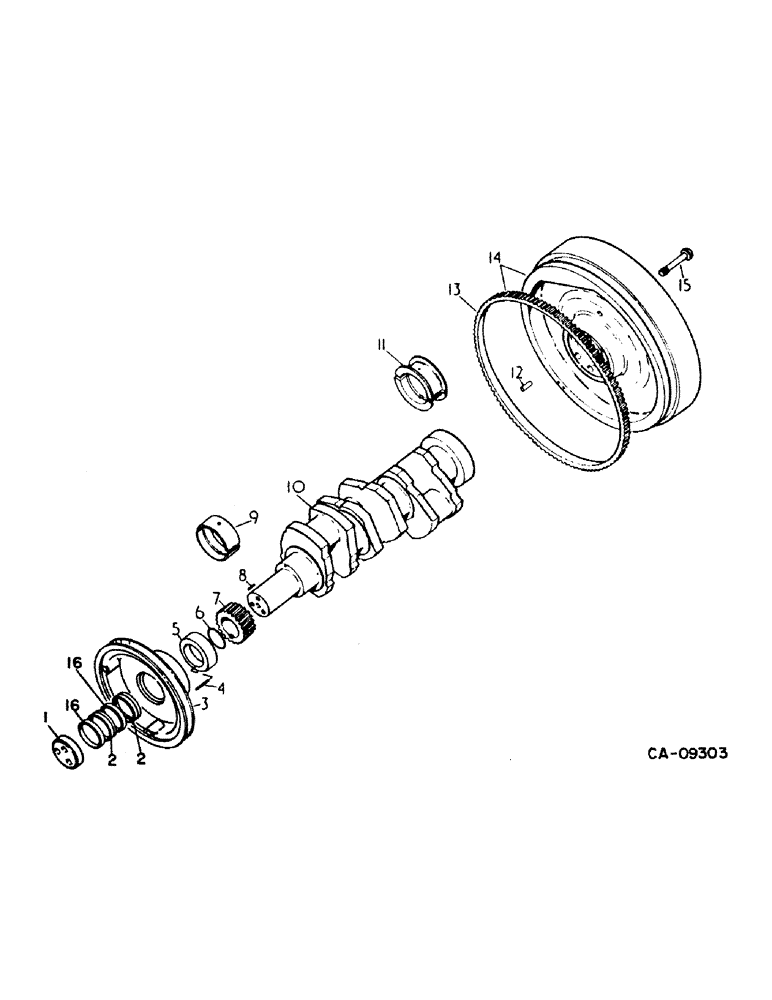

Запчасти Case IH 385 (12-22) - POWER, CRANKSHAFT, FLYWHEEL AND BEARINGS Power

1

3055154R1

WASHER

pressure

1шт.

308464R1

BOLT,Hex, 7/16" - 14 x 1 3/8", Gr 8

3шт.

2

3055152R91

RING

SPRING, annual

2шт.

3

1808494C1

PULLEY

crankshaft

1шт.

4

932681R1

DOWEL,4mm OD x 24mm L

Pin M4 x 24, Oval

1шт.

5

NSS

NOT SOLD SEPARAT

RING ASSY, distance, order package 3228133R93

1шт.

6

713778R1

O-RING,3mm Thk x 55mm ID

sealing

1шт.

7

3055028R1

PINION

GEAR, crankshaft pinion, 33T

1шт.

8

932169R1

LOCK PIN,M4 x 10, Slotted

Roll M4 x 10, Slotted

1шт.

9

3055130R21

CRANKSHAFT BEARING

BEARING ASSY, main std.

3шт.

9

3056832R21

BEARING ASSY

BEARING, main .025mm U/S

3шт.

10

3055746R92

CRANKSHAFT BEARING

W/BEARINGS, std., consists of

1шт.

932169R1

LOCK PIN,M4 x 10, Slotted

Roll M4 x 10, Slotted

1шт.

NSS

NOT SOLD SEPARAT

CRANKSHAFT

1шт.

37-2614

DOWEL,3/8" x 7/8"

PIN, 3/8 x 7/8 pln UHDN dowel

1шт.

3055028R1

PINION

GEAR, crankshaft pinion

1шт.

3055129R21

CRANKSHAFT BEARING

BEARING ASSY, main

1шт.

3055130R21

CRANKSHAFT BEARING

BEARING ASSY, main

3шт.

3055351R91

BEARING ASSY

BEARING ASSY, connecting rod

3шт.

10

3055770R92

CRANKSHAFT

W/BEARING 0.25MM U/S, consists of crankshaft (NSS)

1шт.

3055028R1

PINION

GEAR, crankshaft pinion

1шт.

37-2614

DOWEL,3/8" x 7/8"

PIN, 3/8 x 7/8 pln UHDN dowel

1шт.

932169R1

LOCK PIN,M4 x 10, Slotted

Roll M4 x 10, Slotted

1шт.

3056820R11

BEARING ASSY

BEARING, main 0.025mm U/S

1шт.

3056832R21

BEARING ASSY

BEARING, main 0.025mm U/S

3шт.

3056834R11

BEARING ASSY

BEARING, connecting rod 0.25mm U/S

3шт.

11

3055129R21

CRANKSHAFT BEARING

BEARING ASSY, main std.

1шт.

11

3056820R11

BEARING ASSY

BEARING ASSY, main 0.25mm U/S

1шт.

12

37-2614

DOWEL,3/8" x 7/8"

PIN, 3/8 x 7/8 pln UHDN dowel

1шт.

13

60883H

RING GEAR

GEAR, ring

1шт.

14

1808166C91

FLYWHEEL

ASSY

1шт.

15

3218037R1

BOLT,Hex, 1/2" - 20 x 58.5mm

Flywheel

7шт.

16

3055153R1

SPACER,56.64mm ID x 61.72mm OD x 10.16mm L

pressure

2шт.

3228133R93

SEAL KIT

PACKAGE, crankshaft oil seal, consists of retainer, distance (NSS), seal, radial lip (NSS)

1шт.

713778R1

O-RING,3mm Thk x 55mm ID

RING, sealing

1шт.

932681R1

DOWEL,4mm OD x 24mm L

Pin M4 x 24, Oval

1шт.

932224R1

DOWEL,M4 x 32, Oval

PIN, 4M6X32

1шт.

932652R1

DOWEL,4mm OD x 28mm L

PIN, 4M6X28

1шт.

NSS

NOT SOLD SEPARAT

INSTRUCTIONS

1шт.

3056820R11

BEARING ASSY

WASHER thrust, undersized, .010

1шт.

3056875R11

BEARING ASSY

WASHER thrust, undersized, .020

1шт.

3055776R11

BEARING ASSY

WASHER thrust, undersized, .030

1шт.
