Запчасти Case IH 385 (12-21) - POWER, CRANKCASE OIL PAN Power

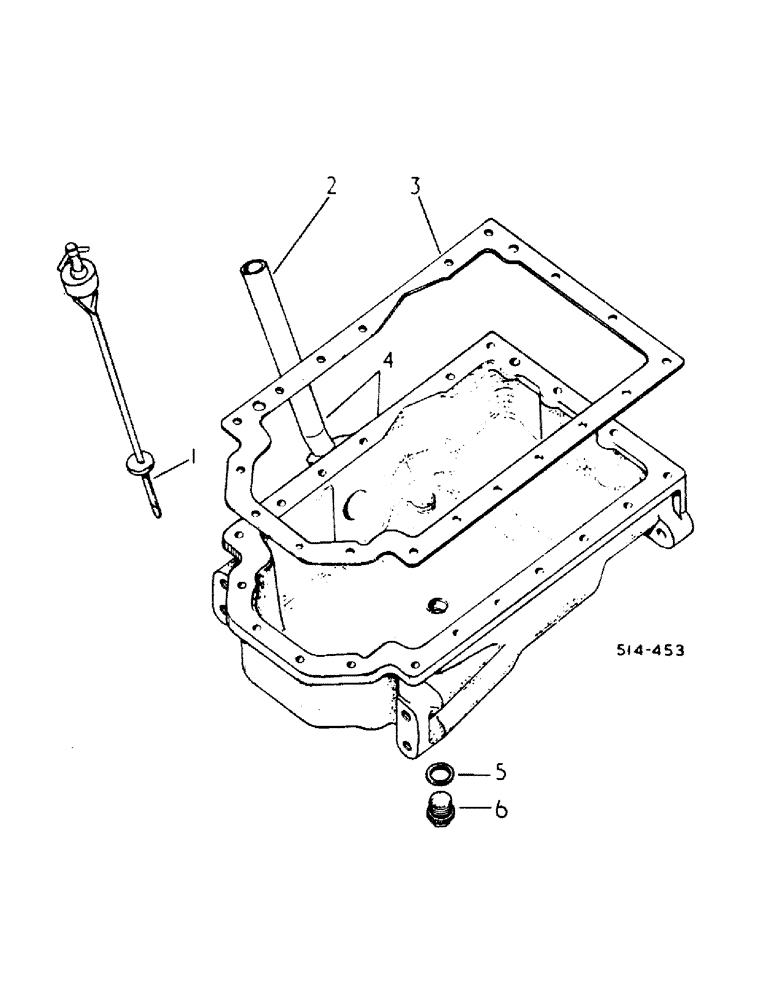

Схема запчастей Case IH 385 - (12-21) - POWER, CRANKCASE OIL PAN Power
1
6
2
5
3
4

Артикул

Название

Примечание

Количество

1

3136242R2

DIPSTICK

GAUGE ASSY, oil level

1шт.

2

3136241R1

TUBE,29.556 mm OD, 250 mm Length

PIPE, oil filling

1шт.

3

3055160R1

OIL PAN GASKET SET

oil pan

1шт.

4

3136042R95

SUMP

PAN ASSY, oil

1шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

4шт.

3218395R1

BELLEVILLE WASHER,8.199mm ID x 16mm OD x 0.9mm Thk

4шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

11шт.

3050129R1

LOCK WASHER

WASHER, lock

15шт.

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

2шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

2шт.

5

933608R1

SEALING RING,M26 x 31 x 2

WASHER, SEALING, , Packing M26 x 31 x 2

1шт.

6

3132544R2

PLUG

filler and drain

1шт.

Выбрано товаров: 12
