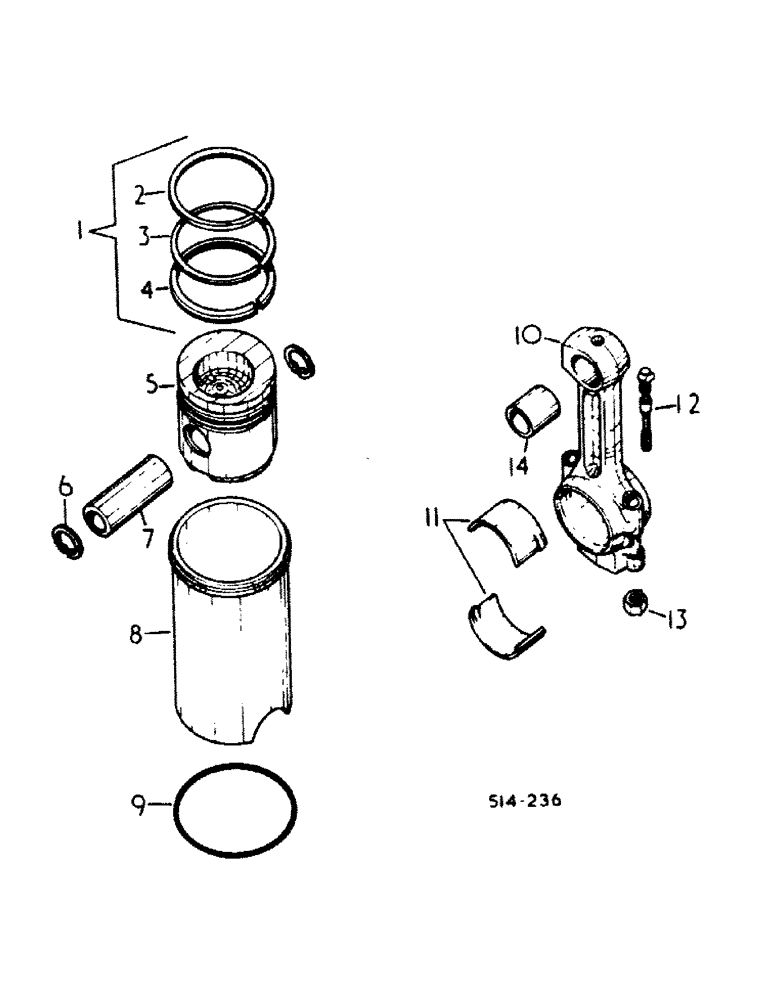

Запчасти Case IH 385 (12-13) - POWER, CONNECTING ROD, PISTONS AND SLEEVE Power

1

3218416R92

PISTON RING SET

RING SET, piston, chrome, used w/3 ring pistons

3шт.

2

NSS

NOT SOLD SEPARAT

RING, compression, first, used w/3 ring pistons, order set 3218416R92

3шт.

3

NSS

NOT SOLD SEPARAT

RING, compression, second, used w/3 ring pistons, order set 3218416R92

3шт.

4

NSS

NOT SOLD SEPARAT

RING, compression, third, used w/3 ring pistons, order set 3218416R92

3шт.

5

3218758R95

SLEEVE ASSY

PISTON W/SLEEVE

3шт.

6

933327R1

SNAP RING,M36, Int

SPRING, retainer

6шт.

7

3055217R2

PISTON PIN

PIN, piston

3шт.

8

3139587R3

SLEEVE CYLINDER

SLEEVE, cylinder

3шт.

9

3228348R1

RING,4.75mm Thk x 109.16mm ID

O-RING

3шт.

10

3055029R24

CONNECTING ROD

ROD ASSY, connecting

3шт.

11

3055351R91

BEARING ASSY

BEARING ASSY, connecting rod, std

3шт.

11

3056834R11

BEARING ASSY

BEARING ASSY, connecting rod 0.25mm U/S

3шт.

12

3055033R11

BOLT

W/Nut, Connecting rod

6шт.

13

NSS

NOT SOLD SEPARAT

NUT, connecting rod bolt

6шт.

14

3132018R2

BUSHING,35.34mm ID x 39.84mm OD x 34mm L

piston pin

3шт.
