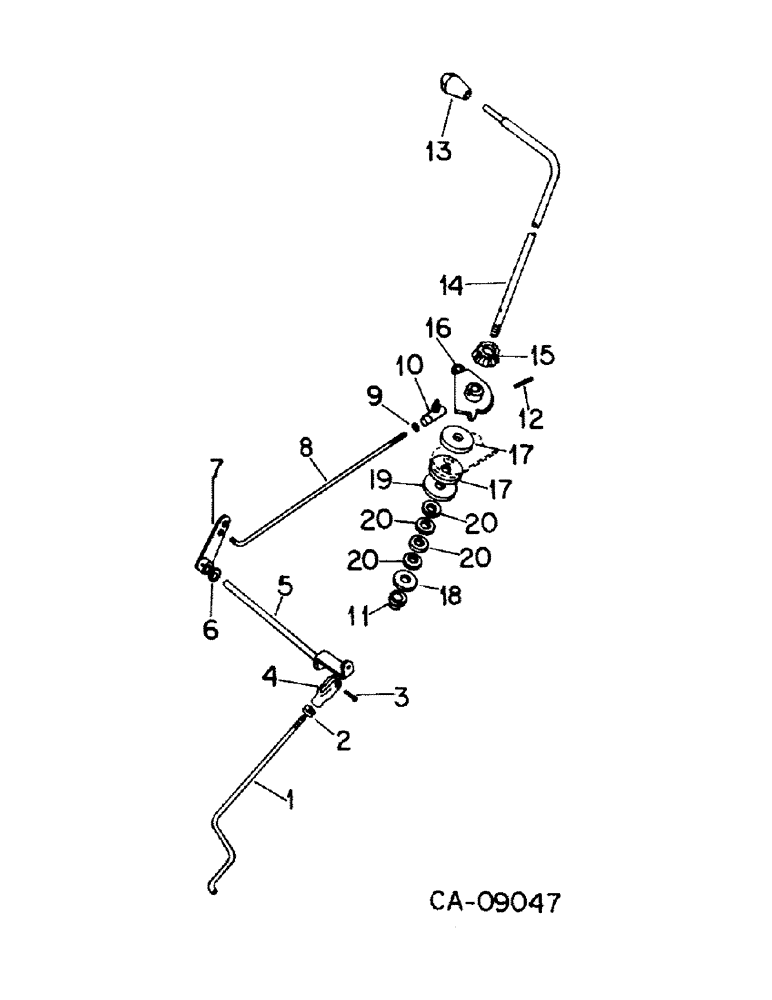

Запчасти Case IH 385 (12-08) - POWER, GOVERNOR CONTROLS, BOSCH Power

1

528321R3

ROD

front governor control

1шт.

103361

PIN, SPLIT (COTTER)

PIN, 1/16 x 1/2 pln cot

1шт.

2

114492

JAM NUT,Jam, 1/4"-28, G5

1/4-NF jam type 5

1шт.

3

103494

ADJUSTABLE CLEVIS,1/4" x .770"

PIN, 1/4 x .770 pln clevis

1шт.

NLS

NO LONGER SERVICED

PIN, 1/16 x 1/2 pln cot

1шт.

4

213-124

ADJUSTABLE CLEVIS,1/4"-28

CLEVIS, 1/4-28 x 1-11/16 pln sht adj

1шт.

5

528325R2

ARM

ASSY, governor control idler

1шт.

6

Q1597

WASHER

13/32 x 3/4 x 16 ga plain, or

1шт.

6

20285H

WASHER

13/32 x 3/4 x 11 ga plain

1шт.

7

539572R2

LEVER

ASSY, idler arm

1шт.

19313R1

PIN,5/32" x 7/8", Coiled

1шт.

8

528336R2

ROD

read governor control

1шт.

103361

PIN, SPLIT (COTTER)

PIN, 1/16 x 1/2 pln cot

1шт.

9

114492

JAM NUT,Jam, 1/4"-28, G5

1/4-NF pln jam type 5

1шт.

10

191474

BALL JOINT

JOINT, 1/4-28 ball, or

1шт.

10

192227

BALL JOINT

JOINT, 1/4-28 ball, or

1шт.

10

27258R1

BALL JOINT

JOINT, 1/4-28 ball

1шт.

25-114

NUT,1/4"-28, G5

1/4-NF pln type 5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

11

19764R1

LOCK NUT,1/2"-20

NUT, 1/2-NF pln P/T lock

1шт.

12

19313R1

PIN,5/32" x 7/8", Coiled

5/32 x 1 HV coiled spring

1шт.

13

402584R1

BUTTON

KNOB, governor control handle

1шт.

14

3121391R2

ROD

governor control handle

1шт.

15

528290R1

GUIDE RING

COLLAR, governor control handle

1шт.

222335

SET SCREW,Hex Soc, #8-32 x 3/8"

SCREW, no. 8 x 3/8 pln F/PT hdl/hs set

1шт.

16

528291R3

ARM ASSY.

ARM ASSY, governor control rod

1шт.

17

3123275R1

FRICTION WASHER

DISC, governor control friction

2шт.

18

22187R1

WASHER

.531 x 1.125 x .054

1шт.

19

22042R1

WASHER

.531 x 2.000 x .105

1шт.

20

1500778C1

DISC

spring 24.4 x 12.9 x 0.90

4шт.
