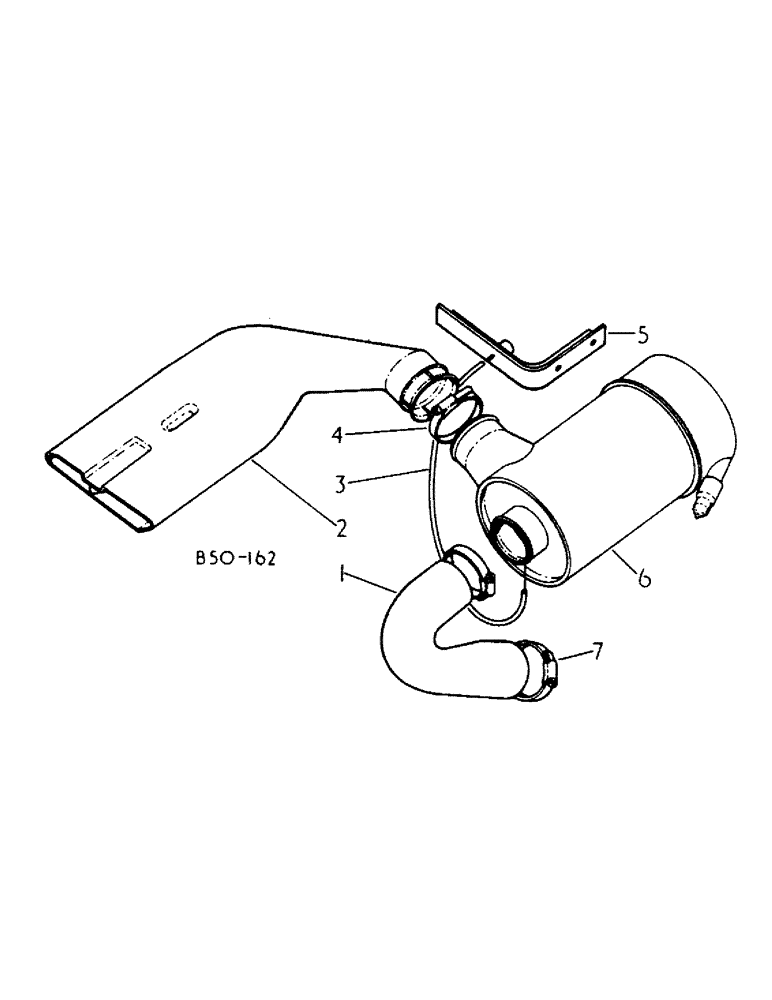

Запчасти Case IH 385 (12-01) - POWER, AIR CLEANER AND CONNECTIONS Power

1

1502062C1

INTAKE AIR HOSE,63.50 mm ID, 71.12 mm ID x 170.94 mm

HOSE, air cleaner outlet

1шт.

2

529864R1

DUCT

air inlet

1шт.

3

NSS

NOT SOLD SEPARAT

TUBE, air cleaner restriction ind use 230mm, 9 inches, from bulk roll marked 990015C1

1шт.

4

21423R1

CLAMP

3-5/16 hose

1шт.

5

1502064C1

SUPPORT

BRACKET, air cleaner mounting

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 type 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

6

3125248R93

AIR CLEANER

CLEANER ASSY, air, for components parts see list of parts under air cleaner

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 type 5

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

7

397256R1

HOSE CLAMP,#44, 2.31/3.25 Type F Worm, W/liner

CLAMP, no. 44 hose

2шт.
