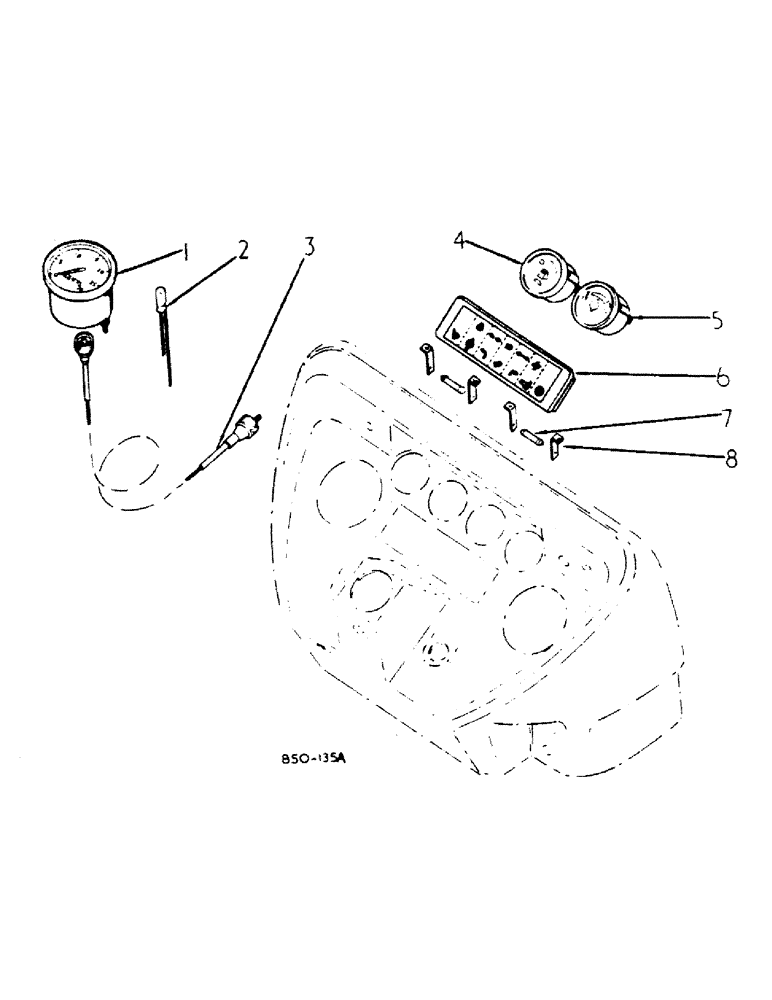

Запчасти Case IH 385 (11-02) - INSTRUMENTS, INSTRUMENTS Instruments

1

3125874R92

TACHOMETER

ASSY, 1950 RPM PTO

1шт.

2

3123661R1

HOLDER

LAMP ASSY, tachometer/speedometer

2шт.

529233R1

LAMP

12V-3W wedge type capless

2шт.

3

529235R2

FLEXIBLE DRIVE SHAFT

CABLE ASSY, tachometer drive

1шт.

289862C1

CABLE TIE,3/16" x 7"

STRAP, tachometer cable

2шт.

4

3121239R1

FUEL GAUGE

GAUGE ASSY, fuel, AC Delco, use only w/AC Delco sending unit 529790R1, or

1шт.

4

3129840R1

FUEL GAUGE

GAUGE ASSY, fuel, Icknield, use only w/Icknield sending unit 3129841R91

1шт.

5

3121240R1

ELECTRICAL GAUGE

GAUGE ASSY, water temp, AC Delco, use only w/AC Delco sending unit 3073787R91, or

1шт.

5

3127959R1

ELECTRICAL GAUGE

GAUGE ASSY, water temp, Icknield, use only w/Icknield sending unit 3127956R1

1шт.

6

1502006C1

HOLDER

warning light bulb

1шт.

529233R1

LAMP

12V-3W wedge type capless

6шт.

7

710196R1

BULB,C5W, 12V, 5W

CONTACT, lamp

4шт.

8

3121704R1

SCREW

no. 4-40 x 5/16 slt fil hd

4шт.

3121703R1

TERMINAL CONNECTOR

TERMINAL, 1/4 blade

4шт.

1093205R1

DECAL

PRODUCT GRAPHIC, speed chart MPH tractors w/13.6-28, 14.9-24 or 14.9-28 rear tires

1шт.
