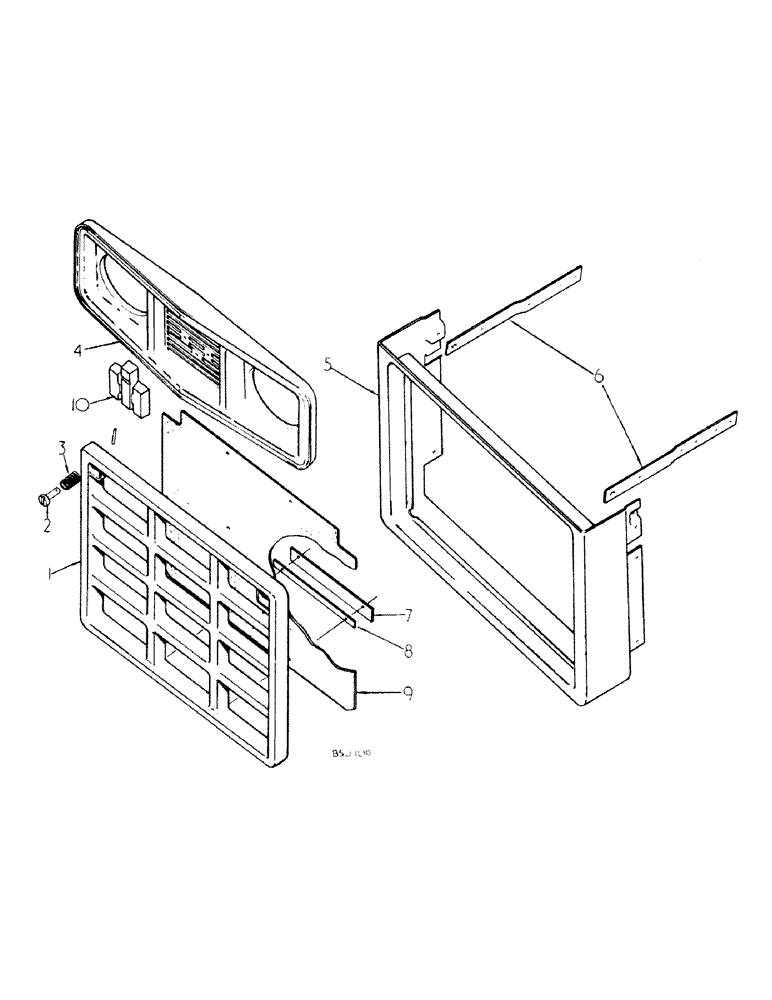

Запчасти Case IH 385 (06-04) - COOLING, RADIATOR GRILLE Cooling

1

3121672R1

GRILLE

radiator

1шт.

2

3113470R1

PIN

LATCH, grille

2шт.

26052R1

PIN,3/16" x 1 1/2", Coiled

2шт.

Q397

WASHER

11/32 x 3/4 x 16 ga

2шт.

3

532180R1

SPRING

grille latch

2шт.

4

3121675R2

GRILLE ASSY

upper

1шт.

163216

SHIELD

no. 10-16 x 1/2 P/HDCR tap

4шт.

5

3121231R1

HOUSING

lower grille

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

NLS

NO LONGER SERVICED

.531 x 1.062 x .074

2шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

6

3121232R1

SUPPORT

BAR, grille tie

2шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

6шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

109084

NUT,1/4"-20, G5

2шт.

95-11028

WASHER,1/4"

.281 x .625 x .051 pln

2шт.

7

3121653R1

BRACKET

grille retaining

1шт.

8

3121654R1

BAR

grille retaining

1шт.

436750

SCREW,Slotted Pan Hd, #10-32 x 1/2"

10-32 x 1/2 pan hd slt mach

2шт.

23505R1

WASHER

.281 x .625 x .054

2шт.

9

3121673R1

SCREEN

grille

1шт.

401499R1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 1/2"

SCREW, 10-24 x 1/2 hex washer tap, or

4шт.

1502019C1

SCREW,Hex Random Sl, #10 - 24 x 1/2"

10-24 x 1/2 hex random sltd

4шт.

10

120397C1

EMBLEM CASE/IH

PRODUCT GRAPHIC, IH grille

1шт.

260-5458

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

no. 10-16 x 1/2 P/HDCR tap

4шт.
