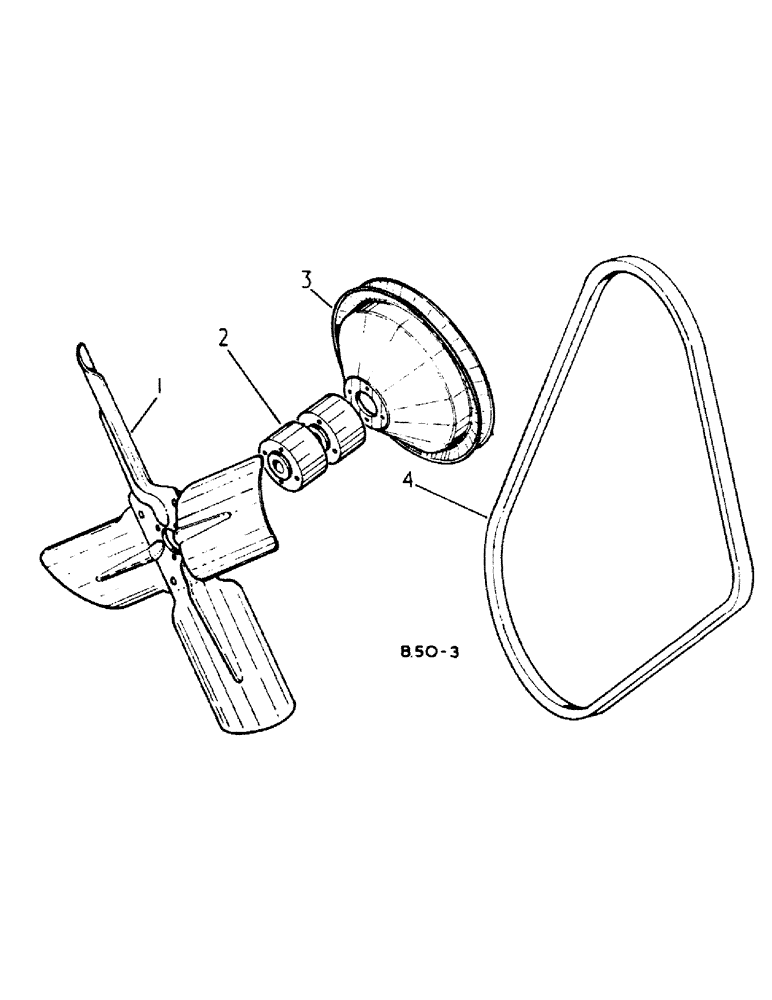

Запчасти Case IH 385 (06-03) - COOLING, FAN Cooling

1

1275810C1

FAN

BLADE ASSY, fan, 5 blade

1шт.

433065

BOLT,Hex, 1/4" - 28 x 3 1/2", Gr 5

1/4 NF x 3-1/2 pln type 5

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

95-11028

WASHER,1/4"

.281 x .625 x .051 pln

4шт.

2

403335R1

SPACER

fan

2шт.

3

401124R2

PULLEY

water pump

1шт.

4

131303C91

V-BELT

Fan

1шт.
