Запчасти Case IH 385 (02-01) - MISCELLANEOUS, PRODUCT GRAPHIC Accessories & Attachments / Miscellaneous

1287943C1

PRODUCT GRAPHIC

PRODUCT-GRAPHIC, 385 International LH

1шт.

1287944C1

PRODUCT GRAPHIC

PRODUCT-GRAPHIC, 385 International RH

1шт.

1265139C1

PRODUCT GRAPHIC

PRODUCT-GRAPHIC, caution instruction, general

1шт.

533864R1

PRODUCT GRAPHIC

PRODUCT-GRAPHIC, diesel fuel

1шт.

1135102R1

PRODUCT GRAPHIC

PRODUCT-GRAPHIC, PTO and raise response guide

1шт.

65771C1

DECAL

PRODUCT-GRAPHIC, side PTO caution inst

1шт.

537663R1

PRODUCT GRAPHIC

PRODUCT-GRAPHIC, drop response guide

1шт.

537664R1

PRODUCT GRAPHIC

PRODUCT-GRAPHIC, draft control guide

1шт.

1093228R1

PRODUCT GRAPHIC

PRODUCT-GRAPHIC, patents

1шт.

1135126R1

PRODUCT GRAPHIC

PRODUCT-GRAPHIC, fuel control diesel

1шт.

1093171R1

DECAL

PRODUCT-GRAPHIC, product operation warning instruction

1шт.

1093173R1

PRODUCT GRAPHIC

PRODUCT-GRAPHIC, fuel filter and water separator instructions

1шт.

1093174R1

PRODUCT GRAPHIC

PRODUCT-GRAPHIC, alternator

1шт.

1093175R1

PRODUCT GRAPHIC

PRODUCT-GRAPHIC, anti-freeze

1шт.

1135340R1

PRODUCT GRAPHIC

PRODUCT-GRAPHIC, fuse box symbols

1шт.

1093204R1

PRODUCT GRAPHIC

PRODUCT-GRAPHIC, 7 pin socket

1шт.

64520C1

PRODUCT GRAPHIC

PRODUCT-GRAPHIC, operator caution

1шт.

64553C2

PRODUCT GRAPHIC

PRODUCT-GRAPHIC, power drive caution

1шт.

1265125C1

PRODUCT GRAPHIC

PRODUCT-GRAPHIC, dual PTO

1шт.

1265116C1

PRODUCT GRAPHIC

PRODUCT-GRAPHIC, light switch

1шт.

1265117C1

PRODUCT GRAPHIC

turn signal

1шт.

1273644C1

DECAL

PRODUCT-GRAPHIC, dimmer switch

1шт.

1287945C1

DECAL

PRODUCT-GRAPHIC, IPTO overspeed, 600 RPM maximum

1шт.

1093205R1

DECAL

PRODUCT-GRAPHIC, speed chart mile/h

1шт.

1135111R1

DECAL

PRODUCT-GRAPHIC, range, high and low, tractors w/forward and reverse

1шт.

Decal has rabbit on top and turtle on bottom not H & L.

1шт.

533593R1

PRODUCT GRAPHIC

PRODUCT-GRAPHIC, forward/reverse

1шт.

1135097R1

DECAL

PRODUCT-GRAPHIC, 1/2 speed, tractors w/forward and reverse

1шт.

1135098R1

DECAL

PRODUCT-GRAPHIC, 3/4 speed, tractors w/forward and reverse

1шт.

533592R1

PRODUCT GRAPHIC

PRODUCT-GRAPHIC, governor control

1шт.

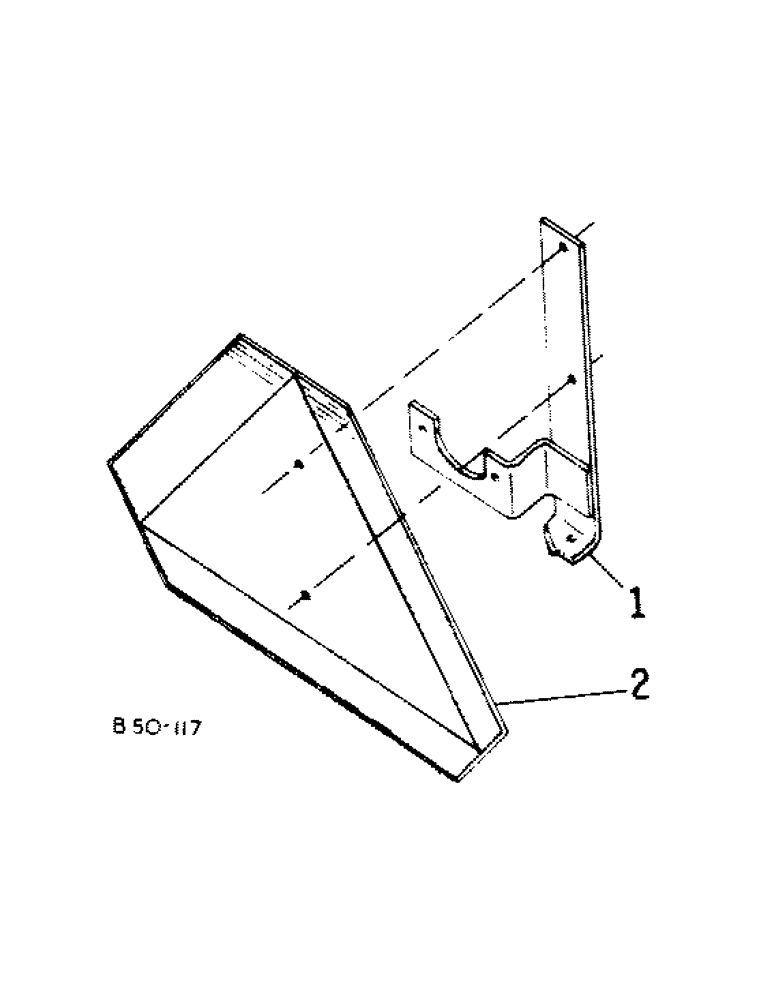

114623C2

BRACKET

ASSY, emblem mounting, replaces 1265037C1, slow moving vehicle emblem

1шт.

1265035C1

EMBLEM

PRODUCT-GRAPHIC, slow moving vehicle emblem

1шт.

449625

SELF-TAP SCREW,Slotted Pan Hd, #10 x 5/8"

SCREW, no. 10 x 5/8 P/HDCR tap, slow moving vehicle emblem

2шт.

120391

WASHER,#10

.219 x .500 x .036, slow moving vehicle emblem

2шт.
