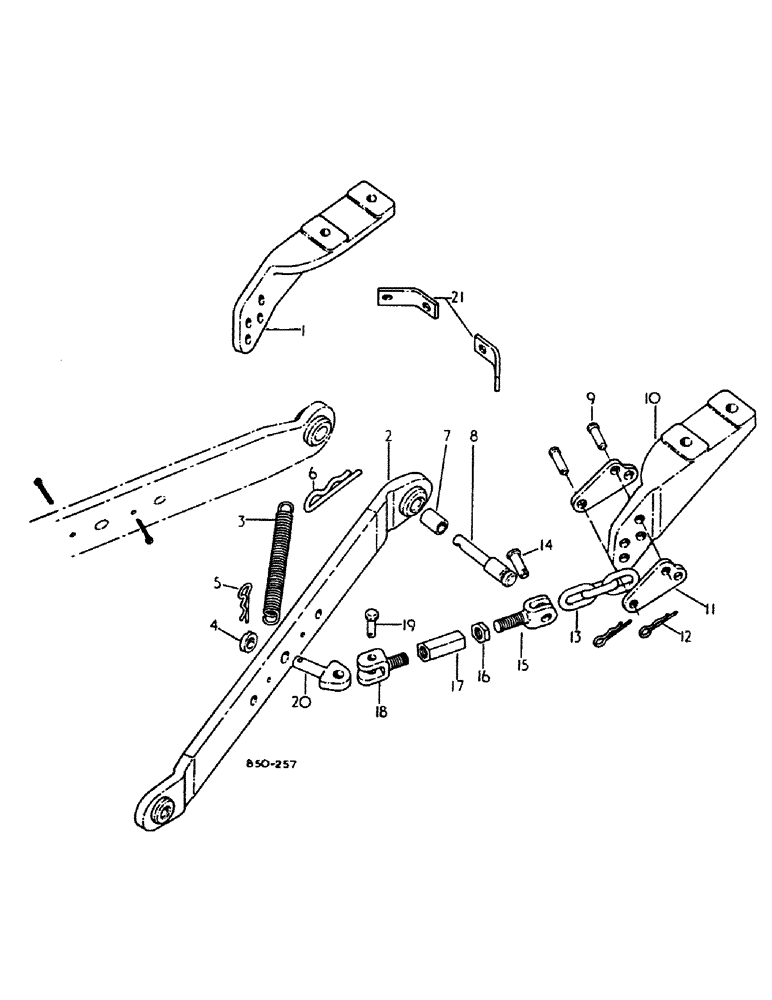

Запчасти Case IH 385 (09-03) - FRAME, LOWER LINK, 3 POINT HITCH WITH OUTSIDE CHECK CHAINS (12) - FRAME

1

529874R1

SUPPORT

BRACKET, check chain LH

1шт.

271562

SHIELD,Hex, 5/8" - 11 x 2", Gr 5

5/8 x 2 pln type 5

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

2

1286791C91

LOWER LINK

LINK ASSY, lower 1-3/8 inch implement balls

2шт.

2

529870R1

LOWER LINK

LINK ASSY, lower 1-3/4 inch implement balls

2шт.

32-2024

COTTER PIN,5/16" x 1 1/2"

PIN, SPLIT (COTTER), 5/16" x 1 1/2"

4шт.

533189R1

PIN

ASSY, lower link drawbar

2шт.

3

662632R1

SPRING

check chain restraining

2шт.

4

529894R1

WASHER

adj eyebolt chain pin

2шт.

5

529895R1

CLIP

PIN, spring

2шт.

6

538406R1

COTTER PIN

PIN, quick attachable cotter

2шт.

7

530826R1

BUSHING

lower link

2шт.

8

530825R1

PIN,31.75mm OD x 119.84mm L

lower link

2шт.

9

528112R2

PIN,15.77mm OD x 54.61mm L

limiter chain

4шт.

10

529875R1

SUPPORT

BRACKET, check chain RH

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8 x 2 pln type 5

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

11

3129005R1

SUPPORT

STRAP, check chain adj

4шт.

12

720631R1

LINCH PIN

PIN, cotter

6шт.

13

3129007R1

CHAIN (AG)

CHAIN, limiter

2шт.

14

403037R2

PIN

limiter chain

2шт.

103396

PIN, SPLIT (COTTER),5/32" x 1"

5/32" x 1"

2шт.

15

70622C1

CLEVIS,7/8" - 14

limiter chain

2шт.

16

425-1514

JAM NUT,Jam, 7/8"-14, G5

7/8-NF pln jam type 5

2шт.

17

3113596R1

NUT

adjustment

2шт.

18

3118016R1

CLEVIS,7/8" - 14

LH thread

2шт.

19

528112R2

PIN,15.77mm OD x 54.61mm L

limiter chain clevis

2шт.

20

3129014R1

EYEBOLT

BOLT, eye rear stab

2шт.

21

3121228R1

BRACKET

sway chain

2шт.

271554

GREASE,Hex, 5/8" - 11 x 1", Gr 5

5/8 x 1 pln type 5

2шт.

1092610R2

DECAL

PRODUCT-GRAPHIC, sway chains

1шт.
