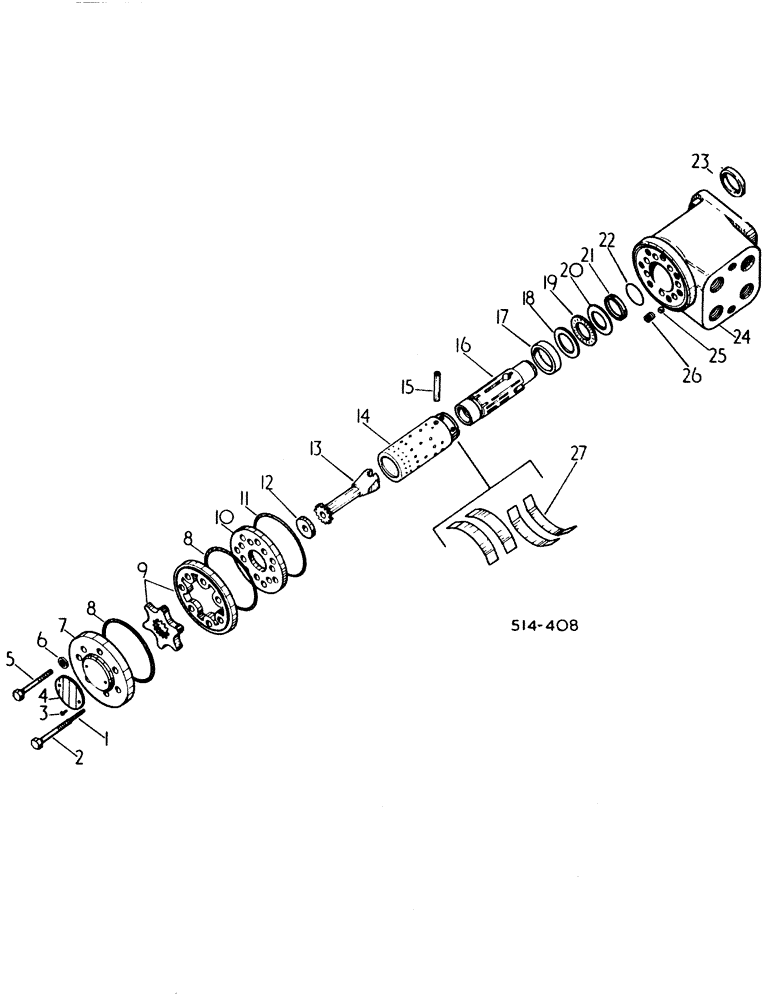

Запчасти Case IH 385 (10-18) - HYDRAULICS, INTEGRAL HYDROSTATIC POWER STEERING VALVE (07) - HYDRAULICS

67698C93

VALVE

ASSY, integral power steering

1шт.

1

3112271R1

PIN, ROLL

ed

1шт.

2

3146907R1

BOLT,M8 x 1 x 35mm, Drilled

drilled

1шт.

3

NSS

NOT SOLD SEPARAT

SCREW

2шт.

4

NSS

NOT SOLD SEPARAT

PLATE, rating

1шт.

5

3146908R1

BOLT,M8 x 1 x 35mm

plain

6шт.

6

NSS

NOT SOLD SEPARAT

WASHER, order seal & spring package 1500443C91

1шт.

7

1500444C1

CAP

end

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING, order seal and spring package 1500443C91

1шт.

9

538918R1

ROTOR ASSY.

SET, rotor

1шт.

10

3112276R1

PLATE

valve

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING, order seal and spring package 1500443C91

1шт.

12

538916R1

SPACER

drive link

1шт.

13

538915R1

DRIVE SHAFT

LINK, drive

1шт.

14

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

15

3112269R1

PIN

cross

1шт.

16

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

17

3112264R1

RING

1шт.

18

NSS

NOT SOLD SEPARAT

RACE, bearing, order bearing assy 3234338R91

1шт.

19

NSS

NOT SOLD SEPARAT

BEARING, needle, order bearing assy 3234338R91

1шт.

20

NSS

NOT SOLD SEPARAT

WASHER, axial, order bearing assy 3234338R91

1шт.

21

NSS

NOT SOLD SEPARAT

RING, kin, order seal and spring package 1500443C91

1шт.

22

NSS

NOT SOLD SEPARAT

O-RING, order seal and spring package 1500443C91

1шт.

23

NSS

NOT SOLD SEPARAT

RING, seal, order seal and spring package 1500443C91

1шт.

24

NSS

NOT SOLD SEPARAT

HOUSING, consists of items 14 and 16

1шт.

25

3112270R1

BALL

steel

1шт.

26

3112272R1

BUSHING

threaded

1шт.

27

NSS

NOT SOLD SEPARAT

SPRING, leaf, order seal & spring package 1500443C91

4шт.

3234338R91

BEARING SET

ASSY, consists of items 18, 19 and 20

1шт.

1500443C91

SEAL KIT

PACKAGE, seal & spring service, consists of ring, dust seal (NSS), seal, lip (NSS), o-ring (NSS), o-ring (NSS), (2) o-ring (NSS), (7) washer (NSS), (2) spring, leaf (NSS), (2) spring, leaf (NSS)

1шт.
