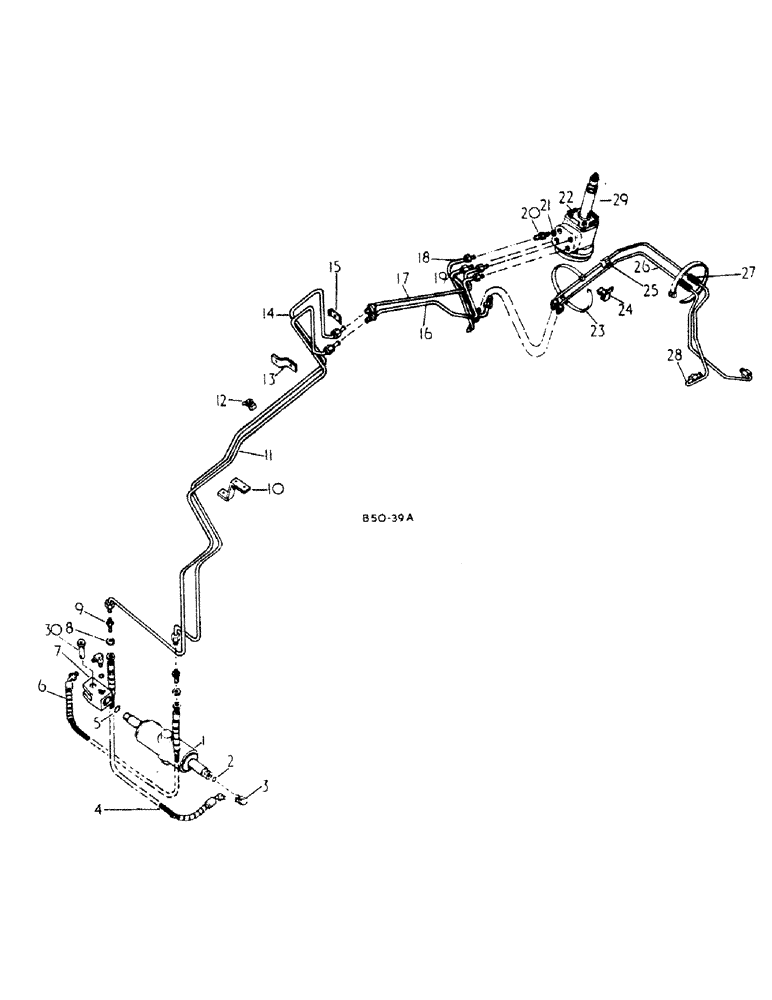

Запчасти Case IH 385 (10-03) - HYDRAULICS, POWER STEERING (07) - HYDRAULICS

1

549667R93

STEERING CYLINDER

CYLINDER ASSY, hyd power steering

1шт.

84336125R

REMAN-HYD CYLINDER

385 (1/84-12/90), Reman for New P/N 549667R93

1шт.

84336125C

CORE-HYD CYLINDER

Return Number

1шт.

55355C91

GASKET KIT

KIT, o-ring & seal service see parts catalog cyl-1 for service parts

1шт.

2

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

2шт.

3

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16-18 C-Z 37 deg hyd flared

2шт.

4

3121235R1

HOSE

ASSY, power steering cylinder

1шт.

5

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube

1шт.

6

3121235R1

HOSE

ASSY, power steering cylinder

1шт.

7

3125306R1

CLEVIS,9/16" - 18

cylinder end

1шт.

8

9403293

LOCK NUT,Blkhd, 9/16"-18

NUT, 9/16-18 C-Z bulkhead union lock

2шт.

9

9403254

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

UNION, 9/16-18 C-Z 37 deg hyd flared tube bulkhead

2шт.

115553

LOCK WASHER,Int Tooth, 5/8"

WASHER, LOCK, Int Tooth, 5/8"

2шт.

10

529646R1

BRACKET

front manifold support

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

11

3121237R1

TUBE ASSY.

TUBE ASSY, power steering RH forward

1шт.

12

384891R11

CLAMP

ASSY, power steering tube

1шт.

179795

TILLAGE BLADE

1/4 x 3/4 pln type 5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

13

529642R1

BRACKET

front manifold

1шт.

109084

NUT,1/4"-20, G5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

14

3121236R1

TUBE ASSY.

TUBE ASSY, power steering LH forward

1шт.

15

529644R11

CLAMP

ASSY, power steering tube

1шт.

NLS

NO LONGER SERVICED

1/4 x 7/8 pln type 5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

95-11028

WASHER,1/4"

.281 x .625 x .051 pln

1шт.

16

3116268R3

TUBE ASSY.

TUBE ASSY, power steering RH rear

1шт.

17

3116267R1

TUBE ASSY.

TUBE ASSY, power steering LH rear

1шт.

18

3116272R2

TUBE ASSY.

TUBE ASSY, power steering return forward

1шт.

19

3116271R2

TUBE ASSY.,0.375" OD, 12.44, 4.28" Length

TUBE ASSY, power steering pressure forward

1шт.

20

587639R1

HYD CONNECTOR,9/16"-18, 37 Degree x 3/4"-18, O-Ring

CONNECTOR, C-Z hyd fld 1/2 to 3/8 sht

4шт.

21

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube

4шт.

22

NSS

NOT SOLD SEPARAT

VALVE ASSY, integral power steering, for components see list of parts under details of integral hydrostatic steering valve

1шт.

23

306132C1

CABLE TIE,14.5" L

STRAP, rear manifold tubes

2шт.

24

529638R1

BRACKET

rear manifold

1шт.

25

529637R2

GUIDE

manifold tube

1шт.

26

1502293C1

TUBE

ASSY, power steering pressure rear

1шт.

3129261R1

BRACKET

pipe retaining

1шт.

27

536009R1

FUEL HOSE,0.31" ID x 2.50"

Spacer 0.31" ID x 2.50"

2шт.

28

3129257R1

TUBE ASSY.

TUBE ASSY, power steering return rear

1шт.

29

3121187R91

SHAFT

steering w/nut

1шт.

F19646

LOCK NUT,13/16"-20, Thin

NUT, hex.

1шт.

660200R1

SPACER,10.7mm ID x 17.14mm OD x 9.5mm L

3/8 x .375 x/strg pipe

2шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

30

3125305R1

PIN

power steering cylinder

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16 sh drive type lub

1шт.

9410280

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

3/8 C-Z hyd fld 90D swivel, tractors w/swept back axle, installed on elbow 9410976 on LH end of cyl rod to position hose in axle slot

1шт.
