(10-02) - HYDRAULICS, HYDRAULIC TRANSFER PUMP AND CONNECTIONS

Запчасти Case IH 385 (10-02) - HYDRAULICS, HYDRAULIC TRANSFER PUMP AND CONNECTIONS (07) - HYDRAULICS

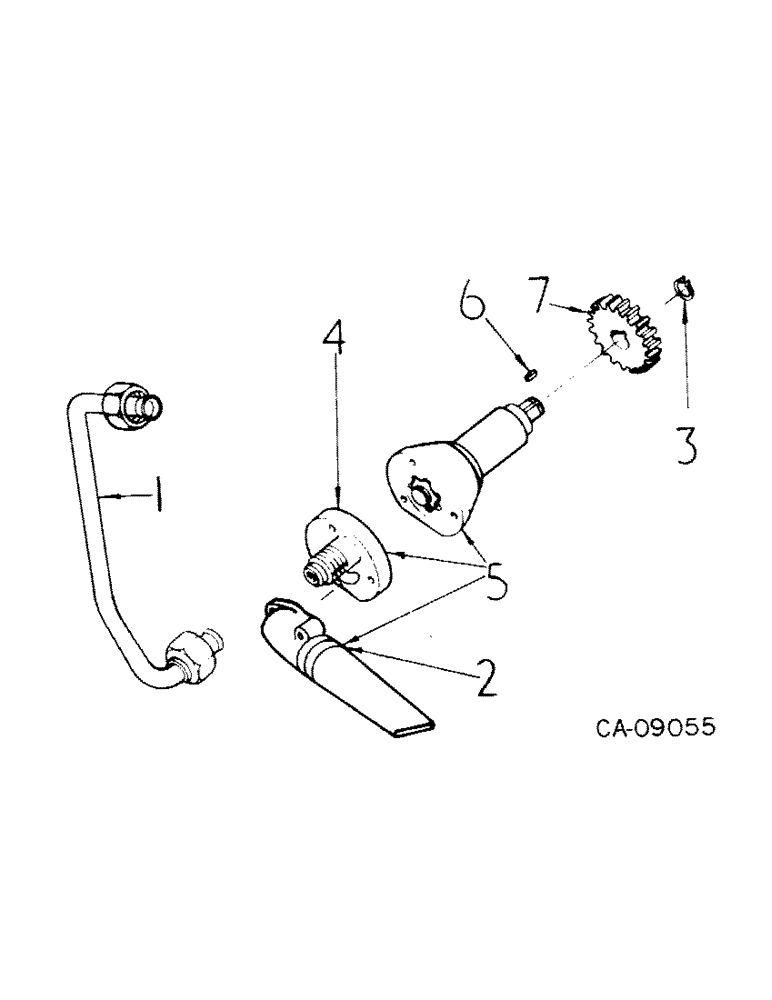

Схема запчастей Case IH 385 - (10-02) - HYDRAULICS, HYDRAULIC TRANSFER PUMP AND CONNECTIONS (07) - HYDRAULICS
7
2
6
5
1
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

527423R1

PRESSURE PIPE

PIPE ASSY, transfer pump outlet

1шт.

2

1282191C1

STRAINER ELEMENT

STRAINER ASSY, pump

1шт.

3

3042123R1

RING, SNAP

RING, driven gear retaining snap

1шт.

4

3123727R1

PLATE

end

1шт.

5

3123726R91

PUMP, HYDRAULIC

PUMP ASSY, transfer

1шт.

6

529100R1

BUCKET TOOTH KEY

KEY, transfer pump

1шт.

7

528095R1

PINION

GEAR, transfer pump driven, 21T

1шт.
