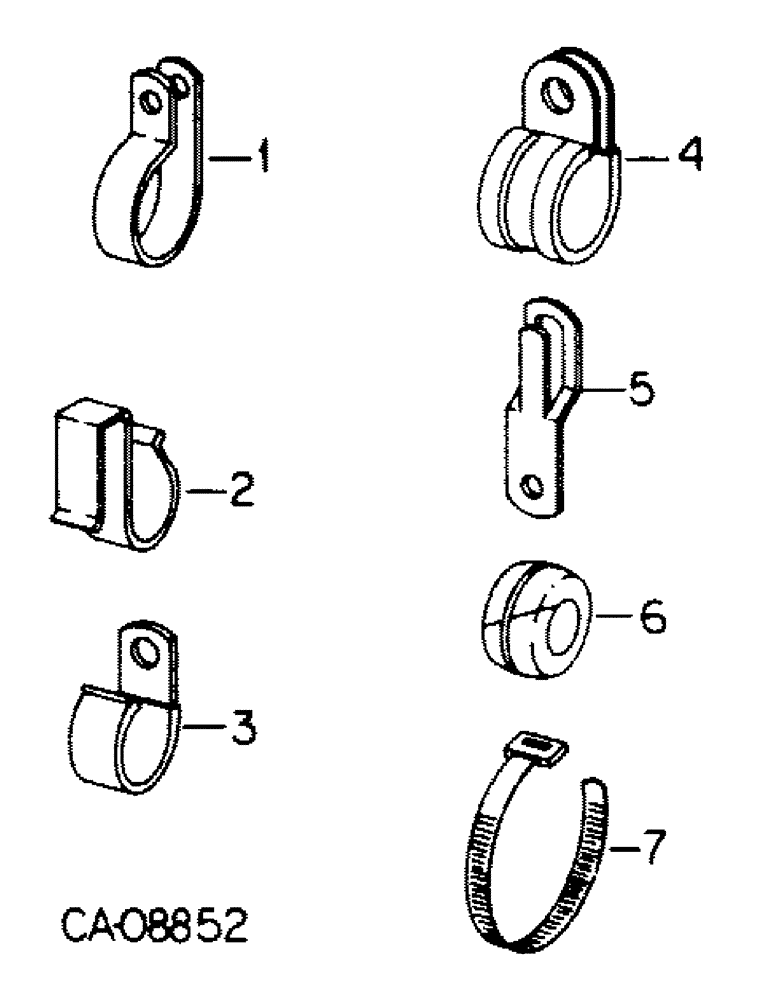

Запчасти Case IH 385 (08-13) - ELECTRICAL, CLIPS, CLAMPS, STRAPS AND GROMMETS (06) - ELECTRICAL

1

3116240R1

CLIP

CLAMP, .56 dia. closed, battery cable

1шт.

450643

SCREW,Hex Hd, #8-32 x 3/8"

no. 8 x 3/8 pln h/hd mach

1шт.

492-11008

LOCK WASHER,#8

Washer, Lock, #8

1шт.

225-10108

NUT,#8-32

Machine screw #8-32

1шт.

2

3116918R1

CABLE CLIP

CLIP, .25 max dia. edge, air cleaner bracket top

1шт.

2

3123109R1

CABLE CLIP

CLIP, .35 max dia. edge, temp. sender cable

1шт.

2

3125873R1

CLIP

.374 dia. multiple cable edge, front grille cables

2шт.

2

537024R1

CLIP

.46 dia. multiple cable edge, seat deck LH side, park brake

1шт.

2

537025R1

CLIP

.55 max dia. edge, steering support, brake cyl bracket

2шт.

2

535303R1

CABLE CLIP

CLIP, .95 max dia. edge, rear cable on battery tray

1шт.

3

366460R1

CABLE CLIP

CLIP, .25 dia. open, .41 bolt hole, front cover RH rear, grille bracket LH cable

2шт.

3

316433C1

CLAMP

CLIP, .50 dia. open, main harness

2шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

5/16 x 1/2 pln type 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, , Harness to instrument shroud, RH 3/8"

1шт.

4

3125823R1

CLIP

.75 dia. pipe, main harness to battery tray

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

5

708115R1

PLATE ASSY.

CLIP, spring type, combination stop/tail light

1шт.

6

705548R1

GROMMET

.25 ID x .56 OD x .25, rear fender top

1шт.

6

3115463R1

GROMMET

.50 ID x .88 OD x .25, fender side sheet

2шт.

6

3123681R1

GROMMET

.31 ID x .56 OD x .25, rear fender light

2шт.

7

289862C1

CABLE TIE,3/16" x 7"

STRAP, 1.75 max bundle cable

1шт.

7

306132C1

CABLE TIE,14.5" L

STRAP, 4.00 max bundle cable

1шт.
