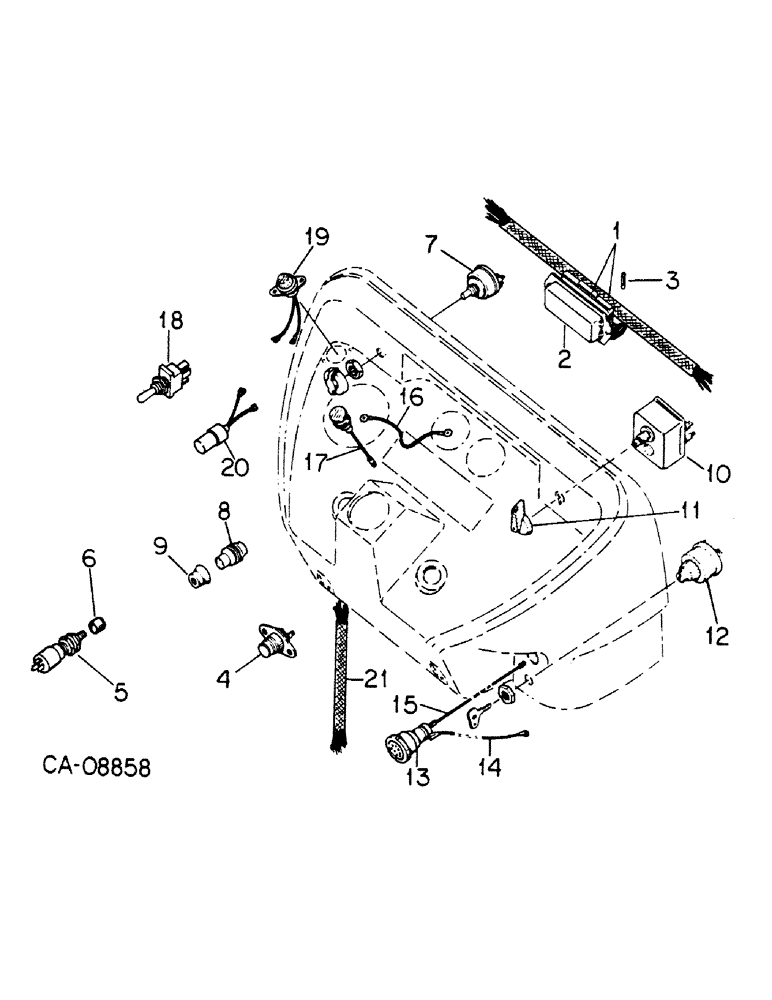

Запчасти Case IH 385 (08-12) - ELECTRICAL, INSTRUMENT PANEL WIRING, SWITCHES AND FUSE BOX (06) - ELECTRICAL

1

1500563C93

HARNESS

ASSY, main cable, includes ref. no. 2 plus

1шт.

3123158R1

PACKAGE

alternator plug connections

1шт.

3129948R1

BOX, FUSE

PACKAGE, fuse box

1шт.

2

NSS

NOT SOLD SEPARAT

BOX, fuse, part of main cable assy, only serviceable items are

1шт.

3123724R1

SLEEVE

fuse box

1шт.

159929

SCREW,Cross Pan Hd, #10 - 24 x 5/8"

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

120361

NUT,Hex Mach Screw, #10 - 24

2шт.

3123157R1

COVER

LID, fuse box cover

1шт.

3

3115813R1

FUSE

35 amp auto type, horn and ether start, flasher and cigar lighter, lighting

3шт.

3

3118918R1

FUSE

3AG amperes, gauges and warning lights

2шт.

4

397940R93

SWITCH

ether start push-button

1шт.

436730

LOCK SCREW,Slotted Pan Hd, #10-24 x 3/8"

SCREW, no. 10 x 3/8 znp P/HDS mach

2шт.

120361

NUT,Hex Mach Screw, #10 - 24

2шт.

5

3147137R1

SWITCH

SWITCH ASSY, park brake warning

1шт.

6

(Not used this application)

1шт.

7

107200C2

LIGHT SWITCH

SWITCH ASSY, basic lighting

1шт.

8

705266R91

HORN

SWITCH, horn

1шт.

9

1288026C1

COVER

horn switch

1шт.

10

131066C91

SWITCH

turn signal & flasher replaces 107334C91

1шт.

11

71485C1

PACKAGE

KIT, switch handle and hardware

1шт.

12

529800R91

SWITCH ASSY

ignition, includes 2 keys

1шт.

K962338

KEY

KEY, ignition (Replaces 3110259R1)

1шт.

13

3121407R92

LIGHTER, CIGARETTE

LIGHTER, cigar

1шт.

14

3123432R1

CABLE

ASSY, Serial Range: lighter-ground

1шт.

15

1502380C1

CABLE

ASSY, lighter to hazard switch

1шт.

16

3123431R1

CABLE

ASSY, tachometer to fuel gauge ground

1шт.

160221

SCREW,Cross Pan Hd, #12 - 24 x 1/2"

1шт.

121744

ANGLE

Washer, Lock, #12

1шт.

121743

CHAIN,#12 - 24

no. 12 mach screw type 1

1шт.

17

(Not used this application)

1шт.

18

3125854R1

SWITCH

ASSY, headlight dip, replaces 3121406R1

1шт.

120395

WASHER

.469 x .922 x .051

1шт.

19

(Not used this application)

1шт.

20

3125984R2

FLASHER UNIT

park brake warning

1шт.

21

1500963C1

HARNESS

ASSY, instrument

1шт.
