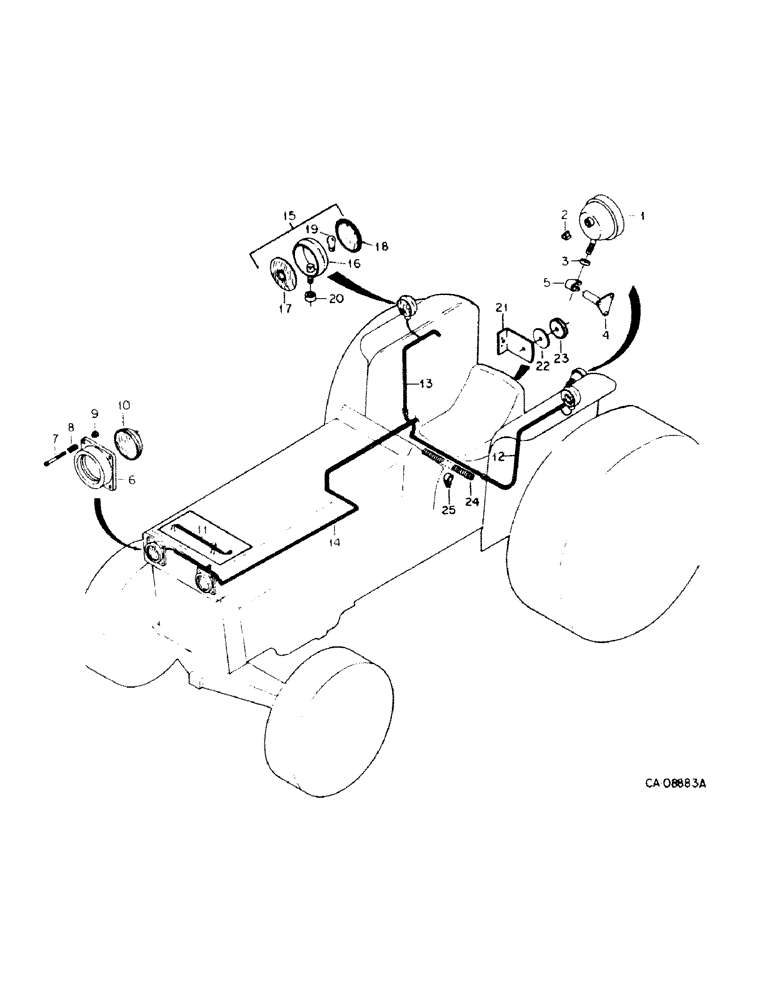

Запчасти Case IH 385 (08-10) - ELECTRICAL, TRACTOR LIGHTING AND CONNECTIONS, TRACTORS WITH CROWN TYPE FENDERS (06) - ELECTRICAL

1

387729R92

LIGHT ASSY.

LIGHT ASSY, sealed beam combination stop & tail, only serviceable item are

1шт.

80627C1

LIGHT ASSY.

LAMP, sealed beam w/bulb includes 142456

1шт.

NLS

NO LONGER SERVICED

LAMP, type C-6 trade #1141

1шт.

676078R1

RETAINER

light, Midwest

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

2

(Not used this application)

1шт.

3

365503R1

SPACER

combination light

1шт.

4

401471R1

POST

ASSY, combination light

1шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

3/8 x 5/8 type 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

5

350920R1

CLAMP

combination light

1шт.

6

3121674R1

HOUSING

headlight

2шт.

7

3121658R1

SCREW

headlight

8шт.

231-24109

LOCK NUT,#10-32, GB

NUT, no. 10-32 cad hex lock

8шт.

120391

WASHER,#10

.219 x .500 x .036

8шт.

8

528533R1

SPRING

mtg

8шт.

9

537014R1

INSERT

housing

8шт.

10

3072947R91

HEADLIGHT

HEAD LIGHT ASSY, 12 volt

2шт.

11

3114825R91

HARNESS

ASSY, headlight, if required

1шт.

12

3123677R1

HARNESS

ASSY, fender LH

1шт.

13

3123678R2

HARNESS

ASSY, fender RH

1шт.

14

NSS

NOT SOLD SEPARAT

HARNESS ASSY, main cable, refer to instrument panel wiring listing, this group, for details

1шт.

15

67538C92

HEADLIGHT

LIGHT ASSY, flasher, only serviceable item is

1шт.

9417866

BULB,C6, #1156, 12.8V

LAMP, type C-6 trade #1156

2шт.

15

3123675R92

HEADLIGHT

LIGHT ASSY, flasher, for service replacement, order light assy, 67538C92, consists of ref. nos. 16 thru 19

1шт.

16

NSS

NOT SOLD SEPARAT

HOUSING, flasher light

2шт.

899282R1

O-RING

rubber sealing

4шт.

131718

SHIM

7/16 int tooth lock

2шт.

425-157

JAM NUT,Jam, 7/16"-20, G5

2шт.

17

3112682R1

LENS

amber front

2шт.

18

3112683R1

LENS

amber rear

2шт.

19

3025210R91

BULB

LAMP, 12V/21W

2шт.

20

3073103R1

SPACER

light mounting, seat

2шт.

21

3125247R2

BRACKET

reflector

2шт.

167047

SELF-TAP SCREW,Cross Pan Hd, #8 - 32 x 1/2"

SCREW, no. 8 x 1/2 P/HDCR tap

4шт.

22

3112361R1

PAD, reflector

2шт.

171656

SCREW

6 x 1/2 P/HDS tap

2шт.

23

3112360R91

REFLECTOR

red, or

2шт.

23

3118665R1

REFLECTOR

W/CUP WASHER, red

2шт.

3112698R1

WASHER

nylon cup

2шт.

24

1280346C1

CONDUIT

INSULATION, convoluted conduit, tractors w/roll-over protective structure

1шт.

25

1280347C1

CLIP

guide, tractors w/roll-over protective structure

6шт.
