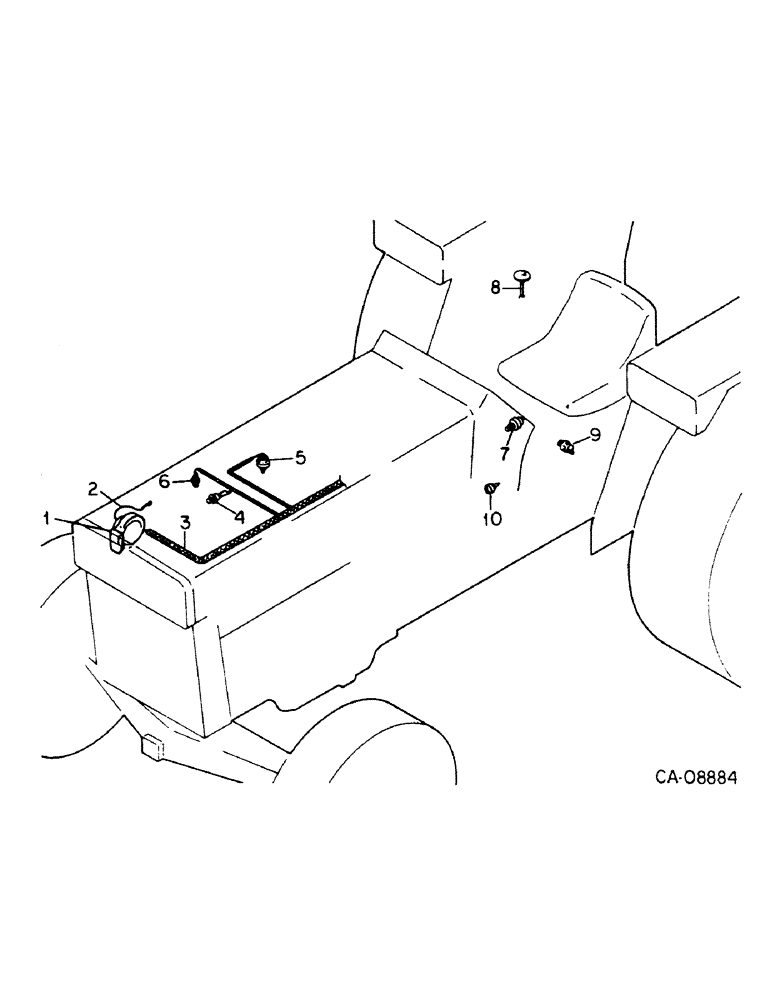

Запчасти Case IH 385 (08-09) - ELECTRICAL, CHASSIS WIRING, SWITCHES AND CONNECTIONS (06) - ELECTRICAL

1

3121205R91

HORN

ASSY

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

2шт.

3119440R1

LOCK NUT

1/4 self-locking

2шт.

2

3117533R1

CABLE

ASSY, Serial Range: horn-ground

1шт.

3

NSS

NOT SOLD SEPARAT

HARNESS ASSY, main cable, refer to instrument panel wiring listing, this group

1шт.

4

3224405R91

RESTRICTION SWITCH

SWITCH ASSY, air cleaner restriction indicator, on air cleaner mounting bracket

1шт.

5

91450C1

SWITCH, PRESSURE

SWITCH ASSY, engine oil pressure, on top of oil filter base, replaces 3129031R91

1шт.

6

3073787R91

TRANSMITTER

water temp, AC Delco, use only w/AC Delco gauge 3121240R1, located on water pump carrier, or

1шт.

6

3127956R1

TEMPERATURE SENDER

TRANSMITTER, water temp, Icknield, use only w/Icknield gauge 3127959R1, located on water pump carrier

1шт.

7

(Not used this application)

1шт.

8

NSS

NOT SOLD SEPARAT

SENDING UNIT, fuel level, refer to group 12, fuel tank supports and piping listing

1шт.

9

(Not used this application)

1шт.

10

NSS

NOT SOLD SEPARAT

SWITCH ASSY, neutral starting, refer to neutral starting switch listing, this group

1шт.
