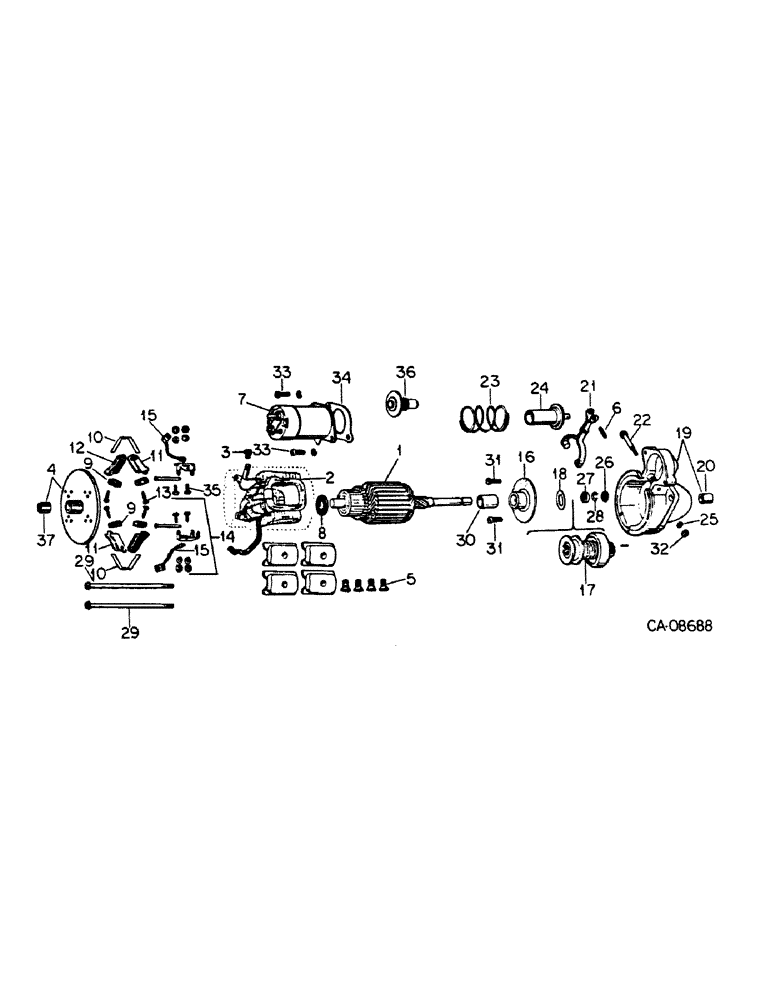

Запчасти Case IH 385 (08-06) - ELECTRICAL, CRANKING MOTOR, DELCO REMY (06) - ELECTRICAL

189330A5

STARTER MOTOR,12V, 2.8kW

MOTOR ASSY, cranking

1шт.

104200A1R

REMAN-STARTER

Remanufactured Starter

1шт.

104200A1C

CORE-STARTER

Return Part Number

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

BOLT, 3/8-16 x 1-1/4 pln type 5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

384396R1

SPADE TERMINAL,Male

TERMINAL

1шт.

1

1960866

ARMATURE

ARMATURE

1шт.

2

1986457

COIL

COIL ASSY, field

1шт.

3

1955946

GROMMET

GROMMET

1шт.

4

1986464

FUNNEL

FRAME, commutator end, includes ref. no. 37

1шт.

1891928

WICK

WICK, commutator end

1шт.

5

1968396

SCREW

SCREW, pole shoe

4шт.

6

1987049

PIN

PIN, plunger attach to shift lever

1шт.

7

1114524

SWITCH

SWITCH ASSY, solenoid

1шт.

8

1914842

WASHER

WASHER, commutator end space

1шт.

9

1852880

BRUSH

BRUSH

4шт.

10

1986019

SPRING

SPRING, brush

2шт.

11

1876359

HOLDER

HOLDER, ground brush

2шт.

12

1800091

HOLDER, insulated brush

2шт.

13

274875

SHAFT

SPARE PART SCREW, brush attaching

4шт.

14

1876458

SUPPORT

PACKAGE, brush holder support

2шт.

15

1876361

CABLE

LEAD, brush ground

2шт.

16

1986468

BEARING

PLATE, center bearing

1шт.

17

1877345

DRIVE

DRIVE ASSY, motor

1шт.

17

87421540

REMAN-STARTER DRIVE

385 INTERNATIONAL DIESEL TRACTOR (NORTH AMERICA), Drive Assy (1/84-12/90), Reman for New PN 1877345

1шт.

17

87421541

CORE-STARTER DRIVE

Return Part Number

1шт.

18

1986470

WASHER

SPARE PART WASHER, brake

1шт.

19

1986743

HEAD

HOUSING, drive, includes ref. no. 20

1шт.

1986466

WICK

WICK, drive end

1шт.

20

1862383

BUSHING

BUSHING, drive end

1шт.

21

1951567

LEVER

LEVER, shift

1шт.

22

1932197

SCREW

STUD, shift lever

1шт.

23

1978281

SPRING

SPRING, plunger return

1шт.

24

1978297

PLUNGER

PLUNGER, solenoid switch

1шт.

25

9421424

LOCK WASHER

WASHER, shift lever stud

1шт.

26

1964410

COLLAR

SPARE PART WASHER, drive end thrust

1шт.

27

1928021

COLLAR

COLLAR, drive end pinion stop

1шт.

28

1928022

SNAP RING

RING, drive end pinion stop retainer

1шт.

29

1893453

BOLT

SPARE PART BOLT, thru

2шт.

30

1894023

BUSHING

BUSHING, center bearing

1шт.

31

1972786

SCREW

SCREW & WASHER, center brg

2шт.

32

9635082

NUT,5/16" - 18, Gr 5

NUT, , Shift lever stud 5/16"-18, G5

1шт.

33

132255

SPARE PART SCREW, switch attach Slotted Fil Hd, 1/4"-20 x 1/2"

2шт.

9421423

WASHER

LOCK WASHER, switch attach

2шт.

34

1952427

GASKET

GASKET

1шт.

35

274875

SHAFT

SPARE PART SCREW, brush holder support

4шт.

36

1978337

CONTACT

SPARE PART CONTACT ASSY, switch

1шт.

37

1891927

BUSHING

BUSHING, commutator end

1шт.
