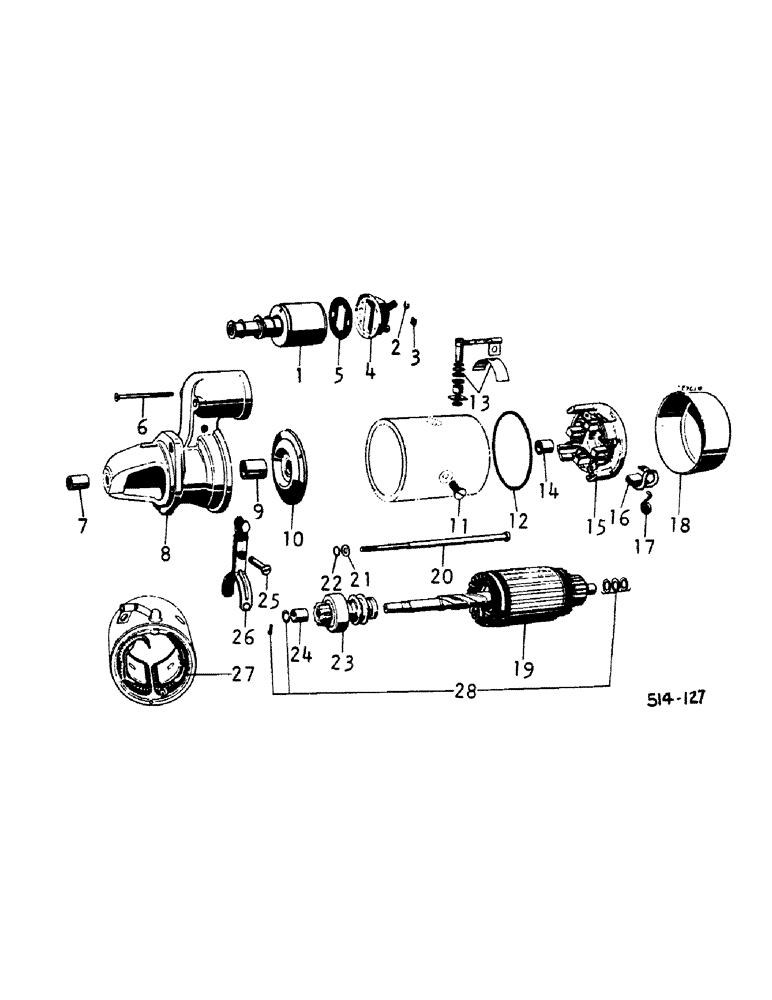

Запчасти Case IH 385 (08-04) - ELECTRICAL, CRANKING MOTOR, BOSCH (06) - ELECTRICAL

529965R93

STARTING MOTOR

STARTER MOTOR, Bosch 4PS, Bosch no. 00-001-362-310 replaces no. 00-001-367-042

1шт.

87297312

REMAN-STARTER

Starter; For N.A. only

1шт.

87297313

CORE-STARTER

Return number - For N.A. only

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

BOLT, 3/8-16 x 1-1/4 pln type 5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

537143R1

TERMINAL CONNECTOR,Male

TERMINAL, Male

1шт.

1

3078963R1

SOLENOID SWITCH

SWITCH, solenoid

1шт.

2

NSS

NOT SOLD SEPARAT

WASHER, relay cover

2шт.

3

3132763R1

TERMINAL CONNECTOR

PLATE, relay cover

4шт.

4

NSS

NOT SOLD SEPARAT

COVER, relay

1шт.

931342R1

SCREW,Slotted Cheese, M4 x 0.7 x 6mm, Cl 8.8

SCREW, relay cover

1шт.

100016

NUT,M10 x 1.5, Cl 8

NUT, , Relay Cover M10, Cl 8

2шт.

934075R1

LOCK WASHER,M10

LOCK WASHER, , Relay cover M10

1шт.

5

NSS

NOT SOLD SEPARAT

RING, packing relay cover

1шт.

6

3078974R1

SCREW

SCREW, switch

3шт.

7

3055738R1

BUSHING

BUSHING, bearing

1шт.

8

3129633R1

HOUSING

HOUSING, drive end

1шт.

9

3078967R1

BUSHING

BUSHING, bearing

1шт.

10

3079253R1

BALL BEARING

BEARING, intermediate

1шт.

11

3129639R1

SCREW

SCREW, retainer

4шт.

12

(Not used this application)

1шт.

13

3079173R91

KIT

SET, terminal parts

1шт.

14

3079170R1

BUSHING

BUSHING, commutator end

1шт.

15

3129632R91

END ASSY.

FRAME ASSY, commutator end

1шт.

16

3079359R1

KIT

SET, brush

1шт.

3079174R1

HOLDER

HOLDER, brush

1шт.

17

3079420R1

SPRING

SPRING, brush

4шт.

18

3079177R1

CAP

COVER, end

1шт.

3079426R1

SCREW

SCREW

2шт.

19

3079252R1

ARMATURE

ARMATURE

1шт.

20

3079172R1

STUD

STUD, thru

2шт.

3079176R1

WASHER

WASHER

2шт.

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

NUT, M6 znd class 8

2шт.

21

(Not used this application)

1шт.

22

(Not used this application)

1шт.

23

3129631R1

DRIVE ASSY.

DRIVE ASSY

1шт.

24

3079254R1

BUSHING

BUSHING, drive assy

1шт.

25

3079251R1

BOLT

SCREW, lever

1шт.

26

3078965R1

LEVER

LEVER, engaging

1шт.

933983R1

LOCK WASHER,M6

WASHER, lock

1шт.

43362

NUT,M8 x 1.25, Cl 10

NUT, M8, Cl 10

1шт.

27

3079356R1

COIL

COIL, field

1шт.

28

(Not used this application)

1шт.
