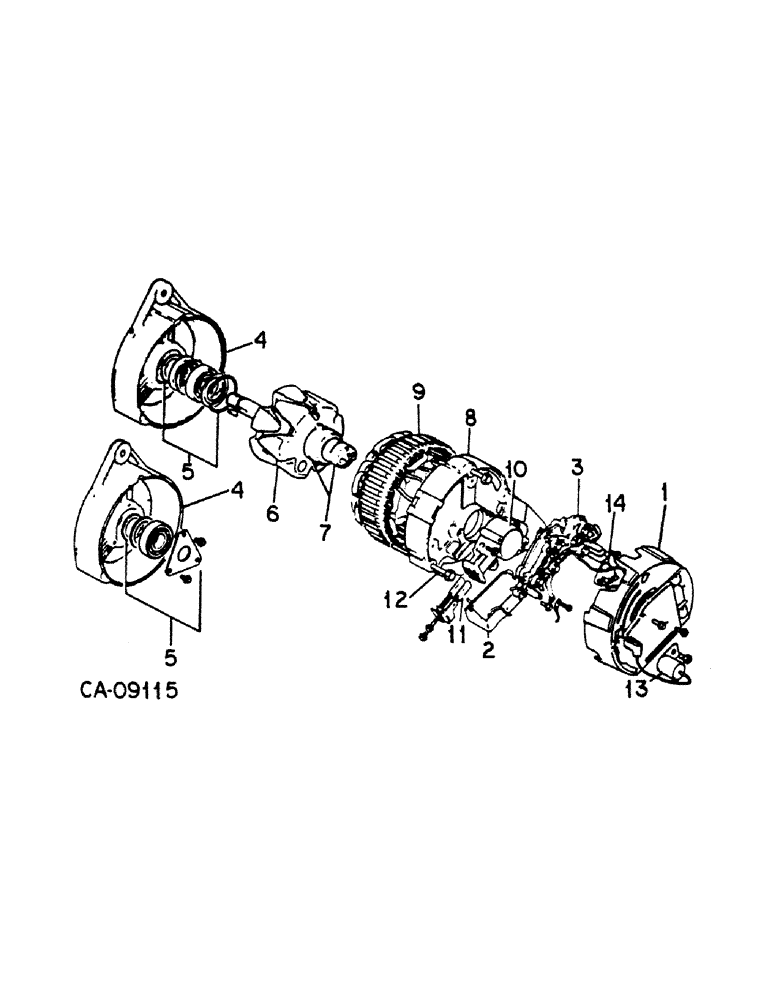

Запчасти Case IH 385 (08-02) - ELECTRICAL, ALTERNATOR, LUCAS A115-45 (06) - ELECTRICAL

245531C91

ALTERNATOR

ALTERNATOR ASSY, Lucas 45 amp, w/fan & pulley, Lucas no. 54206079 service parts are

1шт.

92293C1R

REMAN-ALTERNATOR

Reman For New PN 245531C91

1шт.

92293C1C

CORE-ALTERNATOR

Return Number

1шт.

1

245535C1

COVER

COVER

1шт.

2

245536C1

REGULATOR

REGULATOR

1шт.

3

245537C1

RECTIFIER

RECTIFIER

1шт.

4

3116089R91

BRACKET

BRACKER, drive end

1шт.

5

3116096R91

BEARING ASSY

KIT, drive end bearing

1шт.

6

245540C1

ROTOR ASSY.

ROTOR ASSY

1шт.

7

245541C1

WHEEL BEARING KIT

KIT, bearing & slip ring

1шт.

245542C1

RING

RING, slip

2шт.

8

245543C1

BRACKET

BRACKET, slip ring end

1шт.

9

245544C1

STATOR

STATOR

1шт.

10

245545C1

BRUSH HOLDER

HOLDER, BRUSH BOX, brush

1шт.

11

245546C1

BRUSH SET

BRUSH SET

1шт.

12

245547C1

BOLT

SPARE PART BOLT, fixing

3шт.

13

(Not used this application)

1шт.

14

245886C1

RECTIFIER

RECTIFIER, surge protection

1шт.

245548C1

PACKAGE

KIT, sundry parts

1шт.

245549C1

PACKAGE

KIT, screw

1шт.

245550C1

PACKAGE

KIT, spacer

1шт.

245533C1

FAN

FAN, alternator

1шт.

245534C1

PULLEY

PULLEY

1шт.
