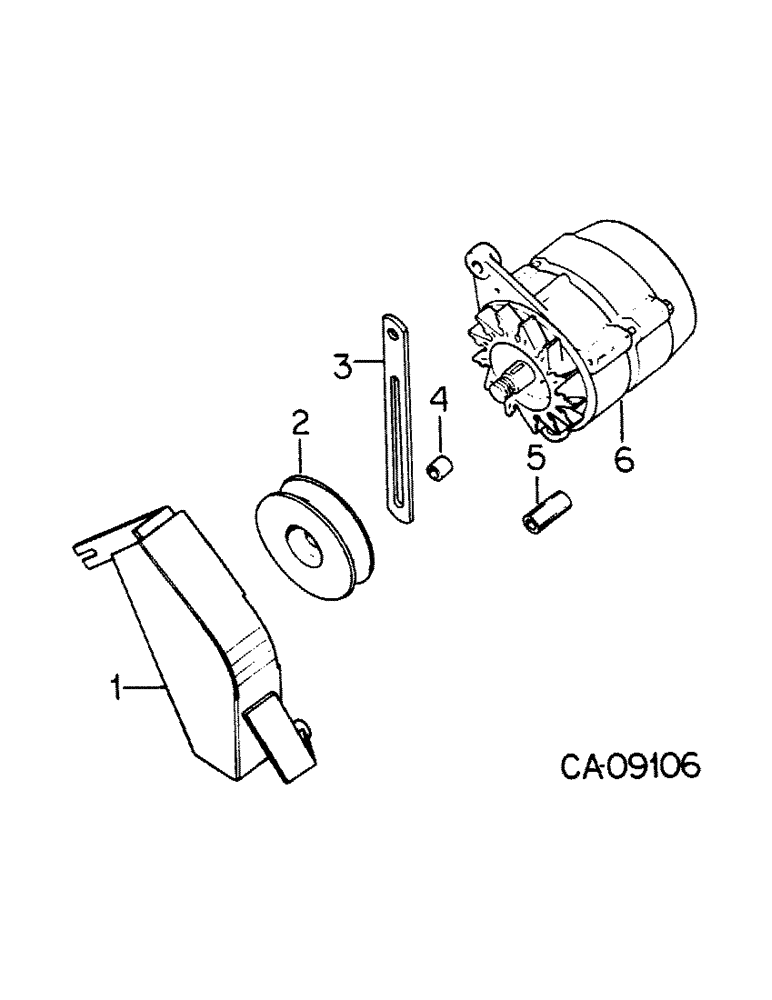

Запчасти Case IH 385 (08-01) - ELECTRICAL, ALTERNATOR AND CONNECTIONS (06) - ELECTRICAL

1

3129852R5

SHIELD

SHIELD, alternator

1шт.

413-576

BOLT,Hex, 5/16" - 18 x 4-3/4", Gr 5

BOLT, 5/16 x 4-3/4 pln class 5

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

2

245534C1

PULLEY

PULLEY SET, alternator includes washer

1шт.

245534C1 has a 15mm bore and 1970879C1 has a 17mm bore.

1шт.

3

3113336R1

BRACE

BRACE, alternator

1шт.

930108R1

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

BOLT, M8 x 20 pln class 8.8

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

4

190123C1

SPACER,1/2" Tube x 1"

SPACER, 1/2 x 1.000 tube

1шт.

186273

BOLT,Hex, 5/16" - 18 x 4 1/4", Gr 5

BOLT, 5/16 x 4-1/4 pln type 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

5

3113678R1

SPACER

SPACER, alternator mounting use w/3129852R4 shield

1шт.

6

245531C91

ALTERNATOR

ALTERNATOR ASSY, Lucas A115-45, w/fan & pulley, lucas no. 54206079, replaces 245538C91 less fan & pulley, for components see list of parts under details of alternator

1шт.

6

92293C1R

REMAN-ALTERNATOR

Reman For New PN 245531C91

1шт.

6

92293C1C

CORE-ALTERNATOR

Return Number

1шт.

413-576

BOLT,Hex, 5/16" - 18 x 4-3/4", Gr 5

BOLT, 5/16 x 4-3/4 pln class 5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.
