Запчасти Case IH 385 (00J17) - SWINGING DRAWBAR (12) - FRAME

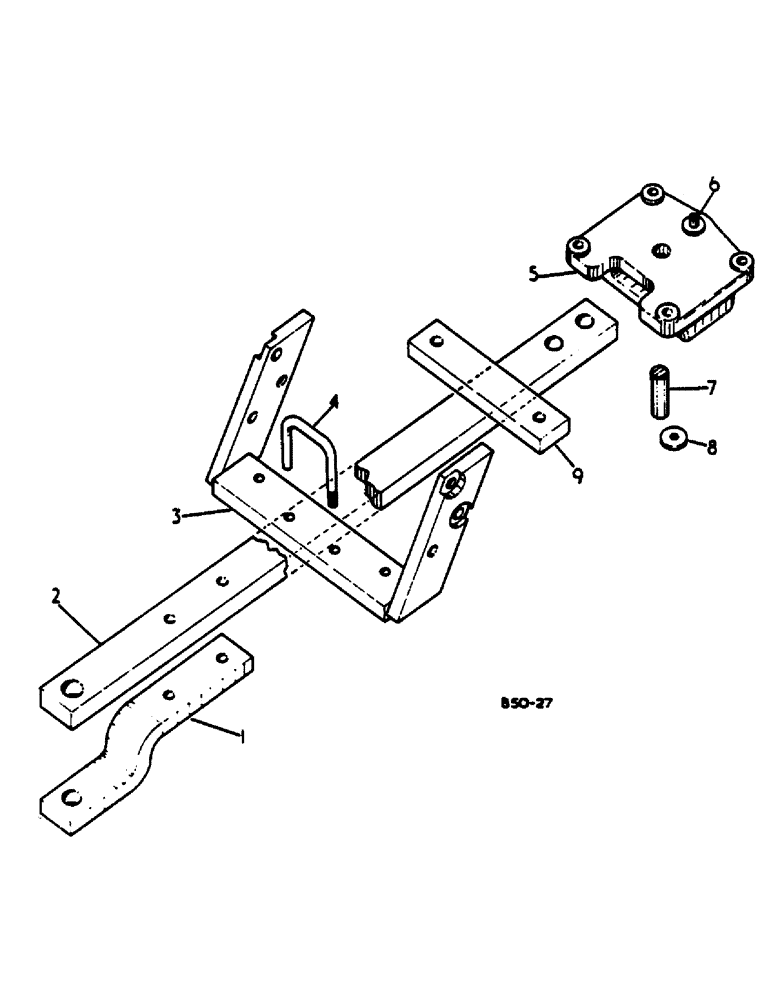

Схема запчастей Case IH 385 - (00J17) - SWINGING DRAWBAR (12) - FRAME
1
5
2
6
8
7
4
3
9

Артикул

Название

Примечание

Количество

ATTACHMENT, SWINGING DRAWBAR

1шт.

1

3064333R1

DRAWBAR CLAMP

1шт.

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

2шт.

425-1010

NUT,5/8"-11, G5

2шт.

2

406467R2

DRAWBAR, SWINGING

1шт.

3

3129483R2

SUPPORT

SWINGING

1шт.

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

5/8-11 X 1-3/4 HEX HD CAP

4шт.

271558

HOOD,Hex, 5/8" - 11 x 1 1/2", Gr 5

5/8-11 X 1-1/2 HEX HD CAP - FOR USE WITH SUPPORT ASSY 3121223R2

4шт.

4

406470R1

AXLE PIN

DRAWBAR STOP

1шт.

19798R1

LOCK NUT,9/16"-12, GB

W/NYLON INSERT 9/16-12 HEX

1шт.

530408R1

NUT

W/NYLON INSERT 9/16-12 HEX - OPTIONAL

1шт.

5

406468R41

SUPPORT

DRAWBAR PIVOT

1шт.

326-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

4шт.

3061325R1

WASHER

HARDENED, 385 485, Start Serial: 7373

4шт.

3061325R1

WASHER

HARDENED, 248, Start Serial: 859

4шт.

413-826

BOLT,Hex, 1/2" - 13 x 1-5/8", Gr 5

1/2-13 X 1-5/8 HEX HD CAP

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

458, Serial Range: -7372

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

248, Serial Range: -858

4шт.

6

37-1820

DOWEL,1/2" x 1 1/4"

PIN

1шт.

7

406469R1

PIN

DRAWBAR STOP, 485, Serial Range: -7372

1шт.

7

406469R1

PIN

DRAWBAR STOP, 248, Serial Range: -858

1шт.

7

1502366C2

PIVOT PIN

DRAWBAR STOP, 385 485, Start Serial: 7373

1шт.

7

1502366C2

PIVOT PIN

DRAWBAR STOP, 248, Start Serial: 859

1шт.

8

49139D

WASHER,10.32mm ID x 38.1mm OD x 5mm Thk

LOCK DRAWBAR PIN

1шт.

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

1шт.

492-11038

LOCK WASHER,3/8"

1шт.

9

3121227R1

BAR

DRAWBAR BUMPER

1шт.

7701873

BOLT,Hex, 5/8" - 11 x 1 1/4", Gr 5

5/8-11 X 1-1/4 HEX HD CAP

2шт.

Выбрано товаров: 28
